Summary of Contents for Samcon ExCam IPQ6055

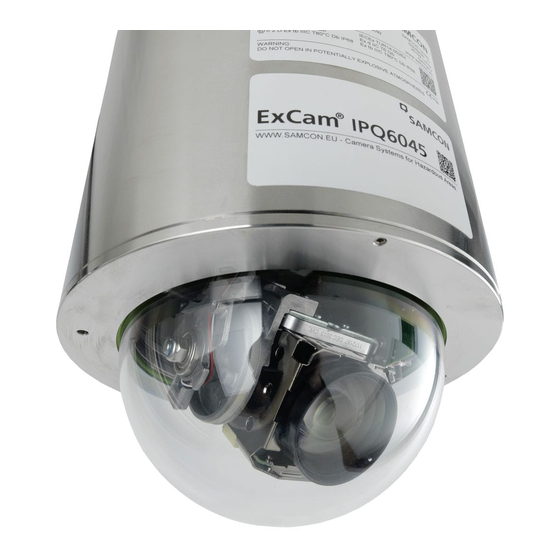

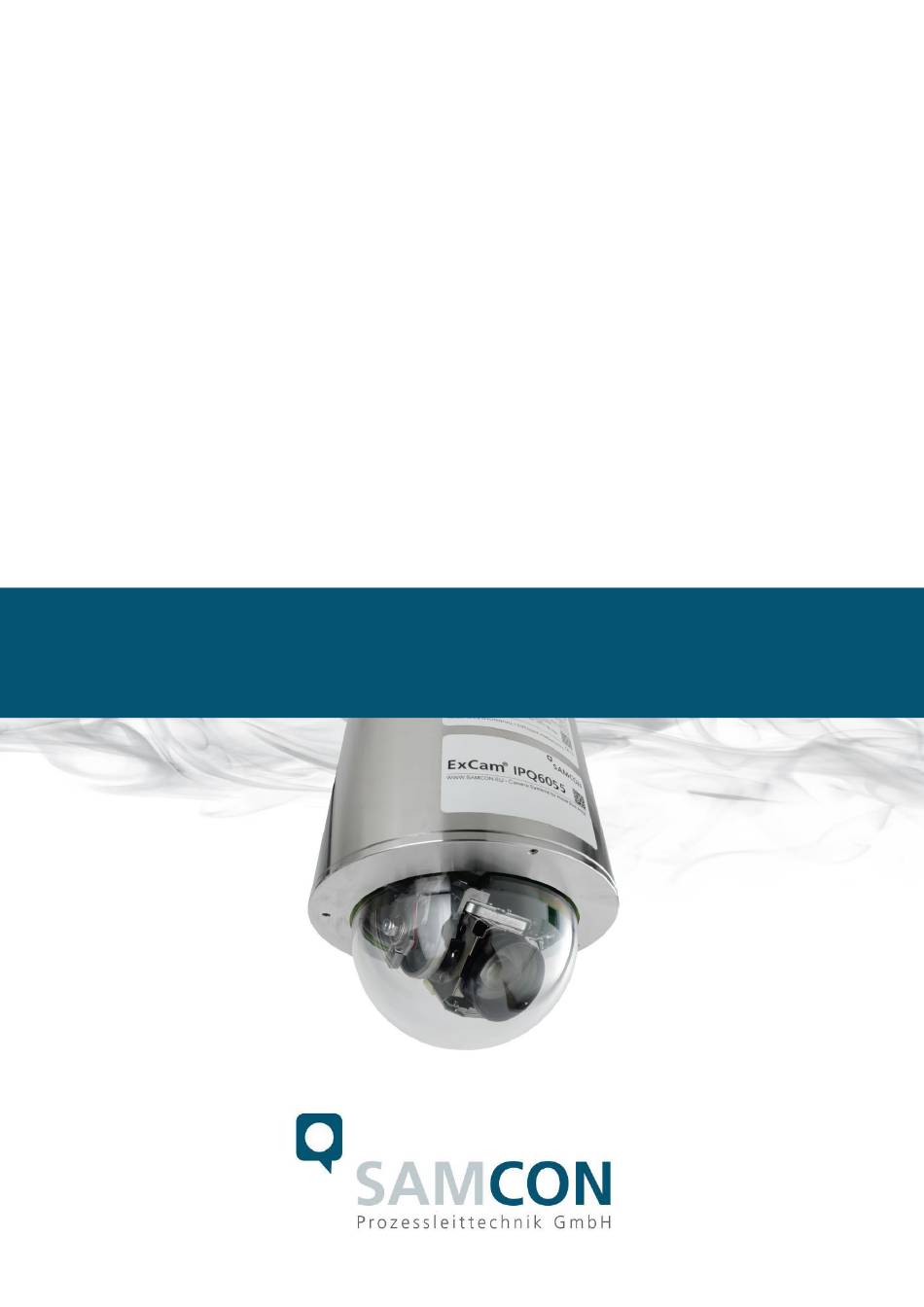

- Page 1 IPQ6055 ExCam User manual...
-
Page 2: Table Of Contents
Content Introduction ......................4 Technical Data ......................5 Parameters of the explosion protection ............... 5 Electrical parameters of the camera ..............5 Electrical parameters of the heating (optional) ............ 6 System Cable SKDxx ..................6 Supply cable (optional) ..................6 Video technical data .................... - Page 3 Table of Figures Table 4.1 – Model key ....................... 8 Figure 5.1 – ExCam IPQ6055 potential equalization ............11 Table 5.1 – Potential equilization ..................11 Figure 5.2 – ExCam IPQ6055 T08-TNXCD-C-XXX-K-N ..........12 Figure 5.3 – ExCam IPQ6055 T08-TNXCD--XXX-P-N ............ 12 Figure 5.4 –...
-
Page 4: Introduction
Ex zones 1, 2, 21 and 22 including the gas group IIC and the dust group IIIC. It is al- so certified according to EAC-Ex. During the design of the ExCam IPQ6055, the main focus was put on security as well as on mechanical precision and high-quality stainless steel. In addition, the modular design allows, for example, a connection via FOC. -
Page 5: Technical Data
Technical Data Parameters of the explosion protection Identification marks according to directive 2014/34/EU: II 2G (Zone 1 and 2) II 2D (Zone 21 and 22) Explosion protection (gas): Ex d IIC T6 Gb or Ex d IIC T5 Gb or Ex d IIB T6 Gb or Ex d IIB T5 Gb Explosion protection (dust):... -
Page 6: Electrical Parameters Of The Heating (Optional)
Electrical parameters of the heating (optional) 12…30 V DC Power supply: Reference power: 24 V DC Maximum power input: 40W @-30°C 60W @-50°C 6000mA – T at 3G 1.5 mm Suggested fuse supply cable: System Cable SKDxx Description: Data transfer and power supply of the camera module (DIN EN 60079-14 conform) Color of sheath: Green (GN), similar RAL6018... -
Page 7: Video Technical Data
Video technical data For details regarding video technical data of the installed AXIS Q6055 dome camera, ® please refer to the AXIS product documentation: http://www.axis.com/us/en/products/axis-q6055 Other technical data Permitted ambient 0 °C … +50 °C (type N) temperature (MTBF) -30 °C … +50 °C (type L) -50 °C …... -
Page 8: Safety Guidelines
Safety guidelines Please observe the safety guidelines indicated in the EX installation manual of the T08 ExCam series! Illustration of the model key The following model options are currently available for the ExCam IPQ6055: Model options Ex product name Type... - Page 9 Terminal block execution (standard) SKDxx: 8 x single pin twisted pair (solid conductor 0.64 mm , about 5 mm stripped), 1x shield (Cu braid 2.5 mm , ferules) („Ölflex 440p2 x 2.5 mm2 Cu litz wire with ferule, sheath Supply: about 10 cm stripped and furnished with bend relief/shrink tubing Plug termination (optional)
-
Page 10: Commissioning
Commissioning Attention! Please observe the national regulations regarding security, installa- tion, and accident prevention (e.g. DIN EN 60079-14) as well as the safety guidelines described in this user manual and the EX installation manual! Attention! Please observe the installation and commissioning advices described in the Ex installation manual! Step 1: Installation ®... -
Page 11: Potential Equalization
Cu conductors or furnished with a plug. 5.2.1 Potential equalization Figure 5.1 – ExCam IPQ6055 potential equalization The potential equalization / earthing of the camera housing is mandatory in order to avoid electrostatic charging and hence spark generation. The screw terminal at the lower right hand side of the housing’s rear side is intended for that purpose (q.v. -
Page 12: Connection And Protection
5.2.2 Connection and protection Figure 5.2 – ExCam IPQ6055 T08-TNXCD-C-XXX-K-N Figure 5.3 – ExCam IPQ6055 T08-TNXCD--XXX-P-N Doc.-ID: 180409-PT08BA-SS-ExCam IPQ6055_en_rev.01.docx, page 12 of 24... -
Page 13: Figure 5.4 - Excam Ipq6055 T08-Tnxcd-C-Xxx-K-L(L)
Figure 5.4 – ExCam IPQ6055 T08-TNXCD-C-XXX-K-L(L) Figure 5.5 – ExCam IPQ6055 T08-TNXCD-C-XXX-P-L(L) Doc.-ID: 180409-PT08BA-SS-ExCam IPQ6055_en_rev.01.docx, page 13 of 24... - Page 14 5.2). Generally, the pins of the same color code are connected. Only use SAMCON approved clamps! It is allowed to separate the ExCam IPQ6055 from the network and to switch it on again while in operation or in interaction with a visualization, video management system or while accessing the web inteface (hot plugging).
-
Page 15: Figure 5.6 - Rj45 Contact Assignment
GND) Figure 5.7 – SKDxx Pin assignment In case the ExCam IPQ6055 is supplied via a PoE capable device, an additional safe- guarding of the power supply is not necessary. The power supply is executed by the PoE network device via an electronic with intelligent set-up. The camera as well as the con- nection is permanently monitored in order to avoid any failure or defects in case of a short-circuit fault. -
Page 16: Tests Prior To Switching On Voltage
If the Ex CCTV application calls for a separate 48 V DC supply voltage, the wire/pin as- signment has to reflect Mode B operation mode (q.v. table 5.2)! If the camera is equipped with a heating (type L or type LL), a second power supply with a separate supply protection at the „L+“... -
Page 17: Optional Steps
Optional steps 5.3.1 Work preparation Attention! Please carry out any preoperational work carefully and in accordance with the applicable regulations Attention: Note: Depending on the zone classification, it might be necessary to obtain a work permit/clearance! When adjusting the camera settings potentially explosive atmosphere must be avoided by any means! To allow the camera delivering the best picture quality, please consider the lighting conditions, the object distance and size, the angle of view as well as the minimum object... -
Page 18: Opening The Pressure-Resistant Housing
The opening of the TNXCD housing requires special tools and it is not intended that cus- tomer open the housing. In case that due to an unforeseeable event the housing has to be opened, inform SAMCON Support (support@samcon.eu) prior to executing any measures. -
Page 19: Network Access And Visualization
Axis user manual, also available at the following link: http://www.axis.com/us/en/products/axis-q6055 At delivery, the ExCam IPQ6055 is set to the applicable net frequency (50Hz or 60Hz). If the camera is used at a location with a differing net frequency, a flickering of the picture might be noticeable, particularly in surroundings with fluorescent tubes. -
Page 20: Password / Identification
“AXIS IP Utility” tool is executed. For example, the ExCam IPQ6055 network identification is „Axis Q6055“ (q.v. figure 6.1). MAC address and serial number are also determined and displayed so that a non-ambiguous identifica- tion is possible. -
Page 21: Maintenance / Servicing / Alterations
Repairs and Maintenance Repairs must only be carried out with original parts of SAMCON Prozessleittechnik GmbH. Damaged pressure-resistant housings have to be replaced completely. If in doubt, return the applicable part to SAMCON Prozessleittechnik GmbH. -
Page 22: Drawings & 3D Models
Drawings & 3D models All drawings, 3D models, certificate and more is available in the download area of the product page on our homepage: http://www.samcon.eu/en/products/network/excam-ipq6055/ In case of missing technical information, please feel free to contact us at any time at: support@samcon.eu... -
Page 23: Notes
Notes Doc.-ID: 180409-PT08BA-SS-ExCam IPQ6055_en_rev.01.docx, page 23 of 24... - Page 24 Schillerstrasse 17, 35102 Lohra-Altenvers www.samcon.eu, info@samcon.eu fon: +49 6426 9231-0, fax: - 31 Doc.-ID: 180409-PT08BA-SS-ExCam IPQ6055_en_rev.01.docx, page 24 of 24...
