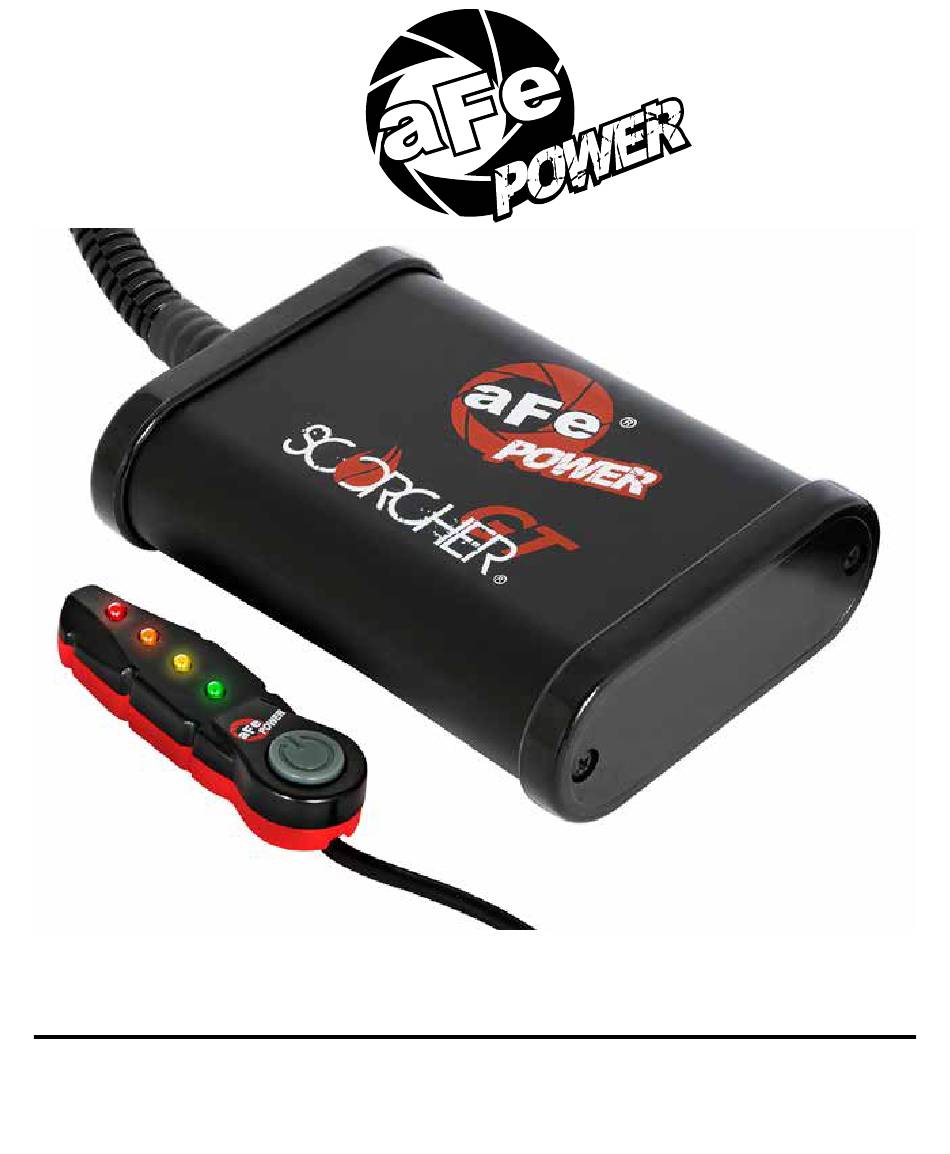

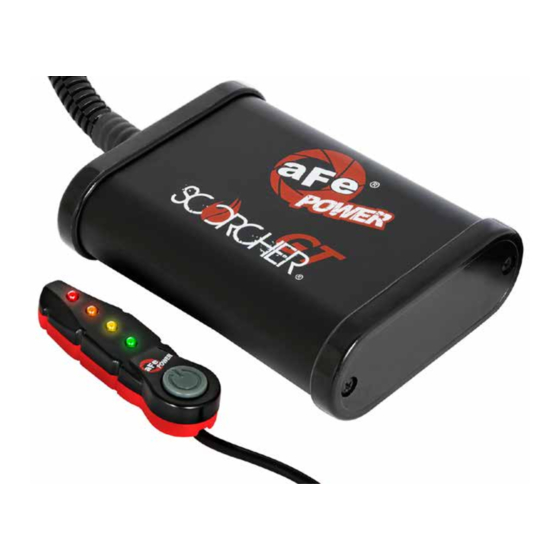

- Page 1 ® advanced FLOW engineering Instruction Manual P/N: 77-46317 Make: BMW Model: M2 Year: 2016-2018 Engine: L6-3.0L (t) N55...
- Page 2 ® • Please read the entire instruction manual before proceeding. • Ensure all components listed are present. • If you are missing any of the components, call customer support at 951-493-7100. • Ensure you have all necessary tools before proceeding. •...
- Page 3 aFepower.com Page 3...
- Page 4 ® REMOVAL Figure A Refer to Figure A for Step 1. Step 1: Before installing your aFe module, you will have to place your vehicles ECU in sleep mode. In order to do this you will need to do the following: - If the engine is cold, open the hood, close the doors lock the car and wait 30 seconds.
- Page 5 REMOVAL Figure B Refer to Figure B for Step 2. Step 2: Remove the engine cover and Locate the TMAP 1 and MAP sensors 2 . The TMAP sensor is located driver side on chargepipe, the MAP sensor is located on top of the intake manifold. aFepower.com Page 5...
- Page 6 ® INSTALL Figure C Refer to Figure C for Steps 3-4. Step 3: Disconnect the TMAP sensor. Step 4: Locate the TMAP sensor jumper harness on the aFe module. This is the shorter harness with 4 wires going to each connector. Plug the female connector of the module to the stock TMAP sensor, then the male connector of the module to the male connector of the engine harness.
- Page 7 INSTALL Figure D Refer to Figures D for Steps 5-6. Step 5: Locate and disconnect the MAP sensor. Step 6: Locate the MAP sensor jumper harness on the aFe Module. This is the longer harness with 3 wires going to each connectors. Plug the female connector of the module to the stock MAP sensor, then take the male connector of the module and connect to the female connector of the engine harness.
- Page 8 ® INSTALL Figure E Refer to Figure E for Steps 7-8. Step 7: Carefully rout the switch cable behind steering wheel cover. Step 8: Mount the Switch on an open, flat surface. Page 8...
- Page 9 REMOVAL Figure F Refer to Figure F for Steps 9-11. Step 9: Remove the two 10mm nuts holding the foot trim panel. Step 10: Route the switch cable through firewall and into the engine bay. Follow the main harness through the grommet into the firewall. Plug the end of the cable to the module. Step 11: Re-install foot trim panel.
- Page 10 ® INSTALL Figure G Refer to Figure G for Steps 12-13. Step 12: Mount the module in a safe location, using the supplied Velcro strip. Then, secure the wires and module away from any extreme heat and moving parts, with the provided ties. Step 13: Re-install the engine cover.
- Page 11 • Green LED: Stock • Yellow LED: Sport • Orange LED: Sport+ • Red LED: Race Use the grey button to select the desired setting. Power adjustments can be done at any moment. Thank you for choosing aFe POWER! aFepower.com Page 11...
- Page 12 ® advanced FLOW engineering, inc. 252 Granite Street Corona, CA 92879 TEL: 951.493.7100 TECH: 951.493.7134 E-Mail:Tech@aFepower.com P/N: 06-80911...
