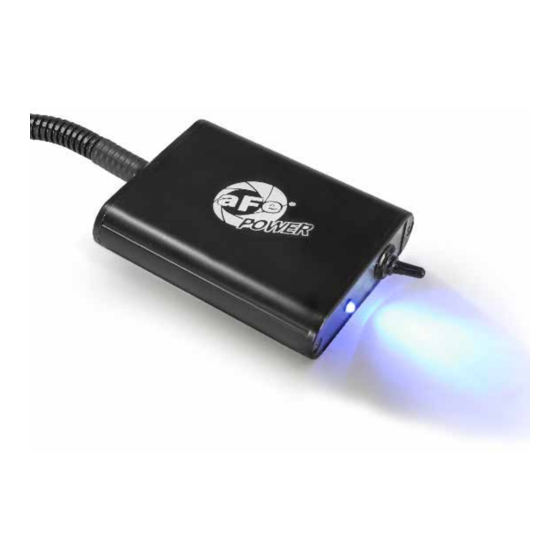

advanced FLOW engineering
Instruction Manual
P/N: 77-46306
Make: BMW Model: M3/M4 (F80/82/83) Year: 2015-2016 Engine: L6-3.0L (tt) S55

Advertisement

loading
Need help?

Need help?

Do you have a question about the 77-46306 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for aFe Power 77-46306

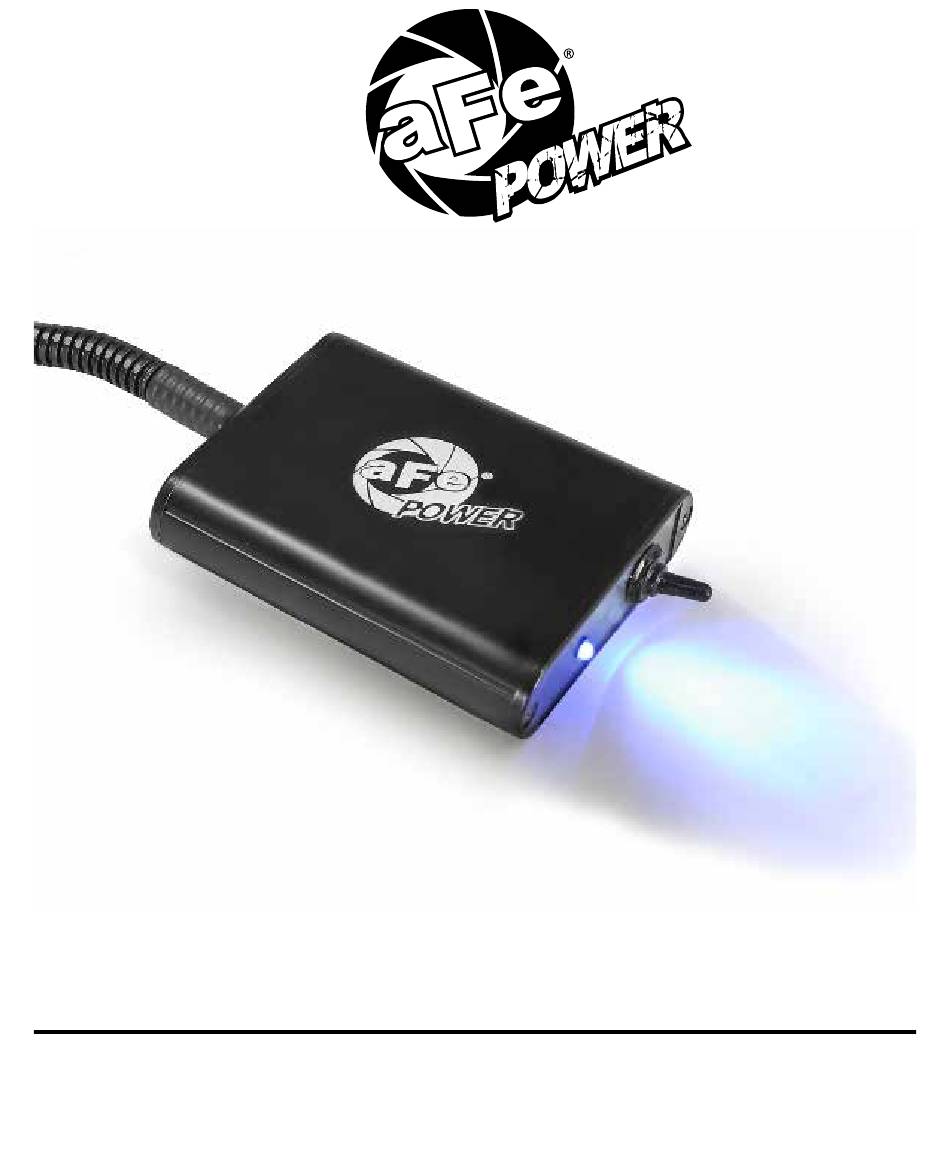

  • Page 1 FLOW engineering Instruction Manual P/N: 77-46306 Make: BMW Model: M3/M4 (F80/82/83) Year: 2015-2016 Engine: L6-3.0L (tt) S55...
  • Page 2 • Please read the entire instruction manual before proceeding. • Ensure all components listed are present. • If you are missing any of the components, call customer support at 951-493-7100. • Ensure you have all necessary tools before proceeding. • Do not attempt to work on your vehicle when the engine is hot. •...
  • Page 3: Installation

    Installation Step 1: Before installing the aFe module, you will have to place the vehicle ECU in sleep mode. In order to place the vehicles ECU insleep mode you will need to do the following: 1) If the engine is cold, open the hood, close the doors, lock the car and wait 30 seconds. 2) If the engine is warm, open the hood, close the doors, lock the car and wait 20 minutes.
  • Page 4 REMOVAL Figure A Refer to Figure A for steps 2-4 Step 2: Remove the push clip 1 on the driver side windshield cover. Step 3: Unlock the three 10mm nuts 2 retaining the windshield cover and remove. Step 4: Remove the two T27 Screws off the top expansion tank and pop off grommet. Page 4...
  • Page 5 REMOVAL TMAP Figure B Refer to Figure B for step 5-7 Step 5: Pass the aFe module harness through frame brace. Step 6: Pop off the trim seal of the frame brace to allow more space. Step 7: Locate the MAP Sensor and TMAP sensor. The MAP sensor is on top of the manifold (under the intercooler).
  • Page 6 INSTALL Figure C Refer to Figures C for steps 7-9 Step 7: Disconnect the MAP sensor harness. (Circled in white.) Step 8: Locate the MAP sensor jumper harness on the aFe module. It is a 4 wire harness with tan, black, yellow and blue colored wires. Step 9: Plug the female connector on to the stock engine harness and the male connector to the MAP sensor as shown in detail picture.
  • Page 7 INSTALL Figure D Refer to Figure D for steps 10-12 Step 10: Disconnect the TMAP sensor. (Circled in white.) Step 11: Located the TMAP sensor jumper harness on your aFe module. Itis a 3 wire harness with purple, black and blue colored wires. Step 12: Plug the female connector on to the stock engine harness and the male connector to the TMAP senor as shown in detail picture.
  • Page 8 INSTALL Figure E Refer to Figure E for steps 13-15 Step 13: Route the aFe module harness then use the supplied cable ties to secure it. Step 14: Using the supplied high temp velcro, find a clean, flat surface and firmly mount the module. Step 15: Re-install the windshield cover back on the expansion tank.
  • Page 9 Adjust the module to the desired setting after installation and when needed but make sure to do it only while the vehicle is in sleep mode. Step 17: Your installation is now complete! Thank you for choosing aFe Power! aFepower.com...
  • Page 10 Air Intake System Exhaust System Twisted Steel Header Axle Back Exhaust System P/N: 52-76305 P/N: 49-36323-C P/N: 48-36313 P/N: 49-36324-C Sprint Booster Carbon Fiber Engine Cover OE Replacement Filter P/N: 30-10238 P/N: 77-16302 P/N: 79-13003 To purchase any of the items above, view airflow charts, dyno graphs, photos, and video please go to aFepower.com. Page 14...
  • Page 11: Warranty

    Warranty General Terms: • aFe warrants their products to be free from manufacturer’s defects due to workmanship and material. • This warranty applies only to the original purchaser of the product and is non-transferrable. • Proof of purchase of the aFe product is required for all warranty claims. •...
  • Page 12 advanced FLOW engineering, inc. 252 Granite Street Corona, CA 92879 TEL: 951.493.7100 • TECH: 951.493.7100 x23 E-Mail:Tech@aFepower.com P/N: 06-80700...
