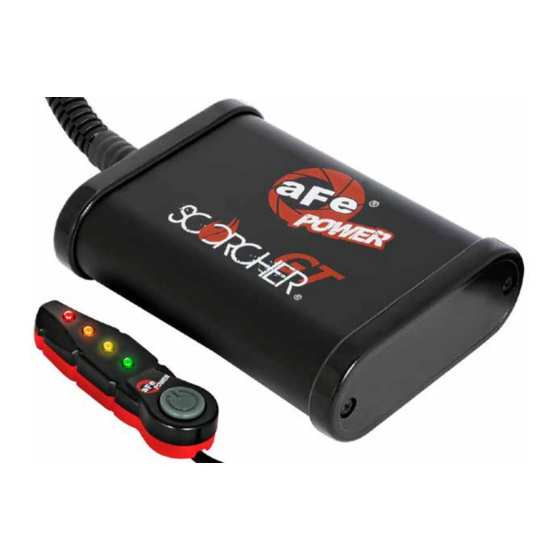

aFe Power 77-46309 Instruction Manual
  1. Manuals
  2. Brands
  3. aFe Power Manuals
  4. Automobile Accessories
  5. 77-46309
  6. Instruction manual

aFe Power 77-46309 Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
advanced FLOW engineering
Instruction Manual
Make: MINI
Make: MINI
Make: MINI
Make: BMW
Note: Includes MINI Convertible & JCW Editions.
P/N: 77-46309
Model: Cooper/S (F55/56/57) Year: 2015-2019 Engine: L4-2.0L (t) B46/B48
Model: Clubman/S (F54)
Model: Countryman S (F60) Year: 2015-2019 Engine: L4-2.0L (t) B46/B48
Model: X1 18i/28i/ix (F48)
®
Year: 2015-2019 Engine: L4-2.0L (t) B46/B48
Year: 2016-2019 Engine: L4-2.0L (t) B46/B48

Advertisement

loading
Need help?

Need help?

Do you have a question about the 77-46309 and is the answer not in the manual?

Questions and answers

Related Manuals for aFe Power 77-46309

Summary of Contents for aFe Power 77-46309

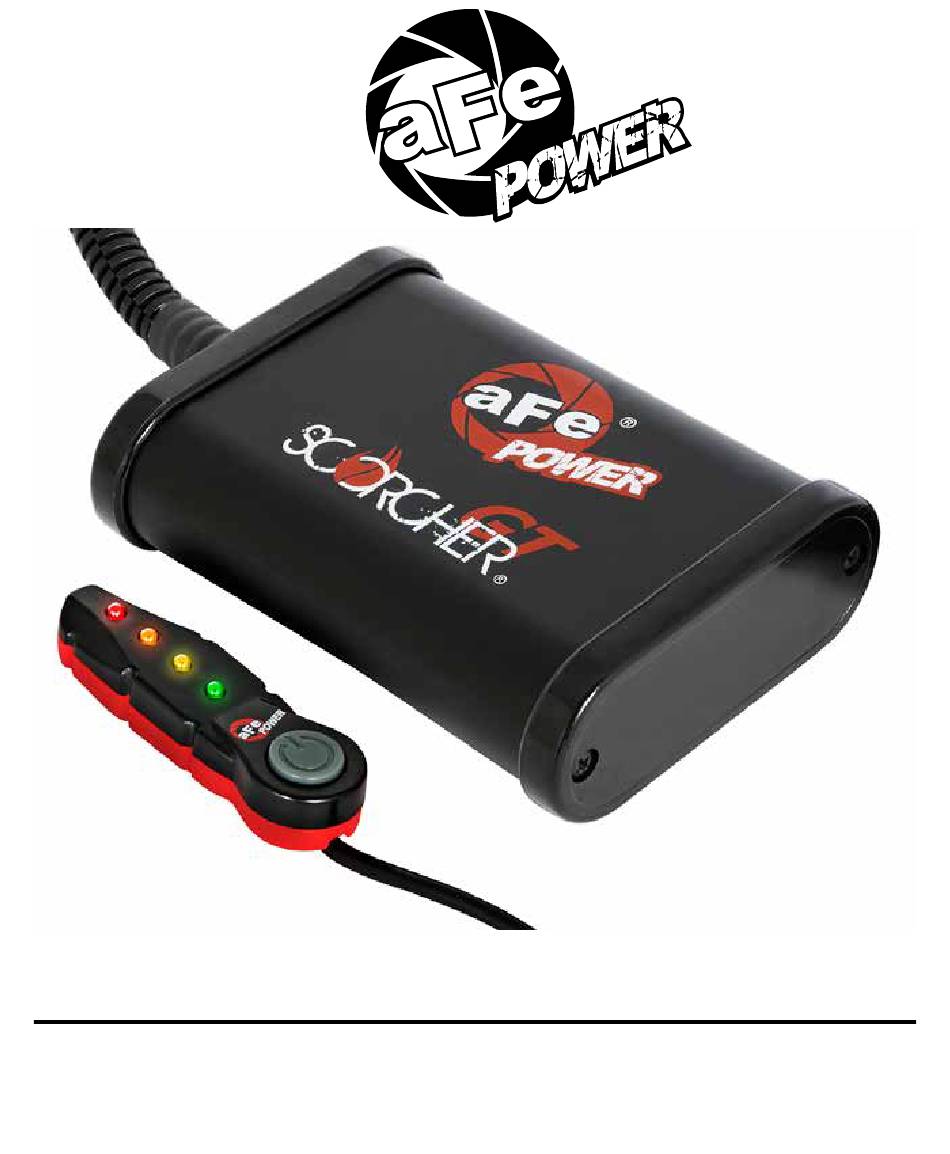

  • Page 1 ® advanced FLOW engineering Instruction Manual P/N: 77-46309 Make: MINI Model: Cooper/S (F55/56/57) Year: 2015-2019 Engine: L4-2.0L (t) B46/B48 Make: MINI Model: Clubman/S (F54) Year: 2015-2019 Engine: L4-2.0L (t) B46/B48 Make: MINI Model: Countryman S (F60) Year: 2015-2019 Engine: L4-2.0L (t) B46/B48...
  • Page 2 ® • Please read the entire instruction manual before proceeding. • Ensure all components listed are present. • If you are missing any of the components, call customer support at 951-493-7185. • Ensure you have all necessary tools before proceeding. •...
  • Page 3 aFepower.com Page 3...
  • Page 4 ® REMOVAL Figure A Refer to Figure A for Step 1. Step 1: Before installing your aFe module, you will have to place your vehicles ECU in sleep mode. In order to do this you will need to do the following: - If the engine is cold, open the hood, close the doors lock the car and wait 30 seconds.
  • Page 5 REMOVAL Figure B Refer to Figure B for Step 2. Step 2: Locate the MAP and TMAP sensors. The MAP sensor is located on top of the intake manifold towards the radiator. The TMAP sensor is located on the charge pipe just before the throttle body, underneath the air scoop.
  • Page 6 ® INSTALL Figure C Refer to Figure C for Steps 3-4. Step 3: Locate and disconnect the MAP sensor, by sliding back and then pressing down on the gray locking clip. Step 4: Locate the MAP sensor jumper harness on the aFe module. The MAP harness will have three wires on the connectors.
  • Page 7 INSTALL Figure D Refer to Figures D for Step 5. Step 5: Remove the air scoop from the airbox by removing the two 10mm bolts, this will allow you to access the TMAP sensor. Page 7 aFepower.com...
  • Page 8 ® INSTALL Figure E Refer to Figure E for Steps 6-7. Step 6: Locate and disconnect the TMAP sensor by sliding back, then pressing down on gray locking clip. Step 7: Locate the TMAP sensor jumper harness on the aFe module. The TMAP harness will have four wires on the connectors.
  • Page 9 REMOVAL Figure F Refer to Figure F for Step 8. Step 8: Remove the windshield trim cover by rotating the two 10mm locking clips, and the other four clips can be rotated with a flathead screwdriver. This will give you access to the firewall to route the cable for the switch.
  • Page 10 ® INSTALL Figure G Refer to Figure G for Steps 9-10. Step 9: Carefully route the switch cable behind steering wheel cover. Step 10: Mount the Switch on an open, flat surface. Page 10...
  • Page 11 INSTALL Figure H Refer to Figure H for Step 11. Step 11: Route the switch cable through the grommet on the firewall and into the engine bay. Plug the end of the cable to the module. Page 11 aFepower.com...
  • Page 12 ® INSTALL Figure I Refer to Figure I for Step 12. Step 12: Mount the module in a safe location, using the supplied Velcro strip. We suggest to mount it on top of the battery. Then, secure the wires and module away from any extreme heat and moving parts, with the provided cable ties.
  • Page 13 INSTALL Figure J Refer to Figure J for Step 13. Step 13: Reinstall the air scoop and windshield trim cover. Page 13 aFepower.com...
  • Page 14 • Green LED: Stock • Yellow LED: Sport • Orange LED: Sport+ • Red LED: Race Use the grey button to select the desired setting. Power adjustments can be done at any moment. Thank you for choosing aFe POWER! Page 14...
  • Page 15 Page left blank intentionally aFepower.com Page 15...
  • Page 16 ® Page left blank intentionally Page 16...
  • Page 17 Page left blank intentionally Page 17 aFepower.com...
  • Page 18 ® OE Replacement Air Filter Cat-Back Exhaust System Cold Air Intake System Air Intake System Cover P/N: 49-36331-B (Blk Tip) P/N: 51-12862 (PDS) P/N: 54-12868-B (Blk) P/N: 30-10256 (P5R) 49-36331-P (Pol Tip) 54-12862 (P5R) 54-12868-C (C/F) 31-10256 (PDS) To purchase any of the items above, view airflow charts, dyno graphs, photos, and video please go to aFepower.com. Page 18...

  • Page 19: Warranty

    Warranty General Terms: • aFe warrants their products to be free from manufacturer’s defects due to workmanship and material. • This warranty applies only to the original purchaser of the product and is non-transferrable. • Proof of purchase of the aFe product is required for all warranty claims. •...
  • Page 20 ® advanced FLOW engineering, inc. 252 Granite Street Corona, CA 92879 TEL: 951.493.7100 TECH: 951.493.7185 E-Mail:Tech@aFepower.com P/N: 06-80916...
