7.2 1U Rack Mounting
This product also can be mounted in a standard 1U rack (up to 8 units can be installed
horizontally). The mounting steps are as follows:

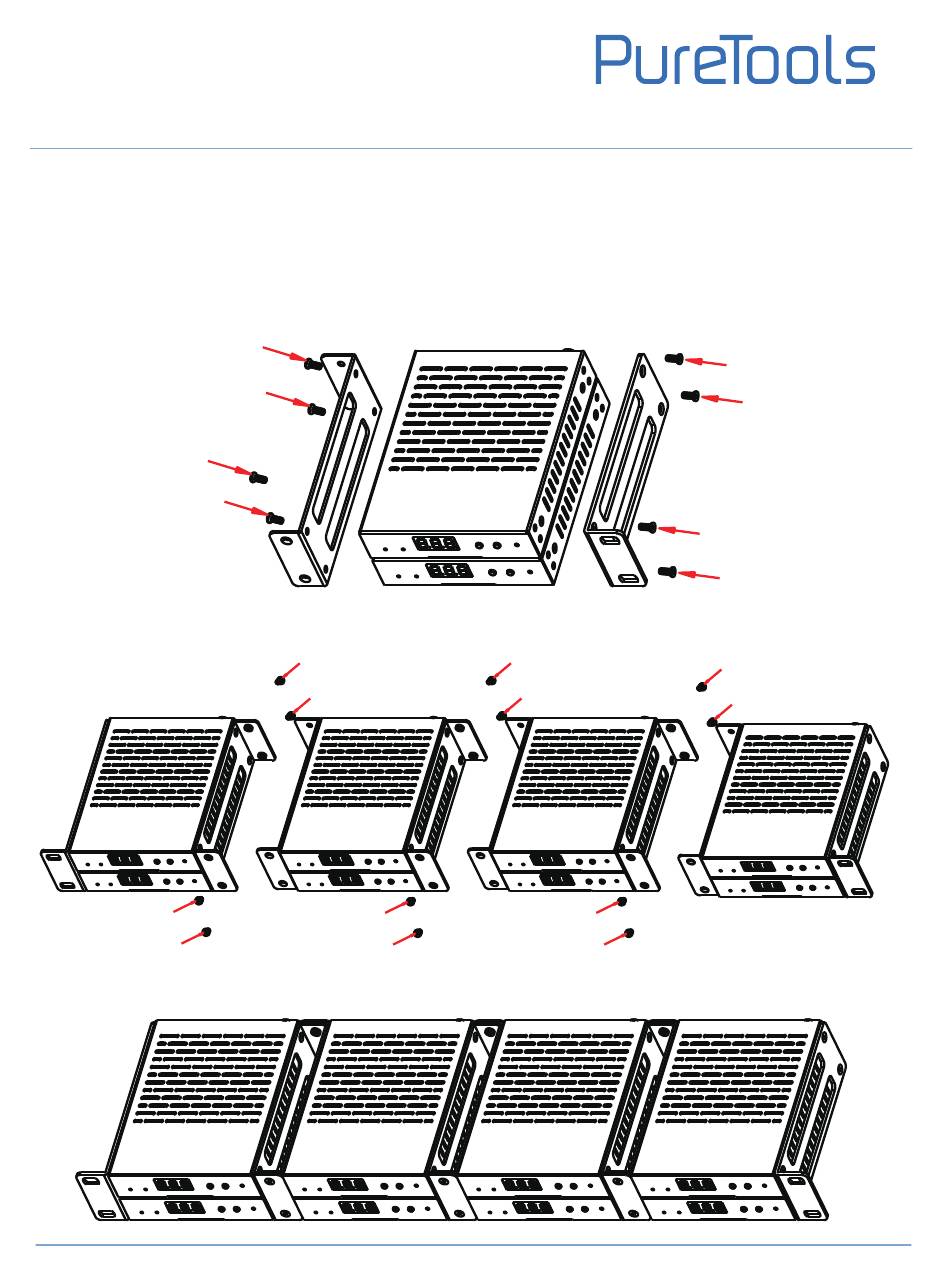

Step 1: Stack two products on top of each other, then use included screws to fix two
1U rack panels on the products, as shown in the figure below:
Step 2: Fix two 1U rack panels on another two stacked products in the same way, then
use screws to fix two 1U rack panels together, as shown in the figure below:
Step 3: Fasten screws between two 1U rack panels, so that eight products are mounted
in a 1U rack, as shown in the figure below:
