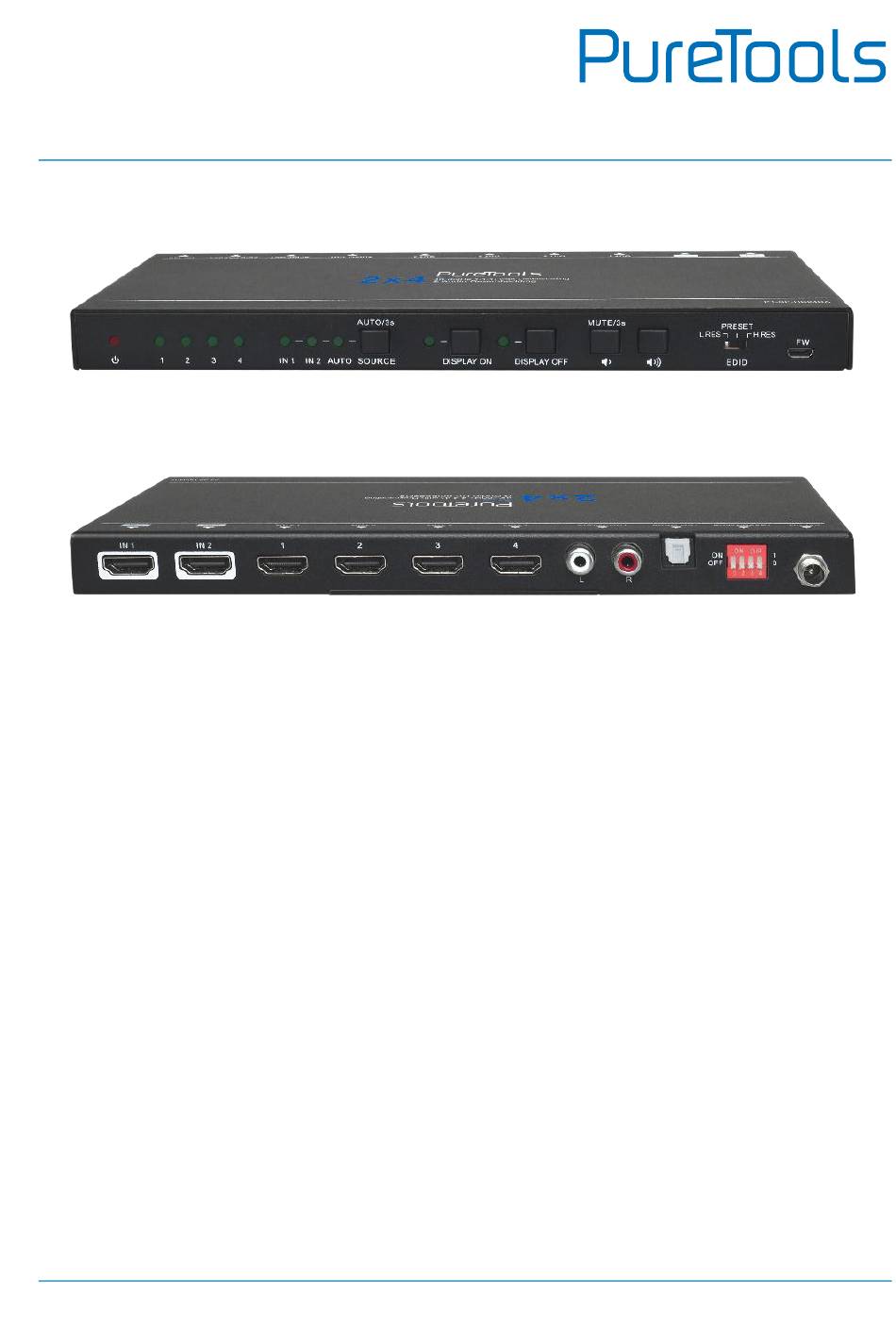

- Page 1 User Manual PT-SP-HD24DA User Manual HDMI Splitter 2x4 4K (60Hz 4:4:4) with Downscaling & Audio De-embedding Model PT-SP-HD24DA Designed in Germany © 2018 PureLink GmbH All rights reserved. V1.0...
- Page 2 User Manual PT-SP-HD24DA Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
- Page 3 PT-SP-HD24DA REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-SP-HD24DA complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-SP-HD24DA complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-SP-HD24DA SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ...
-
Page 5: Table Of Contents
User Manual PT-SP-HD24DA Table of Content 1. Product Introduction ........................6 1.1 Features ..........................6 1.2 Packing List ........................7 2. Technical Specification ......................8 3. Panel Description ........................10 3.1 Front Panel ........................10 3.2 Rear Panel........................11 4. System Connection ........................12 4.1 Usage Precaution ...................... -
Page 6: Product Introduction
User Manual PT-SP-HD24DA 1. Product Introduction Thanks for choosing the HDMI 2.0 2x4 Splitter, which can distribute either one of two HDMI inputs to four outputs. The splitter supports HDMI video resolution up to 4K@60Hz 4:4:4, 1080P 3D and multichannel audio formats. Except passing EDID information from the display, there are multiple built-in EDID settings can be selected by the 4-pin DIP switch on the rear panel. -
Page 7: Packing List
User Manual PT-SP-HD24DA 1.2 Packing List 1x HDMI 2.0 2x4 Splitter 2x Mounting Ears with 4 Screws 4x Plastic Cushions 1x Power Adapter (12V DC 1A) 1x User Manual Note: Please contact your distributor immediately if any damage or defect in the... -
Page 8: Technical Specification
User Manual PT-SP-HD24DA 2. Technical Specification Video Input Input (2) HDMI Input Connector (2) Female type-A HDMI HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit HDMI Standard HDCP Version Supported Video Output Output (4) HDMI Output Connector (4) Female type-A HDMI... - Page 9 User Manual PT-SP-HD24DA Audio >80dB, 20Hz ~ 20KHz bandwidth >70dB, 10KHz sine at 0dBFS level (or max level before Crosstalk Isolation clipping) < 0.3dB, 1KHz sine at 0dBFS level (or max level before L-R Level Deviation clipping) Frequency Response <± 0.5dB 20Hz ~ 20 KHz...
-
Page 10: Panel Description
User Manual PT-SP-HD24DA 3. Panel Description 3.1 Front Panel ① POWER LED: The LED illuminates red when power is applied. ② OUTPUT LEDs: The LED illuminates green when there is HDMI output on the corresponding channel. ③ SOURCE Button and LEDs: Press the button to switch to next source device, and then the ... -
Page 11: Rear Panel
User Manual PT-SP-HD24DA ⑤ DISPLAY OFF Button and LED: Press the button to turn off displays. The LED blinks green when press this button to send control signal. ⑥ VOLUME DOWN Button: Press the button to decrease the volume of displays. -
Page 12: System Connection
User Manual PT-SP-HD24DA 4. System Connection 4.1 Usage Precaution Make sure all components and accessories included before installation. System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated ... -
Page 13: Edid Management
User Manual PT-SP-HD24DA 5. EDID Management The Extended Display Identification Data (EDID) is used by the source device to match its video resolution with the connected display. By default, the source device obtains its EDID from the first connected display. Meanwhile, since the displays... - Page 14 User Manual PT-SP-HD24DA When in the lower position, the switch represents “0”, while putting the switch in the upper position, it represents “1”. Switch Status Video Resolution Audio Format Obtains EDID from the display connected to the HDMI output port...
- Page 15 User Manual PT-SP-HD24DA User defined EDID setting Except directly invoking the built-in EDID, the specific EDID can be customized by following the below operation process. Rename the user defined EDID according the following format. EC_xx_xxxx_xxx.bin EC: Represents EDID. ...
-
Page 16: Video Resolution Down-Scaling
User Manual PT-SP-HD24DA 6. Video Resolution Down-scaling The product supports video resolution down-scaling, the 4K input can be automatically degraded to 1080P output for compatibility with 1080P display, shown in the below chart. Input Output Color Resolution Refresh Downscale 1080P Specs... -
Page 17: Firmware Upgrade
User Manual PT-SP-HD24DA 7. Firmware Upgrade Please follow the below steps to upgrade firmware by the Micro-USB port: 1) Connect the splitter to the PC with USB cable. 2) Power on the splitter, and then the PC will automatically detect a U-disk named of “BOOTDISK”. -
Page 18: Troubleshooting And Maintenance
User Manual PT-SP-HD24DA 9. Troubleshooting and Maintenance Problems Potential Causes Solutions The connecting cables Check whether the cables may not be connected are connected correctly and correctly or it may be Colour losing or no in working condition. broken. video signal output in... -
Page 19: After-Sales Service
User Manual PT-SP-HD24DA 10. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: The product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 20 User Manual PT-SP-HD24DA Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
