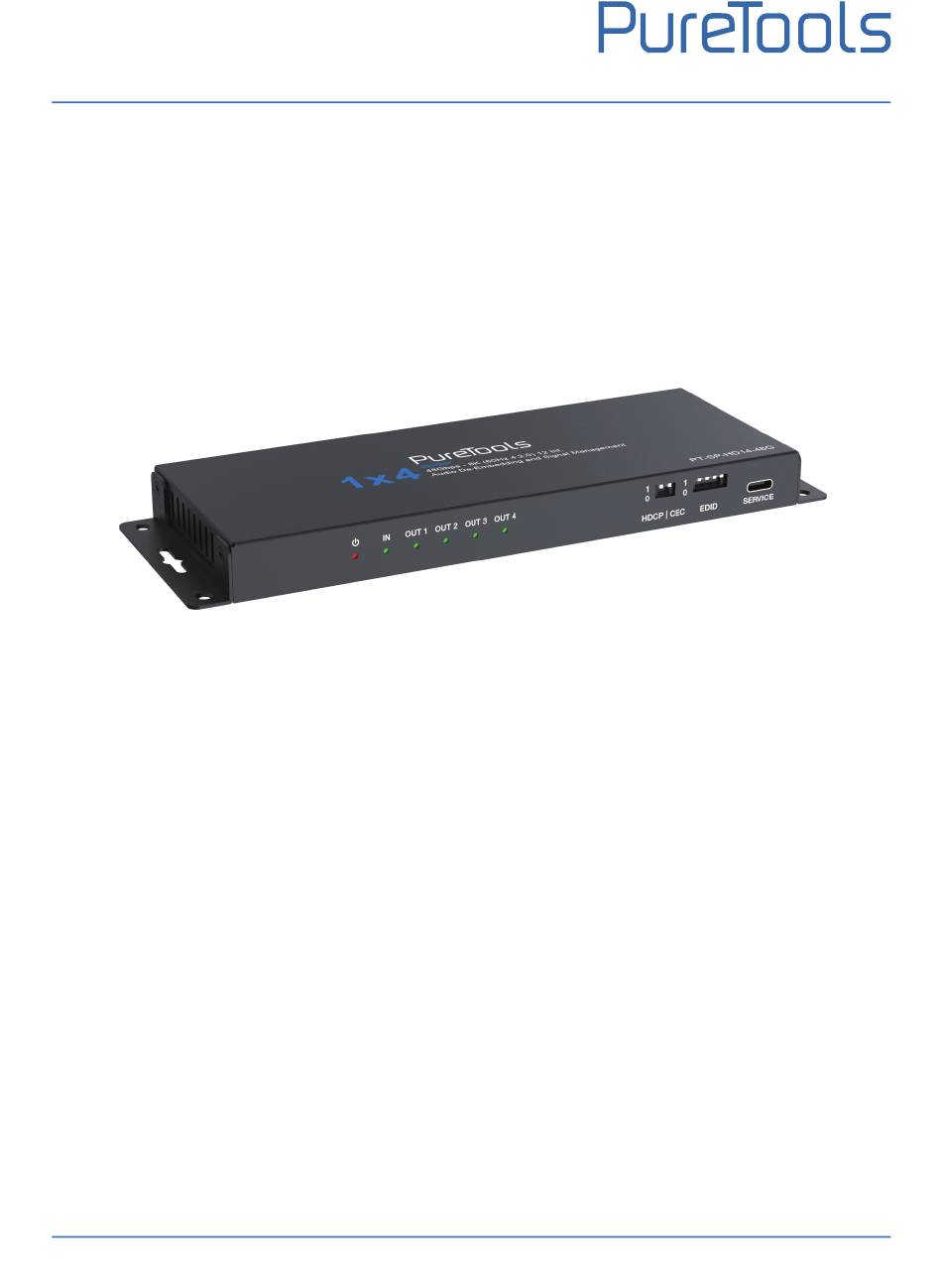

- Page 1 User Manual PT-SP-HD14-48G User Manual 8K HDMI 1x4 Splitter Model PT-SP-HD14-48G Designed in Germany Version V1.0 © 2023 PureLink GmbH All rights reserved.
- Page 2 User Manual PT-SP-HD14-48G Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
- Page 3 Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-SP-HD14-48G complies with Directives 2014/30/EU and 2014/35/EU. The full text of the EU Declaration of Conformity is available at the following Internet address:...
- Page 4 User Manual PT-SP-HD14-48G SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. ⚫ Unpack the equipment carefully and save the original box and packing material for possible future shipment.
- Page 5 User Manual PT-SP-HD14-48G Content 1. Product Introduction....................2 1.1 Introduction......................2 1.2 Features........................2 1.3 Package List......................3 2. Panel Description.......................3 3. Specification.......................5 4. Auto Downscaling & Auto Converting..............8 5. System Diagram......................9 6. Firmware Upgrade....................10 7. After-Sales Service....................12 Asking for Assistance....................13...
- Page 6 User Manual PT-SP-HD14-48G 1. Product Introduction 1.1 Introduction This 8K HDMI 1x4 Splitter can distribute one HDMI source signal to any four display devices. It supports video resolution up to 8K@60Hz 4:2:0 12bit. It includes several features for ease of integration, such as EDID management and cable equalization.
- Page 7 User Manual PT-SP-HD14-48G 1.3 Package List ⚫ 1 × 8K HDMI 1x4 Splitter ⚫ 1 × 5V/2A Multinational Power Supply ⚫ 2 × Mounting Ear ⚫ 4 × Machine Screw (KM3*4) ⚫ 1 × User Manual 2. Panel Description OUT 1 OUT 2 OUT 3 OUT 4...
- Page 8 User Manual PT-SP-HD14-48G Name Function Description Use this DIP switch to enable or disable CEC. 1 - CEC disable: Prevent CEC communication between CEC DIP source and sink devices. switch 0 - CEC enable: Allow CEC communication between source and sink devices.
- Page 9 User Manual PT-SP-HD14-48G 3. Specification Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 / 1.4 Video Bandwidth 48Gbps Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, Video Resolution 8K@30Hz 4:4:4 12bit Color Depth 8/10/12bit Color Space RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0...
- Page 10 User Manual PT-SP-HD14-48G Mechanical Housing Metal Enclosure Color Black Dimensions 176mm(W) × 68mm(D) × 18mm(H) Weight 295g Input: AC 100-240V 50/60Hz, Output: DC 5V/2A Power Supply (US/EU standards, CE/FCC/UL certified) Power 6W (Max) Consumption Operation 32 ~ 104°F / 0 ~ 40°C...
- Page 11 User Manual PT-SP-HD14-48G Resolution Resolution 720x480i59.94Hz (480i59) 720x480p59.94Hz (480p59) 720x576i50Hz (576i50) 720x576p50Hz (576p50) 1280x720p50Hz (720p50) 1280x720p59.94Hz (720p59) 1280x720p60Hz (720p60) 1920x1080i50Hz (1080i50) 1920x1080i59.94Hz (1080i59) 1920x1080i60Hz (1080i60) 1920x1080p23.98Hz (1080p23) 1920x1080p24Hz (1080p24) 1920x1080p25Hz (1080p25) 1920x1080p29.97Hz (1080p29) 1920x1080p30Hz (1080p30) 1920x1080p50Hz (1080p50) 1920x1080p59.94Hz (1080p59) 1920x1080p60Hz (1080p60) 3840x2160p23.98Hz (2160p23)
- Page 12 User Manual PT-SP-HD14-48G 4. Auto Downscaling & Auto Converting This 8K HDMI splitter supports auto downscaling and auto converting on all outputs. Before downscaling it will compare all the EDID of the connected display devices and select the minimum resolution to downscale and output.
- Page 13 User Manual PT-SP-HD14-48G 5. System Diagram Usage Precaution ⚫ Make sure all components and accessories included before installation. ⚫ System should be installed in a clean environment with proper temperature and humidity. ⚫ All of the power switches, plugs, sockets, and power cords should be insulated and safe.
- Page 14 User Manual PT-SP-HD14-48G 6. Firmware Upgrade Please follow the steps as below to upgrade firmware by the Service port on the front panel: 1. Prepare the PC tool (.exe) and the latest upgrade file (.bin) on PC. Rename the upgrade file as “MCU_MAIN_PT-SP-HD14-48G_Vxx.xx.xx.bin” .
- Page 15 User Manual PT-SP-HD14-48G Search 5. Click "Open" to select the upgrade file MCU_Main_PT-SP-HD14-48G_ Vxx.xx.xx.bin, then click "Upgrade". 6. When the upgrade is completed, Search it will pop up "Upgrade successful!". If the firmware updating is fail, the MCU_Main_PT-SP-HD name of upgrade file (.bin) should be confirmed, and then follow the above steps to update again.
- Page 16 User Manual PT-SP-HD14-48G 7. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for three years (The purchase invoice shall prevail).
- Page 17 User Manual PT-SP-HD14-48G Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
