User Manual
PT-IP-HD26X
7. Rack Mounting Instruction
7.1 4U Rack Mounting
This product can be mounted in a standard 4U rack (Please contact your supplier for
4U rack sale). The mounting steps are as follows:

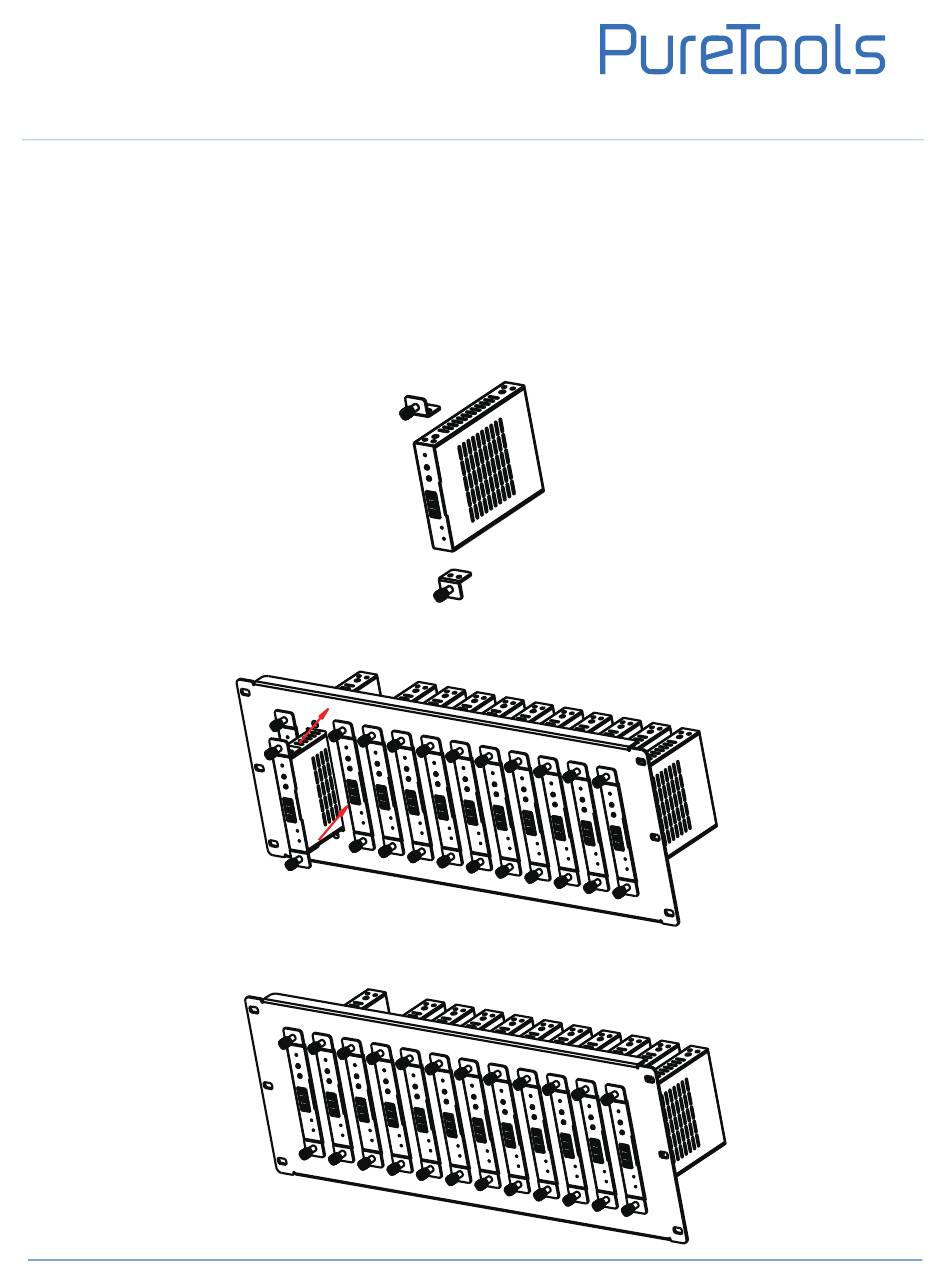

Step 1: Use included screws to fix two mounting ears on the product, as shown in the
figure below:
Step 2: Insert the product with mounting ears into a 4U rack (up to 12 units can be
installed vertically), as shown in the figure below:
Step 3: Use screws to fix mounting ears on the rack to complete the mounting, as
shown in the figure below:
13
