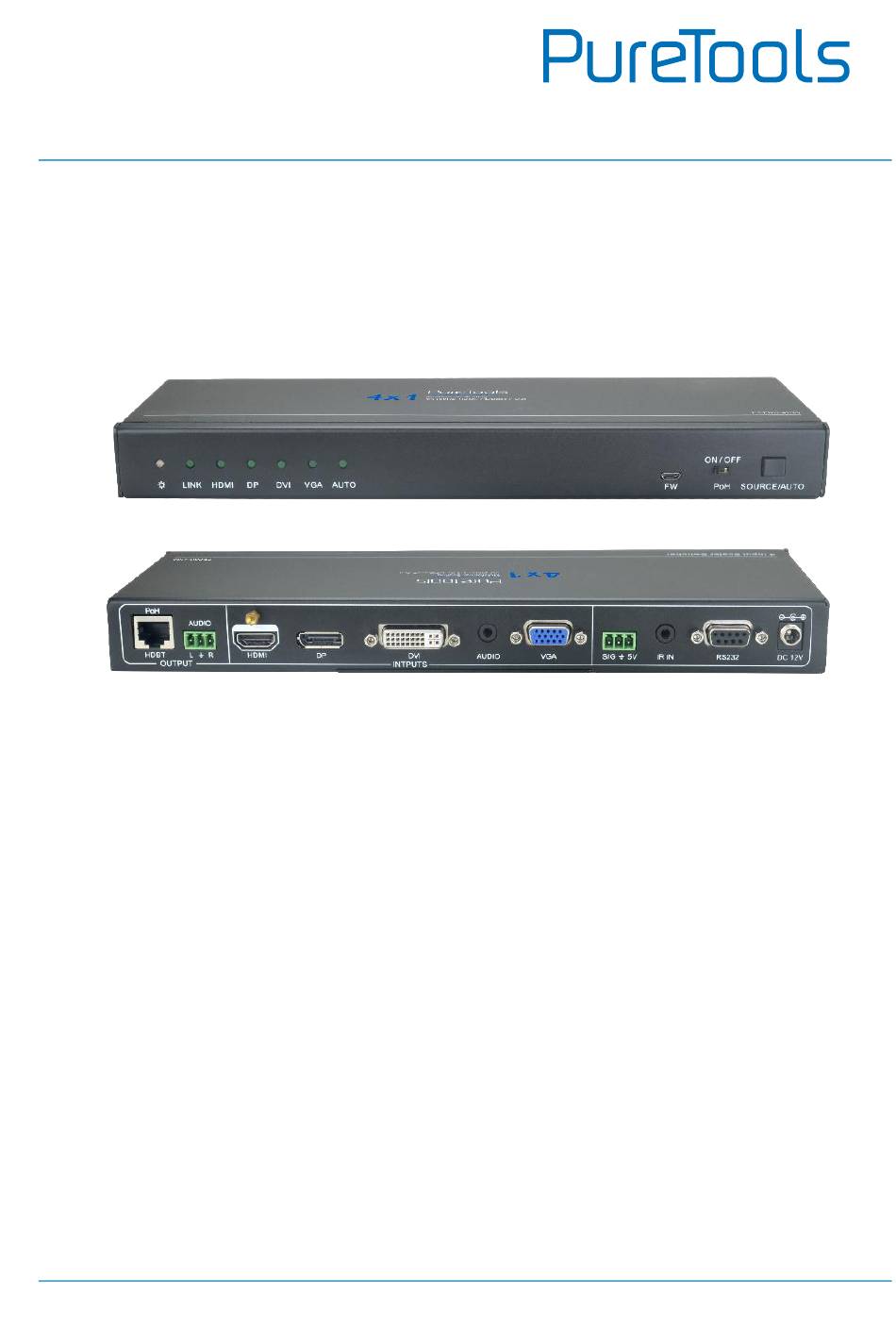

- Page 1 User Manual PT-PSW-41RS User Manual Scaler Switcher Multiformat Scaling, 4K (60Hz 4:2:0), HDBaseT Out Model PT-PSW-41RS Designed in Germany © 2017 PureLink GmbH All rights reserved. VersionV1.0...
- Page 2 User Manual PT-PSW-41RS Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
- Page 3 PT-PSW-41RS REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-PSW-41RS complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-PSW-41RS complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-PSW-41RS SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment Follow basic safety precautions to reduce the risk of fire, electrical shock and ...
-
Page 5: Table Of Contents
User Manual PT-PSW-41RS Contents 1. Introduction ..........................1 1.1 Introduction to PT-PSW-41RS ..................1 1.2 Feature ..........................1 1.3 Package List ........................2 2. Product Appearance ........................3 2.1 Front Panel ......................... 3 2.2 Rear Panel .......................... 4 3. System Connection ........................6 3.1 Usage Precaution ...................... -
Page 6: Introduction
1. Introduction 1.1 Introduction to PT-PSW-41RS The PT-PSW-41RS with Extension is a compact mini scaler switcher with 4 video inputs (1 HDMI, 1 DP, 1 DVI, and 1 VGA). As the VGA input supports VGA, YPbPr and C-video, so the scaler switcher works with multiple video signals. -
Page 7: Package List
Supports hot plug. 1.3 Package List 1 x PT-PSW-41RS 2 x Mounting Ears 4 x Screws ... -
Page 8: Product Appearance
User Manual PT-PSW-41RS 2. Product Appearance 2.1 Front Panel ON / OFF LINK HDMI AUTO SOURCE/AUTO ① Indicators: Power: Lights red when power is on, turns green in standby mode. LINK: Lights green when the Scaler Switcher and HDBaseT Receiver are ... -
Page 9: Rear Panel
User Manual PT-PSW-41RS ④ Source selection button / Switching mode selection button Used as a video source selection button, press to select one source, press again to select next source, switching sequentially between HDMI, DP, DVI and VGA. Used as a switching mode selection button, press and hold for 3 seconds or ... - Page 10 User Manual PT-PSW-41RS ④ IR IN Connects with IR receiver (with carrier wave only), to receive IR signal send by the IR remote to control this Scaler Switcher or far-end third-party device connected to the HDBaseT Receiver. ⑤ RS232 Serial control port, DB9 connector, connect with a control device (such as a ...
-
Page 11: System Connection
User Manual PT-PSW-41RS 3. System Connection 3.1 Usage Precaution Verify all components included with the product are present before installation System should be installed in a clean environment, preferably at ambient temperature or within given working temperature range (see page 22 for limits). -
Page 12: System Diagram
User Manual PT-PSW-41RS 3.2 System Diagram DVI: VGA: HDMI: Audio: HDBT: Control: Apple TV Mac Book Laptop AUDIO HDMI OUTPUT INTPUTS IR Receiver Button Remote PT-HDBT-702-RX Speakerr Central Control System 3.3 Connection Procedure Step1. Connect a HDMI source device to the HDMI Input port with HDMI signal cable. -
Page 13: Application
User Manual PT-PSW-41RS Step8. Connect a reset button to the SIG 5V port as needed, the button can be used as a video source selector. Step9. Connect the included IR Receiver to the IR IN port, the Switcher can be controlled through the IR remote. -
Page 14: System Operation
User Manual PT-PSW-41RS 4. System Operation 4.1 Button Control Front panel buttons can be used for source selections, there are 4 sources for choose in total, including HDMI, DP, DVI, VGA. Video signals support auto-switching and manual switching (factory default). -
Page 15: Ir Control
User Manual PT-PSW-41RS Signal removing Once removing the current display signal, the Scaler Switcher will detect all input signals with priority from HDMI to VGA. When detected the first signal, it will transfer to output. Notice: In manual-switching mode, if you set the signal format of VGA/DVI input to ... - Page 16 User Manual PT-PSW-41RS ① Standby button Enter/ exit standby mode Standby ② Input channel selection buttons INPUTS Select video source via pressing corresponding HDMI button (audio switched following the corresponding DVI/VGA). AUTO ③ Auto button Enter/Exit auto-switching mode. ④ Resolution selection buttons...
-
Page 17: Control The Third-Party Device
User Manual PT-PSW-41RS 4.2.2 Control the Third-Party Device Firstly, connect IR emitter to the IR OUT port of HDBaseT Receiver; Secondly, send command 50781% (IR mode 1) via RS232 communication software, the far-end display device (such as HDTV) can be controlled locally by using its IR remote. -
Page 18: Rs232 Control
User Manual PT-PSW-41RS 4.3 RS232 Control The Scaler Switcher and the far-end third-party RS232 device can be controlled by sending RS232 commands via control PC. When to control a third-party RS232 device, the baud rate of this device should be 2400, 4800, 9600, 19200, 38400, 57600 or 115200. - Page 19 User Manual PT-PSW-41RS Here we take the software CommWatch.exe as example. The icon is showed as below: The interface of the control software is showed as below: Parameter Configuration area Monitoring area, indicates if the command sent works. Command Sending area...
-
Page 20: Rs232 Command
User Manual PT-PSW-41RS 4.3.3 RS232 Command Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Switch Commands Command Function Feedback Example 50701% Switch to HDMI input Switch to HDMI 50702% Switch to DP input... - Page 21 User Manual PT-PSW-41RS Audio Commands Command Function Feedback Example Select the embedded audio as DVI 50708% DVI Audio from Embedded audio input Select the external audio as DVI 50709% DVI Audio from Embedded audio input Resolution Commands Command Function Feedback Example...
- Page 22 User Manual PT-PSW-41RS IR& RS232 Setup Commands Command Function Feedback Example RS232 control mode 1: Control RS232 Mode 1: Enable RS232 50779% the far-end third-party device by Control Remote sending RS232 commands via PC, RS232 control mode 2: Control RS232 Mode 2: Disable RS232...
- Page 23 User Manual PT-PSW-41RS Image Setup Commands Command Function Feedback Example 502xx% Set the brightness to xx. Brightness: xx (xx=00~99) 503xx% Set the contrast to xx. Contrast: xx (xx=00~99) 504xx% Set the saturation to xx. Saturation: xx (xx=00~99) 505xx% Set the sharpness to xx.
- Page 24 User Manual PT-PSW-41RS Image adjustment Commands Command Function Feedback Example Pull right from left side (decrease 50675% Output Width Adjust xx image width) Stretch upwards from bottom side 50676% Output Height Adjust xx (decrease image height) Stretch downwards from bottom...
- Page 25 User Manual PT-PSW-41RS Inquire Commands Command Function Feedback Example EDID: xx (xx=1080P&PCM 2ch/ 50778% Check the EDID 1080P&5.1ch/ 1080P3d&5.1ch/ 4K&PCM 2ch) 50793% Check the HDCP status HDCP Off/ HDCP On/ HDCP Active 1920x1080 Check current output 50707% Hpolarity:1/0 resolution and polarity.
-
Page 26: Control The Third-Party Device
User Manual PT-PSW-41RS 4.3.4 Control the Third-Party Device Firstly, following the below connection solution to build control system. AUDIO HDBT HDMI OUTPUT INTPUTS ETHERNET HDBT IN/PoH HDMI OUT SPDIF IN IR IN IR OUT RS232 DC 12V HDBaseT Receiver Third-party Device Secondly, send command 50779% via RS232 communication software. -
Page 27: Specification
User Manual PT-PSW-41RS 5. Specification I/O Connections HDM Input One(1) Type A receptacle DP Input One(1) Type A DisplayPort DVI Input One(1) Type DVI-I female receptacle VGA Input One(1) HD-15 female receptacle External Audio Input One(1) 3.5mm TRS jack HDBaseT Output... - Page 28 User Manual PT-PSW-41RS Video Performance Impedance 75Ω Gain 0 db Input DDC Signal 5.0 volts p-p (TTL) Input Video Signal 0.5 to 1.0 volts p-p Audio Performance HDMI Embedded Audio PCM, Dolby Digital, DTS, DTS-HD External Audio Signal 1 stereo audio input for DVI/VGA...
-
Page 29: Panel Drawing
User Manual PT-PSW-41RS 6. Panel Drawing AUDIO HDBT HDMI OUTPUT INTPUTS 280 mm ON / OFF LINK HDMI AUTO SOURCE/AUTO... -
Page 30: Troubleshooting & Maintenance
User Manual PT-PSW-41RS 7. Troubleshooting & Maintenance Problems Causes Solutions Bad quality of the Try another high quality connecting cable cable. Output image with snowflake. Make sure the connection Fail or loose connection is good. Check with oscilloscope or No signal at the input /... -
Page 31: After-Sales Service
User Manual PT-PSW-41RS 8. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 32 User Manual PT-PSW-41RS Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
