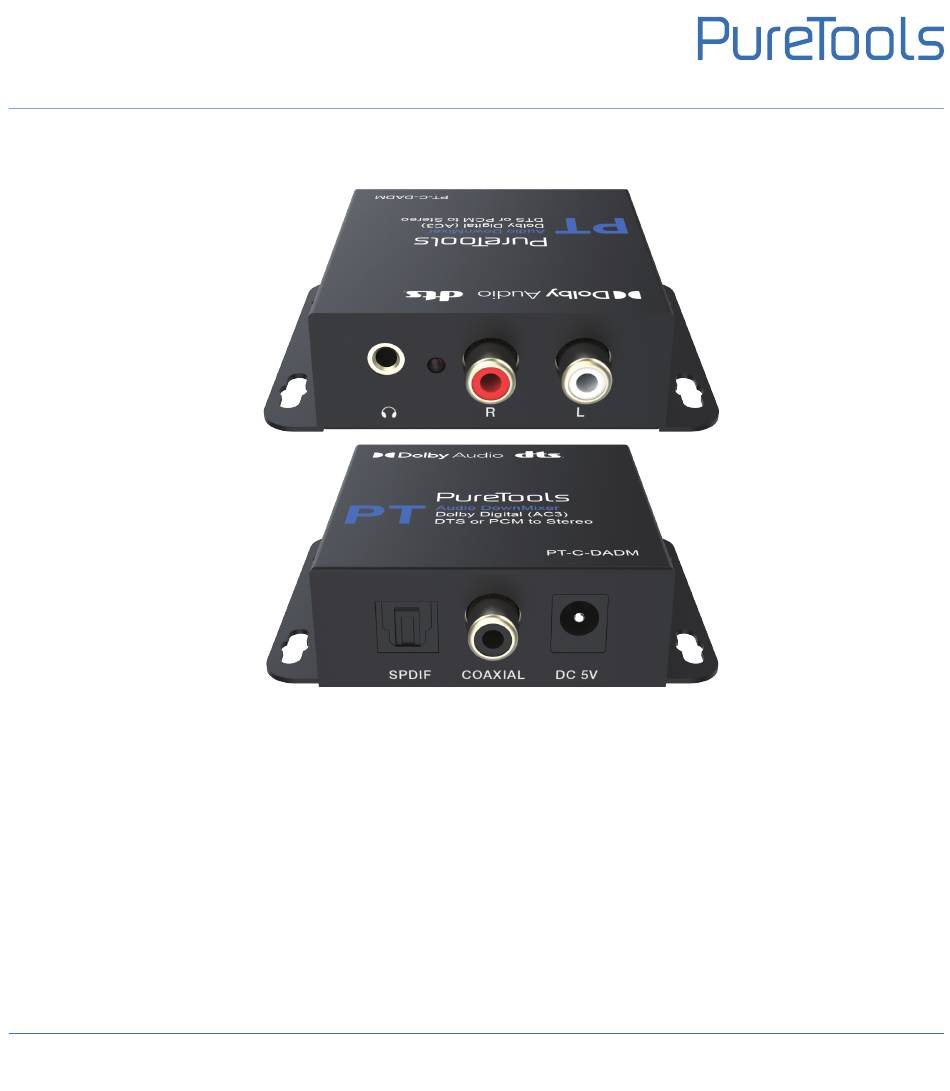

- Page 1 User Manual PT-C-DADM User Manual Digital to Analog Audio Decoder Model PT-C-DADM Designed in Germany VersionV1.0 © 2022PureLink GmbH All rights reserved.
- Page 2 User Manual PT-C-DADM Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
- Page 3 User Manual PT-C-DADM FCC Statement This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. It has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 4 User Manual PT-C-DADM REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-C-DADM complies with Directives 1907/2006/EU and 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-C-DADM complies with Directives 2014/30/EU and 2014/35/EU.
- Page 5 User Manual PT-C-DADM SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. • Unpack the equipment carefully and save the original box and packing material for possible future shipment.
- Page 6 User Manual PT-C-DADM • Do not remove the housing of the device as opening or removing housing may expose you to dangerous voltage or other hazards. • Install the device in a place with fine ventilation to avoid damage c aused by overheat.
-
Page 7: Table Of Contents
User Manual PT-C-DADM Content 1. Product Introduction................. 1.1 Introduction.................. 1.2 Features..................1.3 Package List.................. 2. Panel Description................2.1 Transmitter panel................. 2.2 Receiver panel................3. Specification..................4. System Diagram................. 5. After-Sales Service................Asking for Assistance................ -
Page 8: Product Introduction
User Manual PT-C-DADM 1. Product Introduction 1.1 Introduction The Digital to Analog Audio Decoder features an integrated 24 bit audio DSP. This unit can decode a variety of digital audio formats, including Dolby Digital (AC3), DTS and PCM. It can simply connect an... -
Page 9: Features
User Manual PT-C-DADM 1.2 Features • Decode Dolby Digital (AC3), DTS or PCM digital audio to stereo audio output. • Support PCM 32KHz.44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz sample frequency audio decode. • Support Dolby Digital 5.1 channels, DTS-ES6.1 channels audio decode. -
Page 10: Panel Description
User Manual PT-C-DADM Note: Please contact your distributor immediately if any damage or defect in the components is found. 2. Panel Description Please study the panel drawings below and be familiar with the signal input(s), output(s) and power requirements. Back Panel... -
Page 11: Specification
User Manual PT-C-DADM 3. Specification Input Ports 1 x Optical (Toslink), 1 x Digital Coaxial Output Ports 1 x RCA (L/R), 1 x 3.5mm (Headphone) Signal to Noise Ratio 103db Degree of Separation 95db Frequency Response (20Hz ~ 20KHz) +/- 0.5db... - Page 12 User Manual PT-C-DADM 4. LED Status Indicator Red always: PCM decoder or No signal Red blinking: Dolby decoder Green blinking: DTS decoder Usage Precaution • Make sure all components and accessories included before installation. • System should be installed in a clean environment with proper temperature and humidity.
-
Page 13: After-Sales Service
User Manual PT-C-DADM 7. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This workmanship for three years (The... - Page 14 User Manual PT-C-DADM • Damage caused by force majeure • Servicing not authorized • Any other causes which does not relate to a product defect • Delivery, installation or labor charges for installation or setup of the product 3) Technical Support: For any questions or problems, contact your...
-
Page 15: Asking For Assistance
User Manual PT-C-DADM Asking for Assistance Technical Support: Phone: +49 5971 800299 Fax: +49 5971 800299 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10 D - 48432 Rheine www.purelink.de...
