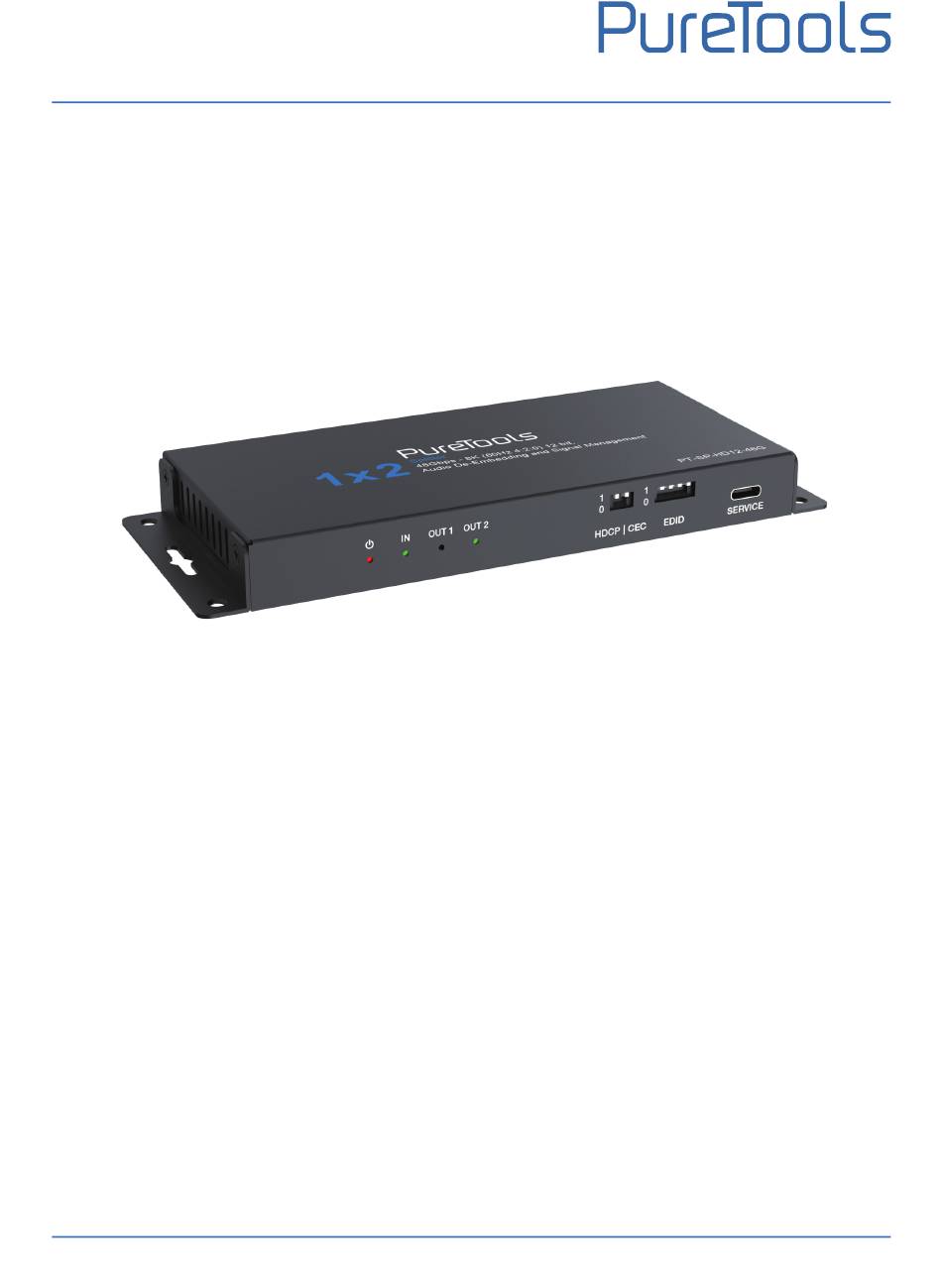

- Page 1 User Manual PT-SP-HD12-48G User Manual 8K HDMI 1x2 Splitter Model PT-SP-HD12-48G Designed in Germany Version V1.0 © 2023 PureLink GmbH All rights reserved.
- Page 2 User Manual PT-SP-HD12-48G Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
- Page 3 Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-SP-HD12-48G complies with Directives 2014/30/EU and 2014/35/EU. The full text of the EU Declaration of Conformity is available at the following Internet address:...
- Page 4 User Manual PT-SP-HD12-48G SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. ⚫ Unpack the equipment carefully and save the original box and packing material for possible future shipment.
- Page 5 User Manual PT-SP-HD12-48G Content 1. Product Introduction....................2 1.1 Introduction......................2 1.2 Features........................2 1.3 Package List......................3 2. Panel Description.......................3 3. Specification.......................5 4. Auto Downscaling & Auto Converting..............8 5. System Diagram.......................10 6. After-Sales Service....................11 Asking for Assistance....................12...
- Page 6 User Manual PT-SP-HD12-48G 1. Product Introduction 1.1 Introduction This 8K HDMI 1x2 Splitter can distribute one HDMI source signal to any two display devices. It supports data rate up to 48Gbps, and video resolution 8K@60Hz 4:2:0 12bit compliant. It has advanced EDID management and audio de-embedding function (output through the optical and analog port).
- Page 7 User Manual PT-SP-HD12-48G 1.3 Package List ⚫ 1 × 8K HDMI 1x2 Splitter ⚫ 1 × 5V/2A Multinational Power Supply ⚫ 2 × Mounting Ear ⚫ 4 × Machine Screw (KM3*4) ⚫ 1 × User Manual 2. Panel Description OUT 1...
- Page 8 User Manual PT-SP-HD12-48G Name Function Description Use this DIP switch to enable or disable CEC. 1 - CEC disable: Prevent CEC communication between CEC DIP source and sink devices. switch 0 - CEC enable: Allow CEC communication between source and sink devices.
- Page 9 User Manual PT-SP-HD12-48G 3. Specification Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth 48Gbps Up to 8K@60Hz 4:2:0 12bit, 8K@30Hz 4:4:4 12bit, Video Resolution 4K@120Hz 4:4:4 12bit Color Depth 8/10/12-bit Color Space RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0...
- Page 10 User Manual PT-SP-HD12-48G Mechanical Housing Metal Enclosure Color Black Dimensions 145mm(W) × 68mm(D) × 17mm(H) Weight 262g Input: AC 100 - 240V 50/60Hz, Output: DC 5V/2A Power Supply (US/EU standards, CE/FCC/UL certified) Power 4.5W (Max) Consumption Operation 32 ~ 104°F / 0 ~ 40°C...
- Page 11 User Manual PT-SP-HD12-48G * All the input/output resolutions in the following list have been fully tested in lab conditions. Other resolutions may also function without issues. Resolution Resolution 640x480p60Hz 800x600p60Hz 1024x768p60Hz 1280x1024p60Hz 1360x768p60Hz 1440x900p60Hz 1440x1050p60Hz 1600x1200p60Hz 720x480i59.94Hz (480i59) 720x480p59.94Hz (480p59)
- Page 12 User Manual PT-SP-HD12-48G 4. Auto Downscaling & Auto Converting This 8K HDMI splitter supports auto downscaling and auto converting on all outputs. Before downscaling it will compare all the EDID of the connected display devices and select the minimum resolution to downscale and output.
- Page 13 User Manual PT-SP-HD12-48G Bypass Splitter 4K HDR TV 1080P HDR 1080P Source 1080P HDR Downscaling & Converting 1080P SDR TV 1080P SDR Bypass Splitter 1080P HDR TV 1080P HDR 1080P Source 1080P HDR Downscaling & Converting 1080P DVI TV 1080P DVI...
- Page 14 User Manual PT-SP-HD12-48G 5. System Diagram Usage Precaution ⚫ Make sure all components and accessories included before installation. ⚫ System should be installed in a clean environment with proper temperature and humidity. ⚫ All of the power switches, plugs, sockets, and power cords should be insulated and safe.
- Page 15 User Manual PT-SP-HD12-48G 6. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for three years (The purchase invoice shall prevail).
- Page 16 User Manual PT-SP-HD12-48G Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
