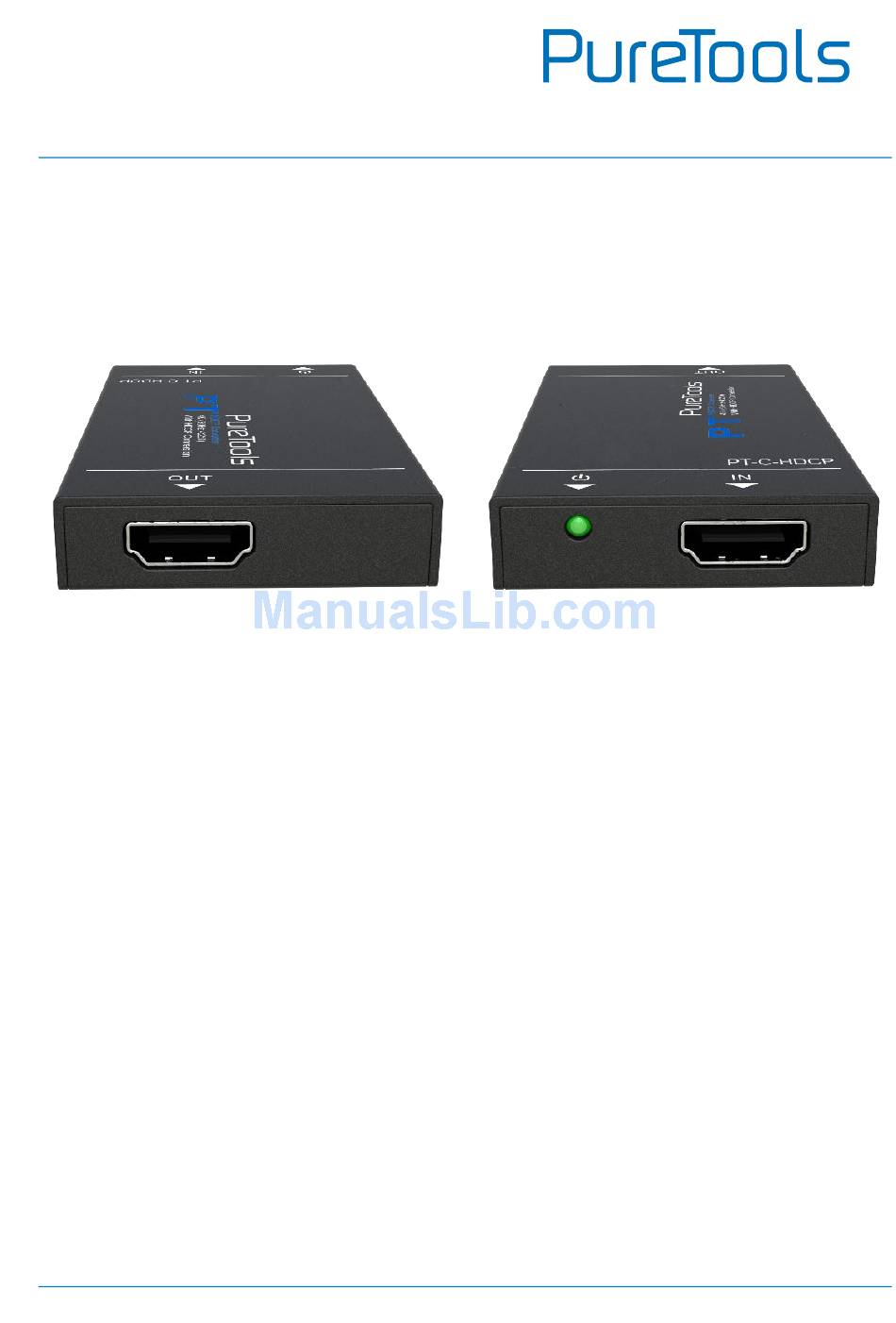

- Page 1 User Manual PT-C-HDCP User Manual HDCP Converter 4K (60Hz 4:2:0) HDCP2.2 to HDCP1.4 Model PT-C-HDCP Designed in Germany © 2017 PureLink GmbH All rights reserved. VersionV1.0...
-
Page 2: Fcc Statement
User Manual PT-C-HDCP Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. - Page 3 PT-C-HDCP REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-C-HDCP complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-C-HDCP complies with Directives 2014/30/EU and 2014/35/EU.
-
Page 4: Safety Precautions
User Manual PT-C-HDCP SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment Follow basic safety precautions to reduce the risk of fire, electrical shock and ... -
Page 5: Package Content
PT-C-HDCP Introduction to PT-C-HDCP The PT-C-HDCP is an ultra-thin HDMI signal manager. It is designed to enhance the compatibility between HDMI sources and displays to match more display device. The transmission of 4k×2k@60Hz (max) signal from source to display is up to 15m. Beside straight-through HDMI transmission, the EDID bypass function ensures the best resolution of displays. -
Page 6: Panel Description
User Manual PT-C-HDCP Panel Description ① Power LED: GREEN when powered on ② IN: Connect with HDMI source ③ OUT: Connect with HDMI display System Diagram HDCP1.4 HDTV HDCP2.2 HDMI: Blu-Ray DVD... -
Page 7: Specification
User Manual PT-C-HDCP Specification Input & Output Input (1) HDMI Input Connector (1) 19-pin type-A female HDMI Output (1) HDMI Output Connector (1) 19-pin type-A female HDMI General Transmission Distance Input≤10m; Output≤5m HDCP Standard Input supports HDCP2.2 EDID Management EDID pass-through Bandwidth 10.2Gbps... -
Page 8: After Sales Service
User Manual PT-C-HDCP After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 9 User Manual PT-C-HDCP...
- Page 10 User Manual PT-C-HDCP...
- Page 11 User Manual PT-C-HDCP...
-
Page 12: Asking For Assistance
User Manual PT-C-HDCP Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
