Wiring 2: SPDIF mode
1. Switch both the DIP switches of transmitter and receiver to SPDIF mode.
2. Connect an audio source to the SPDIF IN port of the transmitter.
3. Connect an audio device such as a stereo amplifier to the SPDIF OUT port of the receiver.
4. Connect USB ports of transmitter and receiver to the provided power adapters.
5. Power on all attached devices. Audio signal from SPDIF IN port will be transmitted to SPDIF
OUT port. (See Figure 2)
8

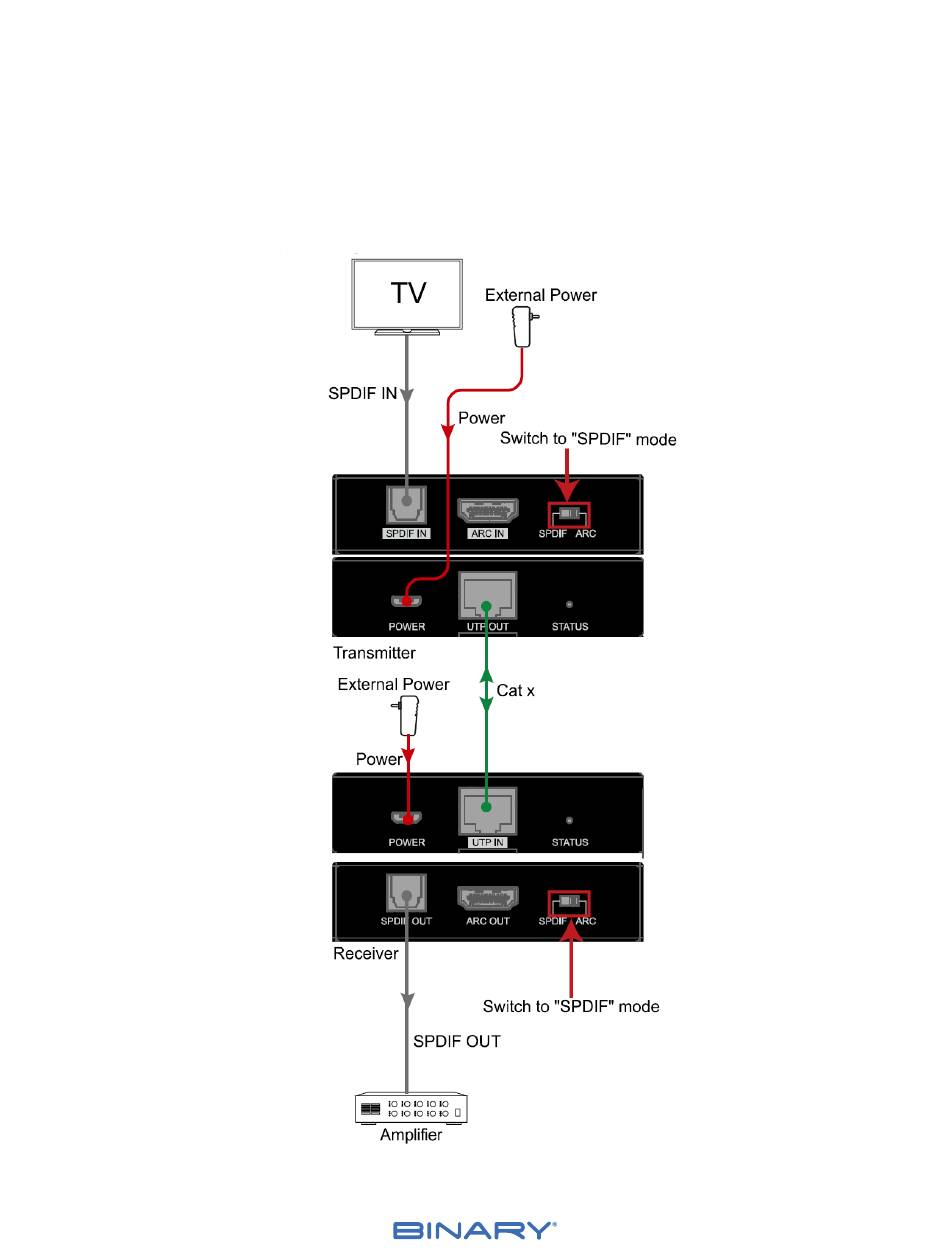

Figure 2: Wiring option 2, SPDIF
