Battery Setup And Tamper Switch Installation - Altronix Maximal FE Series Installation Manual

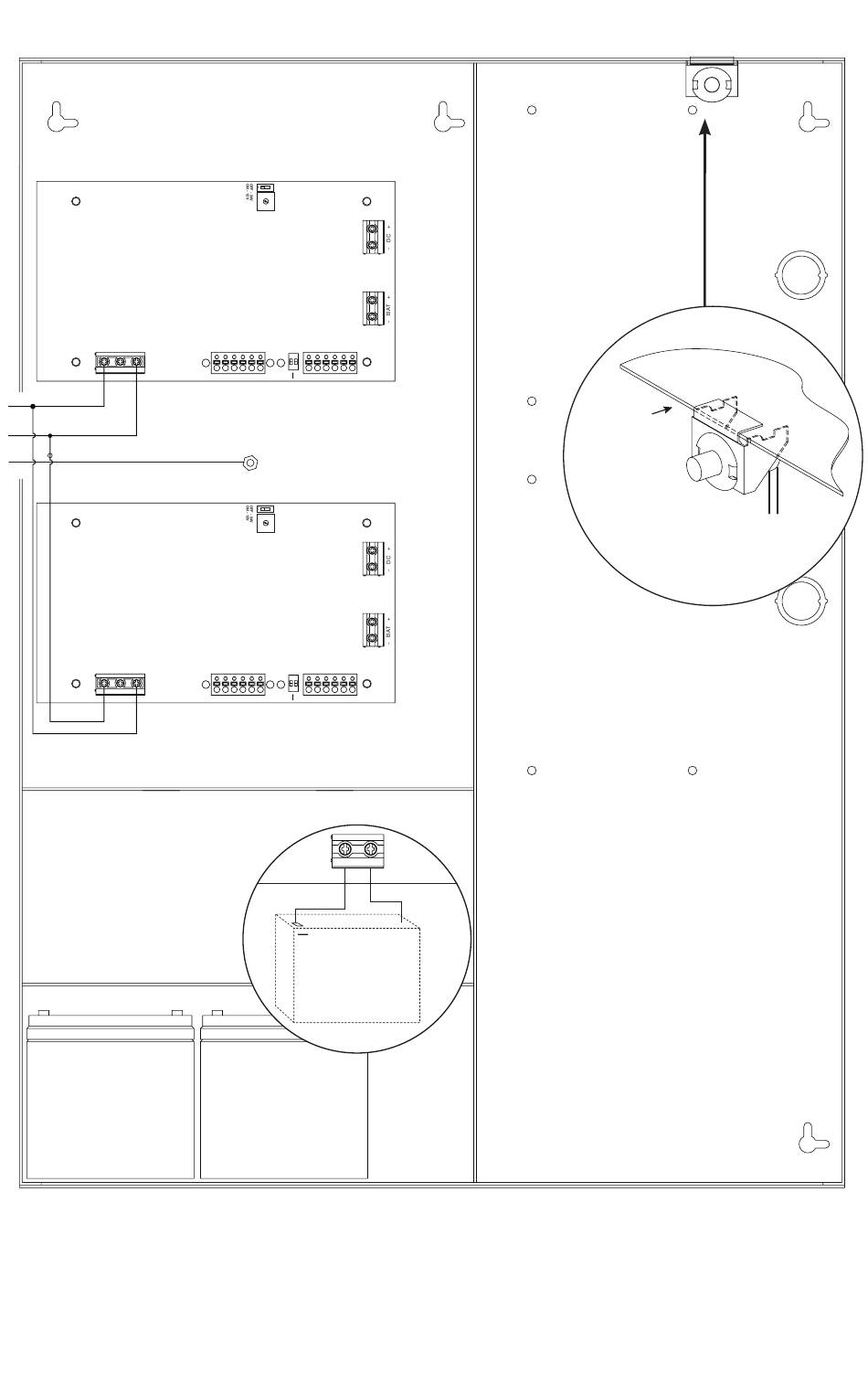

Fig. 2
L G N
Line Neutral
Input 120VAC 60Hz
L G N
Line Neutral
CAUTION: When power supply board is set for 12VDC
use only one (1) 12VDC stand-by battery.
Connect red battery lead to
the terminal marked [+ BAT]
and to the [positive (+)]
terminal of the battery.
Connect black battery lead to
terminal marked [BAT –]
and to the [negative (–)]
terminal of the battery.
Optional Rechargeable
Stand-by Battery for
UL294 Applications.
Note: 12V batteries are
required
for Canadian installations
Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing.
Up to four (4) 12AH rechargeable batteries are the largest batteries that can fit in this enclosure.
A UL Listed external battery enclosure must be used if using the 40AH or 65AH batteries.
MaximalFE Expandable Power Systems Installation Guide
AC1 AC DC
1 min enable
NC C NO NC C NO
TRIGGER EOL NO GND +AUX-
2 hr disable
AC FAIL BAT FAIL SUPERVISED RESET
Earth
Ground
AC1 AC DC
1 min enable
NC C NO NC C NO
TRIGGER EOL NO GND +AUX-
2 hr disable
AC FAIL BAT FAIL SUPERVISED RESET
- BAT +
Optional Rechargeable
Stand-by Battery for
UL294 Applications.
Note: 12V batteries
required for
Canadian installations.
Optional Rechargeable
Stand-by Battery for
UL294 Applications.
Note: 12V batteries are
required
for Canadian installations
Tamper Switch
Fig. 2a
Enclosure
Edge of
Enclosure
Tamper Switch
(not included)
To Access Control Panel or
UL Listed Reporting Device
- 9 -
