Battery Setup And Tamper Switch Installation - Altronix Maximal11FEV Installation Manual

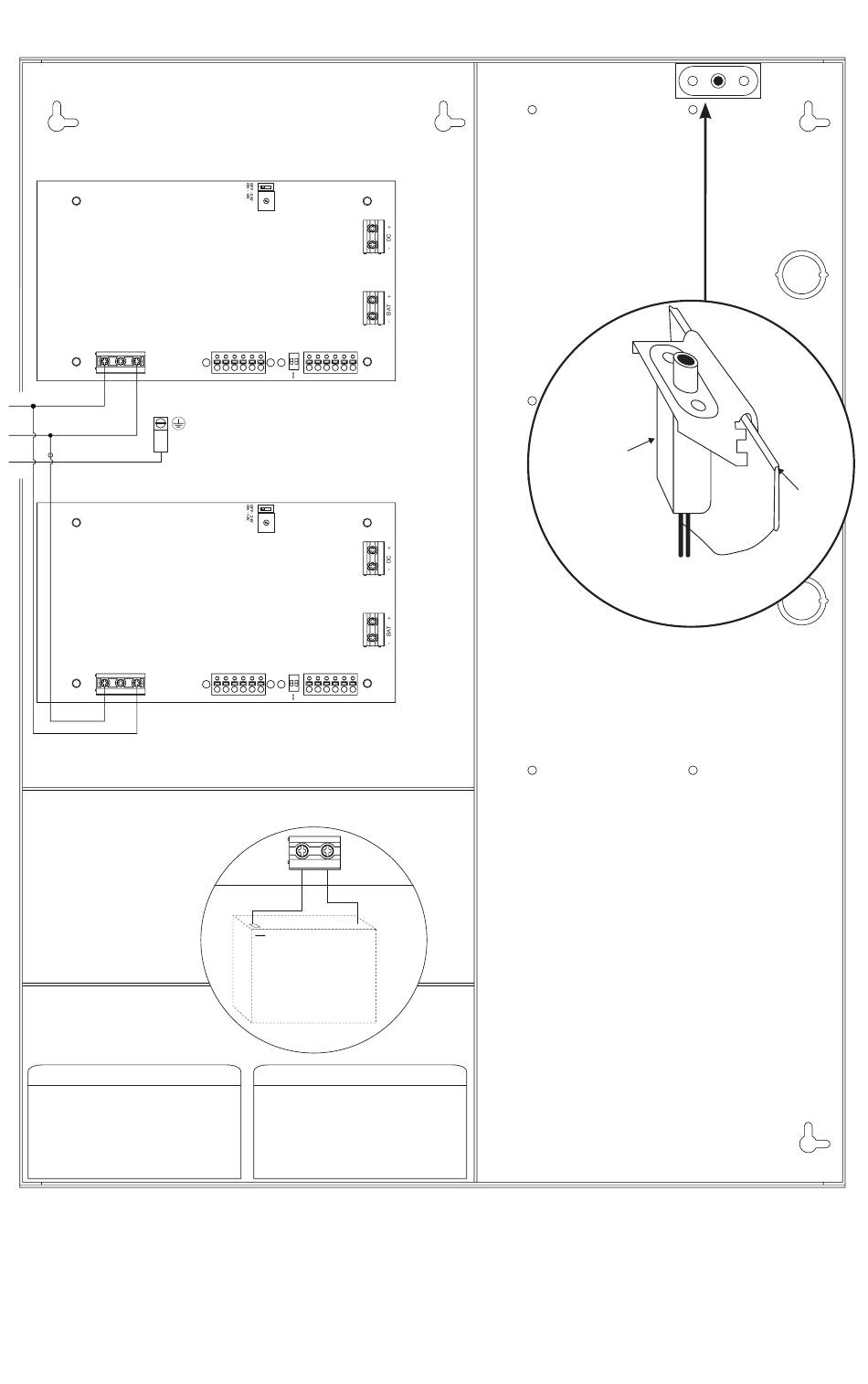

Fig. 2
L G N
Line Neutral
Input 220VAC
50/60Hz
L G N
Line Neutral
CAUTION: When power supply board is set for 12VDC
use only one (1) 12VDC stand-by battery.
Connect red battery lead to
the terminal marked [+ BAT]
and to the [positive (+)]
terminal of the battery.
Connect black battery lead to
terminal marked [BAT –]
and to the [negative (–)]
terminal of the battery.
Optional Rechargeable
Stand-by Battery
Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing.
Up to four (4) 12AH rechargeable batteries are the largest batteries that can fit in this enclosure.
A UL Listed external battery enclosure must be used if using the 40AH or 65AH batteries.
- 8 -
AC1 AC DC
NC C NO NC C NO 1 min enable
TRIGGER EOL NO GND
2 hr disable
SUPERVISED RESET
AC FAIL BAT FAIL
Ground Lug
AC1 AC DC
NC C NO NC C NO 1 min enable
TRIGGER EOL NO GND
2 hr disable
SUPERVISED RESET
AC FAIL BAT FAIL
- BAT +
Optional Rechargeable
Stand-by Battery
Optional Rechargeable
Stand-by Battery
+AUX-
+AUX-
Tamper Switch
Fig. 2a
Honeywell
Model 112
Tamper Switch
or equivalent
(Not Included)
to Access Control Panel
or U.L. Listed
Reporting Device
MaximalFEV Expandable Power Systems
Enclosure
Edge of
Enclosure
