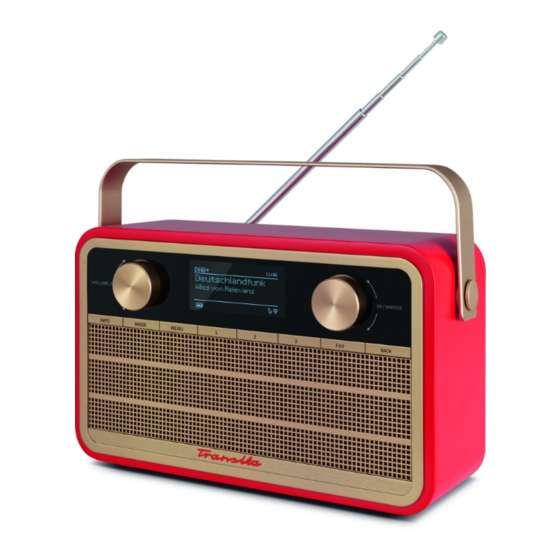

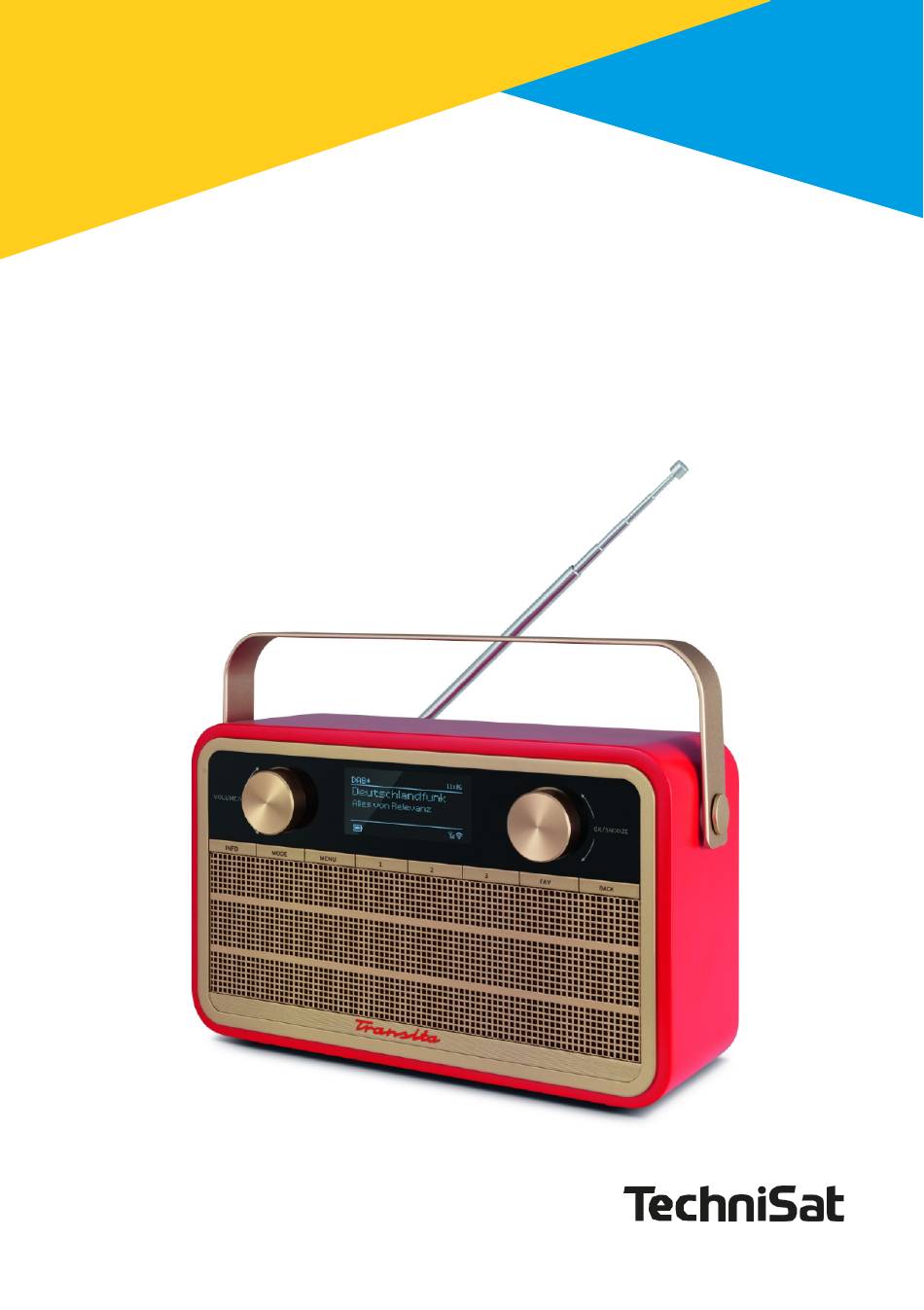

- Page 1 Operating instructions Transit 121 IR Portable retro-style DAB+/FM digital radio with 24-hour battery and internet radio function...
-
Page 2: Foreword
We therefore recommend that you regularly visit the TechniSat website to download the latest user manual. We wish you much enjoyment with your Transit 121 IR! 1.1 Anticipated use... -
Page 3: Table Of Contents
2 Table of contents Foreword..................2 Purpose ..................2 Target group for these operating instructions .......2 Design features of this manual............2 Table of contents ................3 Photos....................6 Front of the device.................6 Back of the device ................7 Safety instructions ................8 Safety instructions for batteries.............9 Configuring the device ..............9 Disposal instructions..............11 Device description...............12... - Page 4 Station information ..............18 Volume control ................18 Deletion of inactive stations............19 UKW Radio................19 10.1 Manual search ................19 10.2 Automatic search .................19 10.3 Favourites..................20 10.4 Audio settings................20 10.5 Search settings ................21 Internet radio and podcasts ............21 11.1 Recently listened to ..............21 11.2 List....................21 11.3 Favourites..................22...
- Page 5 17.1 Problems with reception.............28 17.2 Problems with the device ............29 Technical data ................29 Legal guidelines................30 Seite 5...
-
Page 6: Photos
3 Photos 3.1 Front side INFO-button VOLUME/ON/STANDBY (Volume +/- and ON/OFF) MODE-Button (Switching source) MENU-Button (Call up device menu) Display Button 1 Button 2 Button 3 FAV Favourites record (1 - 10) OK/SNOOZE Move marker = turn, Select and snooze = press BACK-Button Seite 6... -
Page 7: Back Of The Device
3.2 Back device UPDATE PORT (for service purposes only) Headphone socket (3.5 mm jack) AUX-IN (3.5mm connector) DC-IN power input (12V, 1000mA) Switch Telescopic antenna Carrying handle Seite 7... -
Page 8: Safety Instructions
4 Service information Please read all safety instructions carefully and keep them for future reference. Always follow all warnings and instructions in this manual and on the back of the unit. • The appliance may only be connected to a mains voltage of 100-240 V~, 50/60 Hz. Never attempt to use the device at any other voltage. -
Page 9: Safety Instructions For Batteries
4.1 Safety instructions for lithium-ion batteries WARNING! The Transita 121 IR is equipped with a modern, powerful lithium-ion battery that meets all safety requirements. Due to the greater risks posed by modern batteries, please handle the device with care and observe the following safety instructions. - Page 10 • Do not choose a location in rooms with high humidity, such as the kitchen or sauna, as condensation may damage the unit. The unit is designed for use in dry environments and temperate climates and must not be exposed to dripping or splashing water.
-
Page 11: Disposal Instructions
5 Advice on disposal This appliance has been designed and manufactured with high-quality materials and components that are suitable for reuse. The symbol of the crossed-out wheeled bin indicates that the product is subject to separate collection in accordance with Directive 2012/19/EU of the European Parliament and of the Council and in accordance with Directive 2006/66/EC of the European Parliament and of the Council, and informs you that electrical and electronic equipment and batteries and accumulators, once used, must not be disposed of with other... -
Page 12: Device Description
municipalities. Danger of suffocation! Do not leave the packaging and its parts with children. Danger of suffocation from film and other packaging materials. 6 Description device 6.1 Contents of the set Make sure all the accessories listed below are included: •... -
Page 13: Prepare The Device For Operation
The internal battery recharges during mains power. Hinweis: The Transita 121 IR has a rechargeable lithium-ion battery that charges as soon as the radio is plugged in and switched on with the power switch. The first time it is used, the battery must be charged for approximately 12 hours. -
Page 14: Basic Operation
When not in use, unplug the power supply from the electrical outlet. Pull the plug, not the cable. Unplug the power cord before a storm breaks out. If the appliance is not going to be used for a long time, e.g. before going on a long journey, pull the plug from the socket. The heat generated during operation must be dissipated through adequate air circulation. -
Page 15: Volume Control
8.3 Volume control > To change the volume, turn the VOLUME/ON/STANDBY knob. > Turn the knob clockwise to increase the volume or counterclockwise to decrease it. 8.4 Use headphones Warning of hearing damage! Do not listen to the radio at high volume through headphones. This can lead to permanent hearing damage. -
Page 16: Initial Settings
8.6 First configuration When the Transit 121 IR is commissioned and switched on for the first time, a pre-configuration wizard is launched. > First select the language of the display, and when [Do now] appears on the display, > YES. If you select NO, the wizard will end and you will need to manually enter the necessary settings. -
Page 17: Playback Modes
8.7 Playback mode Your device offers various methods of receiving playback. These are described in the following sections. > To switch between modes, press the MODE button repeatedly. Alternatively: > Open the main menu by pressing the MENU button. Select [Main menu] with the OK/SNOOZE knob and press the OK/SNOOZE knob. -
Page 18: Station Information
> Alternatively, select a channel in MENU > [Channel List] with the OK/ SNOOZE. 9.5 Favourites There are 10 places where you can store any DAB+ stations you want, for quick and easy access. To save a station, do the following: >... -
Page 19: Deletion Of Inactive Stations
> Confirm by pressing the OK/SNOOZE knob. 9.8 Deletion of inactive stations Channels that cannot be received are marked in the channel list with a "?". You can specifically delete these channels. > Press the MENU button and select [Delete inactive channels]. >... -
Page 20: Use Your Favourites
> Repeat the procedure to search for another station. 10.3 Use your favourites There are 10 memory locations where any FM station can be stored, which can then be accessed quickly and easily. To save a station, do the following: >... -
Page 21: Search Settings
If all stations are found, weak stations with interference may also be found, as the search stops at every station that can be received. 11 Internet radio and podcasts The Transita 121 IR is equipped with an internet radio/podcast receiver. A WLAN router with internet access is required to receive internet radio/podcasts. >... -
Page 22: Favourites
12 Playback Bluetooth 12.1 Bluetooth mode activation > Press the MODE button until [Bluetooth Audio] appears in the display. If the Transita 121 IR has already been paired with another device within range, the connection will be established automatically. 12.2 Pairing >... -
Page 23: Evaporation
Transit 121 IR. 14 Further functions 14.1 Alarm clock The Transita 121 IR can act as an alarm clock. There are 2 programmable alarm times available, which Seite 23... -
Page 24: Sleep Function
14.2 Function sleep Use the sleep function to play music for a set period of time. When the set time has elapsed, the Transita 121 IR automatically enters standby mode. > Open the menu and use the OK/SNOOZE knob to select > [Main menu] > [Sleep]. -
Page 25: System Settings
15 System settings In the system settings you will find the multifunction settings for the device. You can access the system settings as follows: > Press the MENU button and select [Main menu] > [System settings]. 15.1 Equalizer Here you can make sound settings to adjust the sound to your liking. You can adjust the treble or bass tones and save them in the My Equalizer area or select presets. -
Page 26: Highlight
15.3 Highlight Under [System Settings] > [Lighting], you can adjust the brightness of the display for operation and standby mode. You can choose between high, medium and low or switch off in standby mode. The auto dimming function dims the display after set time in standby mode. -
Page 27: Configuration Wizard
> Select [Allow Wi-Fi connection in standby mode] if you want the Wi-Fi connection to remain in standby mode. This setting increases power consumption, but allows control via the TechniSat CONNECT app. 15.8 configuration wizard > Press the MENU button, then select [Main menu] > [System settings] > [Configuration wizard]. -
Page 28: Cleaning The Appliance
> Select [Check now] if you want to check now if a newer software version is available. If a software update is found, follow the on-screen instructions. To find and download software updates, the device must be connected to the Internet. - Page 29 17.2 Problems with device Symptom Possible cause / solution The device cannot be switched on. Charge the battery or connect the power supply to the radio. Turn on the power switch. No sound can be heard. Turn up the volume. If you want to listen through the speakers, disconnect the headphone plug from the device.
- Page 30 Please keep your fiscal receipt as proof of purchase. If you have any warranty claims, please contact the seller of the product. TechniSat declares that the Transita 121 IR radio system type complies with the Directive Seite 30...
- Page 31 Your device carries the CE mark and meets all required EU standards. Subject to changes and printing errors. Copying and reproduction only with permission of the publisher. TechniSat ist eine Marke der TechniSat Digital GmbH Julius-Saxler-Straße 3 D-54550 Daun/Eifel www.technisat.de...
