Summary of Contents for TechniSat DIGITRADIO 143

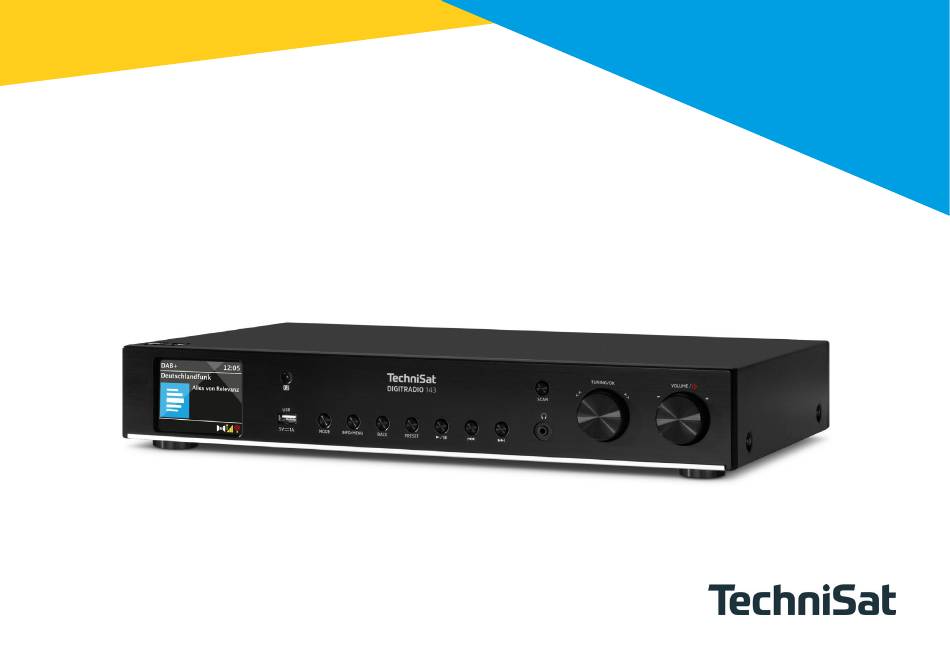

- Page 1 Operating instructions DIGITRADIO 143 For device generation V3...
-
Page 2: Table Of Contents
Table of contents ........................2 Safety instructions ........................6 Characters and symbols used..........................6 Intended use ................................7 The target group of these operating instructions .....................7 Safe handling of the DIGITRADIO 143 ........................7 Waste disposal ................................9 Legal information..............................10 Service instructions..............................11 Illustrations and description .......................12 Connecting and operating the device....................16... - Page 3 Spotify Connect .........................22 The DAB+ function........................23 DAB+ radio reception ............................23 Perform search run..............................23 Select transmitter ..............................24 Saving DAB stations..............................24 Selecting the programmed stations........................24 Deleting a programme position memory .......................25 Signal strength...............................25 Set DRC.................................26 Delete inactive stations ............................26 8.10 Adjust channel order .............................26 VHF operation ..........................27 Switching on FM radio operation ...........................27 FM reception with RDS information........................27...
- Page 4 12.3.2 Fast search run ..............................32 12.3.3 Repeat function ..............................32 12.3.4 Random playback..............................32 Advanced functions........................33 13.1 Sleep timer ................................33 13.2 Alarm clock ................................33 13.2.1 Setting the alarm time............................34 13.2.2 Switch off alarm clock after alarm/Snooze......................34 13.2.3 Deactivate alarm clock ............................35 13.2.4 Switch on/activate alarm clock..........................35 13.3 Use headphones ..............................35...
- Page 5 14.7 Setup assistant ..............................40 14.8 Info ..................................41 14.9 Data protection ..............................41 14.10 Display illumination ..............................41 Cleaning ..........................41 Eliminate errors ........................42 16.1 General problems..............................42 16.2 Problems with USB media ............................43 16.3 Problems with the remote control ..........................43 16.4 Problems with the radio............................44 16.5 Problems with the external input ...........................44 Technical data ..........................45...
-
Page 6: Safety Instructions
2 Safety instructions 2.1 Signs and symbols used in these instructions: Indicates a safety instruction that can lead to serious injury or death if ignored. Note the following signal words: DANGER - Serious injuries with fatal consequences WARNING - Serious injuries, possibly fatal ATTENTION - Injuries Indicates a note that you must observe to avoid device defects, data loss/misuse or unintentional operation. -
Page 7: Intended Use
The operating instructions are intended for any person who sets up, operates, cleans or disposes of the appliance. 2.4 Safe handling of the DIGITRADIO 143 Please observe the following instructions to minimise safety risks, avoid damage to the appliance and contribute to environmental protection. - Page 8 Do not expose the appliance to dripping or splashing water. If water gets into the appliance, disconnect it from the power supply and contact the service centre. Do not expose the appliance to heat sources that heat the appliance in addition to normal use. In the event of a conspicuous appliance defect, odour or smoke development, significant malfunctions or damage to the housing, contact the service department immediately.
-
Page 9: Waste Disposal
2.5 Waste disposal The packaging of your appliance consists exclusively of recyclable materials. Please sort them accordingly and return them to the "Dual System". This product is labelled in accordance with Directive 2012/19/EU on waste electrical and electronic equipment (WEEE) and must not be disposed of with normal household waste at the end of its service life, but must be handed in at a collection point for the recycling of electrical and electronic equipment. -
Page 10: Legal Information
Subject to changes and printing errors. As of 03/23. Copying and reproduction only with the authorisation of the publisher. The latest version of the manual is available in PDF format in the download area of the TechniSat homepage at www.technisat.de. -
Page 11: Service Instructions
For questions and information or if there is a problem with this device, please contact our technical hotline: Mon. - Fri. 8:00 - 18:00 under Tel.: 03925/9220 1800. Repair orders can also be ordered directly online at www.technisat.de/reparatur. If you need to return the device, please use only the following address: TechniSat Digital GmbH Service Centre Nordstr. -
Page 12: Illustrations And Description
3 Illustrations and description Front view 11 12 Rear view 19 20... - Page 13 Description Front view Display shows information on the selected source or the menu. IR receiver USB port for playback of e.g. MP3s on USB sticks or USB hard discs. Charging external devices (5V, 1A charging current). MODE for switching the playback sources DAB+, FM, Bluetooth, Line-IN, Internet radio/podcasts, Spotify and music playback via USB.
-
Page 14: Remote Control
Description Rear view Remote control Mains connection cable for connection to 110-240 V ~ 50/60Hz. WLAN antenna Wireless connection to a router. Audio-Out Analogue for connection to an A/V receiver or a stereo system. Audio input / output Analogue (Line-IN / OUT 3.5mm jack). Optical-Out Digital Audio output for connection to an A/V receiver or a stereo system. -
Page 15: Sound Muting
Description Remote control Snooze Activates the snooze function during an active alarm clock. Play/pause only in USB/Bluetooth playback mode, pause/resume playback. Track skip/search back only in USB/Bluetooth playback mode. Press briefly to restart the current track, press twice to skip to the previous track, press and hold to rewind. Title Repetition Shuffle random playback of the tracks. -
Page 16: Connecting And Operating The Device
4 Connecting and operating the device 4.1 Scope of delivery The scope of delivery includes 1x DIGITRADIO 143, 1x operating instructions, 1x remote control + remote control, antenna for DAB+/UKW, WLAN antenna 4.2 Insert baUeries > Slide open the battery compartment cover on the back of the remote control. Insert two "AAA" (Micro) size 1.5 V batteries into the battery compartment, observing the specified polarity. -
Page 17: Connection
Then plug the mains cable into a 110-240V ~ 50/60Hz mains socket. 4.4 Switch on / Switch off To switch on the DIGITRADIO 143, press the volume/ > rotary control on the device (14) or on the remote control (14). -
Page 18: Operation Menu
4.7 Operation menu The menu is divided into the main menu, the submenu of the currently selected source and the system settings, which apply to all sources. The menu is operated using the TUNING/OK rotary control (13) on the device or using the up/down arrow buttons (22, 24) and the OK button (9) on the remote control. -
Page 19: Mute Switch On
4.8 Mute Switch on You can mute the volume using the Mute button (13). "Mute" appears on the display and in the status bar > > Pressing the button again switches the sound back on. 4.9 Call up display screens By pressing the INFO button (6) several times while playing a source, you can display and switch through further station >... -
Page 20: Initial Setup
> Here you can select the source (DAB+, FM or Internet) from which the DIGITRADIO 143 obtains and updates the time and date. Once you have made your selection, enter the time zone in the next step so that the time is displayed correctly (if updating via the Internet has been selected). -
Page 21: Internet Radio And Podcasts
6 Internet radio and podcasts The DIGITRADIO 143 is equipped with an Internet radio receiver. To be able to receive Internet radio stations/transmitters or podcasts, you need an Internet connection to a wireless network. You can read how to set up an Internet connection in chapter 14.2. -
Page 22: Saving Internet Radio Stations
6.3 Saving Internet radio stations The favourites memory can store up to 30 stations. The stored transmitters are retained even in the event of a power failure. > Set the desired channel. Press and hold the PRESET button until [Save favourite] appears on the display. You can now use the up/down >... -
Page 23: The Dab+ Function
8 The DAB+ function DAB+ is a digital format that allows you to listen to crystal-clear sound without noise. Unlike conventional analogue radio stations, DAB+ broadcasts several stations on the same frequency. You can f i n d more information at www.dabplus.de www.dabplus.ch, for example. -
Page 24: Select Transmitter
8.3 Select transmitter You can check the stations found on the device. To do this, press ▲ or ▼, the station list appears. > To select a channel, press OK. > Alternatively, you can also press the MENU button and select with ▲ or ▼ > [Channel list]. >... -
Page 25: Deleting A Programme Position Memory
8.6 Deleting a programme position memory > Simply save a new channel to the respective programme position as described under point 8.4. 8.7 Signal strength Press the INFO button several times until the signal strength is displayed: > Signal strength Minimum signal strength >... -
Page 26: Set Drc
8.8 Set DRC The compression rate compensates for dynamic fluctuations and the associated volume variations. Press the MENU button and select > [Volume adjustment] to select the desired compression rate. > > Use to select the compression rate: DRC high -High compression DRC low -Low compression... -
Page 27: Vhf Operation
9 VHF operation 9.1 FM radio operation Switch on Press the MODE button until [FM radio] appears in the display. Alternatively: > Press the MENU button and then select > FM in the main menu. > If you are in a submenu, select the main menu as described in section 4.7. When switching on for the first time, the frequency is set to 87.5 MHz. -
Page 28: Automatic Channel Selection
9.4 Automatic channel selection Press the SCAN button to start the automatic station search. The station frequency will flash upwards on the display. > ▲ ▼ for > Press and hold approx. 2 seconds to automatically search for the next station with sufficient signal. If an FM station with a sufficiently strong signal is found, the search stops and the station is played. -
Page 29: Selecting The Programmed Stations
Use the ▲ or ▼ buttons to select a memory location 1...30 and press the OK button. [Saved] appears on the display. > Alternative: Press one of the number buttons 1 ... 10 and hold it down until [saved] appears on the display. >... -
Page 30: Couplings
Please note that only one device can connect to the DIGITRADIO 143 at a time. > Select the list of Bluetooth devices found on your external music player. Search for the entry DIGITRADIO 143 in the list and select it. If you are prompted to enter a PIN, enter 0000 (4x > zero). -
Page 31: Audio Input
12 USB music playback Supported music files (MP3) on a USB mass storage device can be played on the DIGITRADIO 143. To do this, plug the USB mass storage device, e.g. a USB stick, into the USB socket (3) on the front of the DIGITRADIO 143. -
Page 32: Set Title
12.3.1 Set title Select MENU > [USB playlist] to access music folders or MP3 files directly. Use the up/down arrow buttons to > select a music track and press OK to play it. Use the track skip forward/back buttons (3, 15) on the remote control to skip to the next or previous track. >... -
Page 33: Advanced Functions
13 Advanced functions 13.1 Sleep timer The sleep timer allows you to switch the DIGITRADIO 143 to standby automatically after a preset time. Press the MENU button and then select > Sleep in the main menu. > If you are in a submenu, select the main menu as described in section 4.7. -
Page 34: Setting The Alarm Time
13.2.1 W Set corner time You can only use the alarm function once the correct time has been set. Depending on the configuration, this is done automatically or must be set manually. The time can either be set manually or updated automatically via DAB FM or the Internet. -
Page 35: Deactivate Alarm Clock
> Only use headphones with a 3.5 millimetre jack plug. Insert the headset plug into the headset socket (11) on the front of the DIGITRADIO 143. > When the headphones are connected, the sound is played back in parallel via the headphones and via the audio outputs. -
Page 36: System Settings
> 14.1 Equaliser To adjust the sound of the DIGITRADIO 143, you can use the equaliser with preset settings for normal, classical, rock, pop and jazz. You can call up the equaliser settings via MENU > System settings > Equaliser. Alternatively: >... -
Page 37: Configuration Via Wps Function
If you want to enter your WLAN password manually or your router does not support the WPS function, select [Skip WPS]. > Then enter your WLAN password using the virtual keyboard that appears and confirm by selecting OK. > The password entered will now be checked. This process is usually completed after a few seconds and the WLAN connection can now be used. -
Page 38: Show Settings
The manual setting of the connection parameters is described for a wireless network (WLAN) in section 14.2.4.3. 14.2.3 RetRemote PIN setup Under certain circumstances, it may be necessary to secure the connection to the DIGITRADIO 143 with a PIN. Enter a 4-digit PIN under [NetRemote PIN setup]. >... -
Page 39: Daylight Saving Time (Only When Updating Net)
> 14.4 Language You can select your preferred menu language via MENU > System settings > Language. > 14.5 Factory setting Call up MENU > System settings > Factory settings to reset your DIGITRADIO 143 to the factory > settings. -
Page 40: Sokware Update
14.7 Setup wizard The setup wizard starts automatically when you switch on the DIGITRADIO 143 for the first time, after calling up the factory settings or manually under MENU > System settings > Setup wizard. You can find out how to configure the setup wizard under point 5. -
Page 41: Info
14.8 Info Go to MENU > System settings > Info to display the software version currently installed in the device and, for example, > the Spotify version. 14.9 Data protection Display the current privacy policy under MENU > System settings > Privacy policy. >... -
Page 42: Eliminate Errors
Rub the cotton cloth gently over the surface until it is completely dry. 16 Eliminate errors If the device does not work as intended, check it using the following tables. 16.1 General problems Symptom Possible cause/remedy Device cannot be switched on. The device is not supplied with power. -
Page 43: Problems With Usb Media
16.2 Problems with USB media Symptom Possible cause/remedy No playback possible. The device is not in USB mode. Press MODE to switch to the respective source. Medium not inserted or empty. Insert the medium correctly or record music data on 16.3 Problems with the remote control Symptom Possible cause/remedy... -
Page 44: Problems With The Radio
16.4 Problems with the radio Symptom Possible cause/remedy No radio station is received. The device is not in radio mode. Press the MODE button and select DAB or FM. No DAB signal is received. Check whether DAB reception is possible in the region. -
Page 45: Technical Data
17 Technical data Reception paths DAB+, FM, Bluetooth, Internet, Spotify Connect, USB WLAN frequencies WIFI: 802.11b, g, a, n, 2412 - 2472 MHz (max. +20 dBm EIRP), 5180 - 5700 MHz (max. +11.12 dBm EIRP) Bluetooth V4.2+EDR, 2402 - 2480 MHz (max. 3.2 dBm Class II) L2CAP/A2DP Display 3.2"... -
Page 46: Notes
18 Notes... - Page 48 Everything about your TechniSat product in an agg.
- Page 49 V3X14032023ORV4SA...
