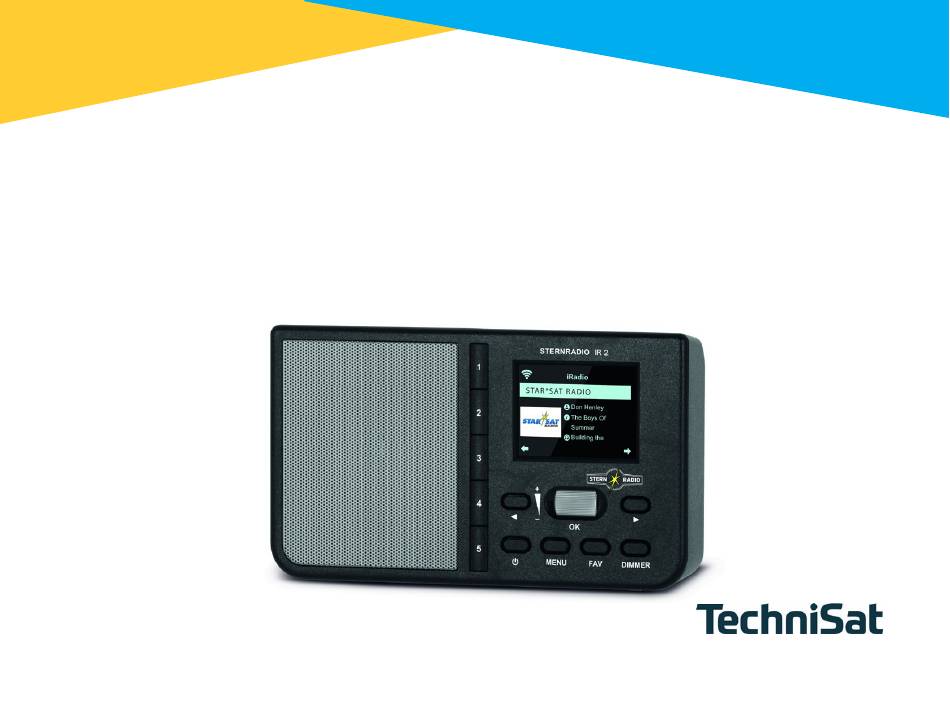

  • Page 1 Operating instructions STERNRADIO IR 2 Internet radio with battery operation...
  • Page 2 1 Illustrations 1.1 View from the front...

  • Page 3: Rear View

    1.2 Rear view...
  • Page 4 Direct dialling buttons Display ◀ Back/reduce value On/standby Menu Favourites memory Dimmer display brightness ▶ Increase pre/value NAV/SELECT/OK Scroll wheel/volume+/- Rotate in the menu - Navigation up/down Press in the menu - OK (select) Turn during playback - Change volume On/off switch (mains switch) DC-IN USB socket for external power supply AUX-IN connection...

  • Page 5: Table Of Contents

    Legal information ................15 Service notes ....................17 Setting up the appliance ..............18 Description of the STERNRADIO IR 2..........20 The scope of delivery..................20 The special features of the STERNRADIO IR 2..........20 Preparing the STERNRADIO IR 2 for operation ..........21 6.3.1 Insert battery....................21...
  • Page 6 6.3.2 Connecting the power supply unit..............23 6.3.3 Use headphones .....................24 General device functions .................25 6.4.1 Switch on the device ..................25 6.4.2 Switch off the device ..................25 6.4.3 Setting the volume ...................26 Menu operation................26 Initial setup ................27 Internet radio................29 Playing radio stations/music ................30 Last heard......................30 Add favourites....................30 Retrieve favourites...................31...
  • Page 7 AUX audio input ................34 11.1 Local stations....................34 Settings ..................36 12.1 Time display.....................36 12.2 Manage My mediaU ..................36 12.3 Network ......................36 12.3.1 WPS network connection.................37 12.3.2 Manual configuration ..................38 12.3.3 Manage network ....................39 12.4 Time and date settings ..................39 12.4.1 Set time/date ....................39 12.4.2 Setting the time format..................40 12.4.3...
  • Page 8 12.10 Display......................47 12.11 Sleep timer.......................47 12.12 WeGer ......................48 12.13 Local station settings..................49 12.14 Playback settings.....................49 12.15 Device......................50 12.16 Equaliser......................50 12.17 Resume playback ....................50 12.18 Sokwareupdate....................51 12.19 Factory setting ....................51 Cleaning..................52 Eliminate errors ................53 Technical data / manufacturer's information ........54...

  • Page 9: Safety Instructions

    3 Safety instructions 3.1 Characters and symbols used In these operating instructions: Indicates a safety instruction that can lead t o serious injury or death if ignored. Observe the following signal words: DANGER - Serious injuries with fatal consequences WARNING - Serious injuries, possibly fatal ATTENTION - Injuries Indicates a note that you must observe to avoid device defects, data loss/misuse or unintentional operation.
  • Page 10 Protection class II - Electrical appliances in protection class II are electrical appliances that h a v e continuous double and/or reinforced insulation and no connection options for a protective conductor. The housing of an insulated electrical appliance of protection class II can partially or completely form the additional or reinforced insulation.

  • Page 11: Intended Use

    The operating instructions are intended for any person who sets up, operates, cleans or disposes of the appliance. 3.4 Safe handling of the STERNRADIO IR 2 Please observe the following instructions to minimise safety risks, avoid damage to the appliance and contribute to environmental protection.
  • Page 12 Observe all the following instructions for the intended use of the appliance and to prevent appliance defects and personal injury. Do not repair the appliance yourself. Repairs may only be carried out by trained specialists. Please contact our customer service centres. The device may only be operated in the specified ambient conditions.
  • Page 13 The appliance may only be operated with the mains voltage printed on the power supply unit. Never attempt to operate the appliance with a different voltage. If the appliance is damaged, it must not be put into operation. Do not operate the appliance near bathtubs, showers, swimming pools or running/splashing water.
  • Page 14 Safety instructions in connection with lithium-ion batteries WARNING! The STERNRADIO IR 2 is equipped with a modern, powerful Li-Ion battery that meets all safety requirements. Due to the higher hazard potential of modern rechargeable batteries, please ensure that you handle the device with care and observe the following safety instructions.

  • Page 15: Legal Information

    4 Legal information Hereby, TechniSat declares that the radio equipment type STERNRADIO IR 2 is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of conformity is available at the following Internet address: hGp://konf.tsat.de/?ID=23178 TechniSat is not responsible for product damage due to external influences, wear or improper handling, unauthorised repairs, modifications or accidents.
  • Page 16 STERNRADIO IR 2 and TechniSat are registered trademarks of: TechniSat Digital GmbH TechniPark Julius-Saxler-Straße 3 D-54550 Daun/Eifel www.technisat.de The names of the companies, institutions or brands mentioned are trademarks or registered trademarks of their respective owners.
  • Page 17 Mon. - Fri. 8:00 - 18:00 under Tel.: 03925/9220 1800. Repair orders can also be ordered directly online www.technisat.de/reparatur. If you need to return the device, please use only the following address: TechniSat Digital GmbH Service Centre Nordstr. 4a 39418 Staßfurt...

  • Page 18: Setting Up The Appliance

    5 Setting up the appliance > Place the appliance on a firm, secure and horizontal surface. Ensure good ventilation. Note: Do not place the appliance on soft surfaces such as carpets, blankets or near curtains and wall hangings. The Ventilation openings could be covered. This can interrupt the necessary air circulation.
  • Page 19 Please note that the appliance feet may leave coloured marks on certain furniture surfaces. Use protection between your furniture and the appliance. Do not place any heavy objects on the appliance. If you m o v e the appliance from a cold to a warm environment, moisture may condense inside the appliance.

  • Page 20: Description Of The Sternradio Ir 2

    1x operating instructions 6.2 The special features of the STERNRADIO IR 2 The STERNRADIO IR 2 consists of a WLAN receiver for Internet radio programmes with the following functions: The device has a colour display. Direct dialling buttons for the stations radio B2 Deutschland, radio Gold, Star*Sat Radio, Deutschlandfunk, Klassik Radio.
  • Page 21 Rechargeable battery...

  • Page 22: Preparing The Sternradio Ir 2 For Operation

    Open the battery compartment on the back of the device by pressing the tab on the battery compartment cover in the direction of the arrow. Then remove the cover. > Insert the battery of the STERNRADIO IR 2, making sure that the gold contacts are aligned with each other.
  • Page 23 > Place the battery compartment cover on the battery compartment and close it until you hear it click into place. Replace or recharge a weakening battery in good time. The STERNRADIO IR 2 battery can also be purchased separately.

  • Page 24: Connecting The Power Supply Unit

    Insert the plug of the supplied mains adapter into the socket labelled DC-IN > on the back of the STERNRADIO IR 2. Then connect the mains adapter to the mains. The battery is charged as soon as the device is connected to the mains.

  • Page 25: Use Headphones

    6.3.3 Headphones use hearing protectors! Do not listen to the radio at high volume via headphones. This can lead to permanent hearing damage. Before using headphones, set the device volume to the minimum level. Only use headphones with a 3.5 millimetre jack plug. Insert the plug of the headphones into the headphone socket on the back >...

  • Page 26: General Device Functions

    On/Standby button . Depending on the configuration, the display will show the time / date and weGer information for your location. > If you want to switch off the STERNRADIO IR 2 completely, switch the mains switch to the OFF position.

  • Page 27: Setting The Volume

    7 Menu operation The menu provides access to all functions and settings of the STERNRADIO IR 2. The menu is navigated using the MENU, ◀, ▶ buttons and the scroll wheel. The menu is divided into submenus and contains, depending on mode type different menu items or functions that can be activated.

  • Page 28: Initial Setup

    After a short time, these will then be displayed as a loud text. 8 Initial setup When the STERNRADIO IR 2 is switched on for the first time, the Initial setup wizard. All settings can also be changed at a later date at any time.
  • Page 29 Power consumption in standby mode. > You can then start the WLAN network wizard and set up an Internet connection. Select [Yes] to start the WLAN network wizard. > Select [Yes (WPS)] to start the connection with WPS (only if supported by the network router).

  • Page 30: Internet Radio

    Press the ◀ button to delete an incorrect digit/letter. 9 Internet radio The STERNRADIO IR 2 is equipped with an Internet radio receiver. To receive Internet radio stations/transmitters, you need an Internet connection via a WLAN router to a wireless network.

  • Page 31: Playing Radio Stations/Music

    9.2 Playing radio stations/music Use the scroll wheel to select [Radio station/Music] and press the scroll > wheel. Under Radio stations/Music, all Internet radio stations are displayed in different categories. > Using a category/country/genre, select a station with the scroll wheel and press the scroll wheel to play the station.

  • Page 32: Retrieve Favourites

    > Repeat this process to save additional channels. If at least one channel has already been saved, the favourites list will now appear. You can now decide whether you want to overwrite the previously saved station or add the new station to the end of the list. Use the scroll wheel to select a memory location and press the scroll wheel to save the position.

  • Page 33: Sort And Delete Favourites

    You can also assign your own channels to the direct dialling buttons. To do this, press and hold the corresponding direct dialling button or proceed as described in section 9.3. 9.7 Sort and delete favourites Press the FAV button and then use the scroll wheel to select a channel that >...

  • Page 34: Dab(Wifi)

    9.9 DAB(WIFI) The DAB(WIFI) function lists all Internet radio stations that are also available as DAB stations. This means that you do not need an aerial to receive the stations as an Internet stream. Press the MENU button and use the scroll wheel to select [DAB(WIFI)]. >...

  • Page 35: Aux Audio Input

    Then use the scroll wheel to select a track and play it back by pressing > the scroll wheel. 11 AUX audio input You can play the sound of an external device via the speakers of the STERNRADIO IR Connect the external device to the AUX IN connection (12, 3.5 mm >...
  • Page 36 > Select a category and a station in it. You can play the station by pressing the scroll wheel. For the basic operation of Internet radio operation, please refer to point You can configure the country setting under Menu > Settings > Local station setting.

  • Page 37: Settings

    12 Settings All cross-functional device settings can be found in the settings. Press the MENU button and use the scroll wheel to select > [Settings]. Press the scroll wheel. 12.1 Time display Select the display format of the time in standby mode here. You can choose between analogue or digital time display.

  • Page 38: Password Entry

    Use the scroll wheel to select your WLAN network and press the > Scroll wheel to confirm. Password entry > To enter the password, proceed as follows: The first digit is highlighted. Now turn the scroll wheel until the first digit or letter of your password is displayed.

  • Page 39: Manual Configuration

    > The connection is now established automatically. 12.3.2 Manual configuration Under Manual configuration, you must enter the reception data of your network router manually. Select [Manual configuration] and press the scroll wheel. > Select [Wireless network] and press the scroll wheel. >...

  • Page 40: Manage Network

    12.3.3 Manage network All configured networks are displayed under Manage. Select your favourite one using the scroll wheel. 12.4 Time and date settings 12.4.1 Set time/date The time and date can be entered manually or updated automatically via the network connection. Automatic To set the time automatically, select [Settings >...

  • Page 41: Setting The Time Format

    Now enter the date and then the time one after the other using the scroll > wheel. Press the ▶ button after each digit to move to the next digit. Once all settings have been made, press the scroll wheel to save >...

  • Page 42: Summer/Winter Time

    Use the scroll wheel to select [Summer/winter time (DST)] and press the > scroll wheel. Use the scroll wheel to select [ON] (summer time active) or [OFF] > (winter time active). Press the scroll wheel to accept. > 12.5 Alarm clock The STERNRADIO IR 2 has 2 alarm clocks.
  • Page 43 To configure an alarm clock, select [Settings > Alarm clock > Alarm > clock 1 or Alarm clock 2]. As an example, the alarm clock is now configured using alarm clock 1: Use the scroll wheel to select [Alarm 1] and press the scroll wheel. >...

  • Page 44: Snooze Function

    Switch off alarm clock after alarm Press the On/Standby button to switch off the alarm tone. > 12.5.1 Snooze function If you want to use the snooze function with your active alarm clock, you can switch this on or off. To switch the snooze function on or off, select [Setting >...

  • Page 45: Alarm Clock Volume

    12.5.2 Alarm clock volume To set the alarm clock volume, select [Settings > Alarm clock > Alarm > clock volume]. Press the scroll wheel. Change the volume using the scroll wheel and press the scroll wheel to > apply the setting. 12.6 Timer The timer is comparable to the function of an egg timer.

  • Page 46: On-Off Bucket

    12.7 On/Off timer The on/off timer can be used to configure a period of time during which the radio is active. It switches on automatically and then switches off again. To configure a timer, select [Setting > On/Off timer] and press >...

  • Page 47: Language

    > The timer is now active and switches the STERNRADIO IR 2 on and off again at the set time. If you want to deactivate the timer, select [Settings > On/Off timer] > [Off]. 12.8 Language To configure the menu language, select [Settings > Language] and >...

  • Page 48: Display

    Use the scroll wheel to select either [Colour] or [Monochrome]. > and press the scroll wheel to accept the setting. 12.11 Sleep timer The sleep timer automatically switches the STERNRADIO IR 2 to standby after the set time. To configure the sleep timer, select [Settings > Sleep timer] >...

  • Page 49: Weger

    12.12 WeUr WeGer information can be shown in standby mode in the display for your configured location, provided the connection to the Internet is active in standby mode. was switched on (Settings > Network > Check network when switching on >...

  • Page 50: Local Station Settings

    12.13 Local station settings Here you can configure the local stations via DAB(WIFI) and switch the function on or off. > To configure the local location for DAB(WIFI), select [Settings > Local station settings] and press the scroll wheel. Select [Local setting] and [Auto detect] if you want the location to be >...

  • Page 51: Device

    12.15 Device Under Settings > Device, you can change the device name and call up information on app control and data protection. 12.16 Equaliser You can use the equaliser to adjust the sound with various pre-programmed sound curves. Select [Setting > Equaliser] and press the scroll wheel. >...

  • Page 52: Sokwareupdate

    12.18 SoŁwareupdate If a new device software update is available, this will be displayed in this submenu. Follow the instructions on the display a n d do not disconnect the device from the power supply during the update. This could destroy the device or lead to malfunctions.

  • Page 53: Cleaning

    13 Cleaning To avoid the risk of electric shock, do not clean the appliance with a wet cloth or under running water. Disconnect the mains plug and switch off the appliance before cleaning! Do not use scouring pads, scouring powder or solvents such as alcohol or petrol.

  • Page 54: Eliminate Errors

    14 Eliminate errors If the device does not work as intended, check it using the following table. Symptom Possible cause/remedy Device cannot be switched on. The device is not supplied with power. Connect the power supply unit correctly to the socket and to the device.

  • Page 55: Technical Data / Manufacturer's Information

    15 Technical data / manufacturer information Technical changes and errors excepted. Reception paths Internet, network, AUX Power supply DC 5 V / 1 A via supplied mains adapter Battery: Li-Ion BL-5C, 3.7 V/ 1050 mAh Connections AUX 3.5 mm jack Headphone: 3.5 mm jack Power supply connection: MicroUSB...
  • Page 56 Dimensions (WxHxD) mm 180 x 107 x 50...
  • Page 57 Technical data of the supplied power supply unit Manufacturer TechniSat Digital GmbH (local court WiGlich HRB 11561) Julius- Saxler-Straße 3 D-54550 Daun Model identifier AD0600501000EU Input voltage AC 100 - 240 V Input alternating current frequency 50/60 Hz Output voltage DC 5.0 V...
