Figure 2-11
2.4

Accessory Power Port

Figure 2-12
ASD.Document 600540 Rev. C
Note the location of the computer interface connection.
back panel containing the Ethernet port, which is labeled
"RJ45/ETHERNET".
With the FieldSpec spectroradiometer and the instrument controller fully
powered-down and turned-off, plug the Ethernet (cross-over) computer cable
into the Ethernet ports of the spectroradiometer and your instrument
controller.
Standard Ethernet Cross-Over cable (shielded).

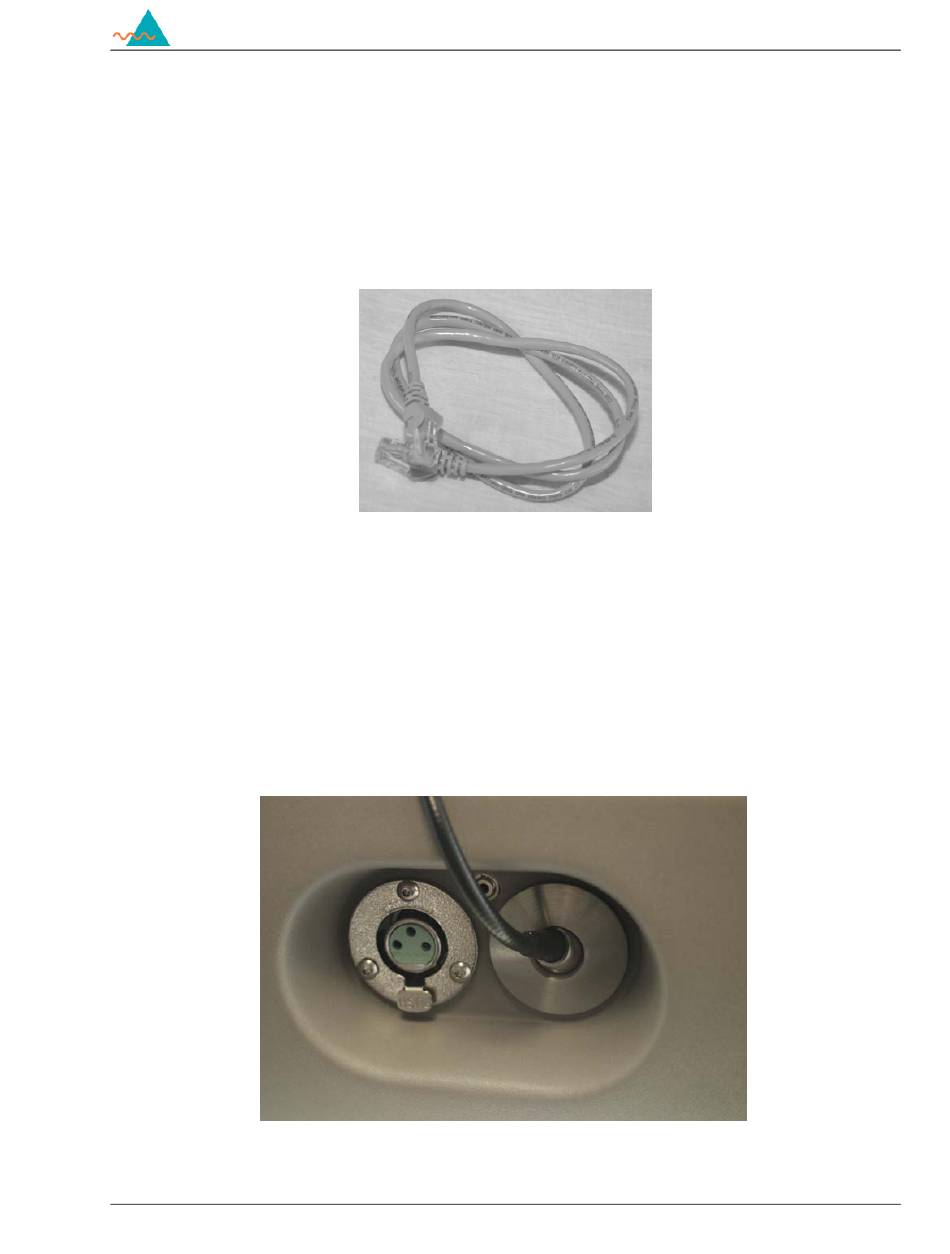

The accessory power port is located on the front of the unit, as is shown in
Figure
2-12. This port is where external accessories, such as the Contact
Probe or Source Probe (mug light), attach to receive power from the
spectrometer.
Enhanced view of the front panel with the fiber cable connector and accessory
power port.
