ASD EL00IG Manual

Specifications

Frequency: 433.39 MHz.
Security: 128-bit AES encryption.
Range: up to 50 metres.
Battery life: up to 6-10 years.
Battery type: 14500 mA battery.

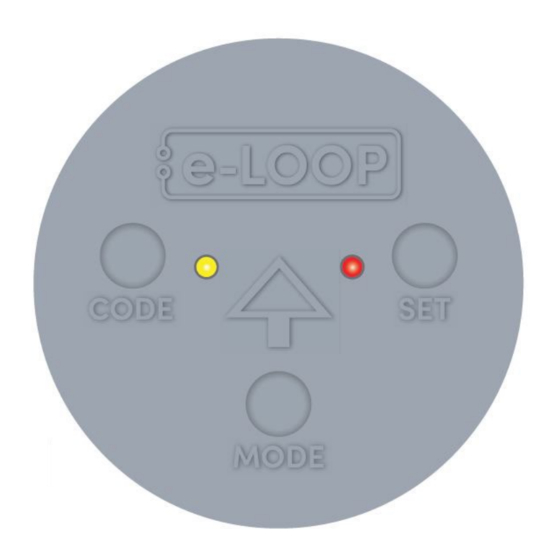

Wireless Vehicle Detection System
EL00IG and EL00IG-RAD

Installation in 3 simple steps

STEP 1:
Coding e-LOOP into e-Trans 50
Coding e-LOOP without magnet
1. Power up the e-TRANS-50 and hold the e-Loop
within 10cm of the transceiver's antenna.
2. Now press and release the CODE button on the
e-Trans 50. The yellow and red LEDs will flash on
the e-Loop, and the blue LED on the e-TRANS-50
will flash 3 times. The systems are now paired.
NOTE: For coding e-TRANS-200 LCD transceivers, refer
to e-TRANS-200 manual.
Coding e-LOOP without magnet
1. Power up the e-TRANS-50, then press and release the
CODE button. The blue LED on the e-TRANS-50 will
light up.
2. Now place the magnet on the CODE recess on the e-
Loop – the yellow LED will flash 3 times, and the blue
LED on the e-Trans 50 will flash 3 times. The systems
are now paired and you can remove the magnet.
T: +353 0 4734550
E. sales@asdltd.com
www.asdltd.ie
MAGNET

Installation Warnings

The e-LOOP should be installed in a location
that is always visible. Do not place the e-
LOOP in a dip or area where snow or water
can sit. Keep e-LOOP central in the driveway
so as it passes directly underneath the
vehicles.
DISCLAIMER: UNITS WITH THE PRESENCE
FEATURE IS NOT TO BE USED AS A SOLE SAFETY
DEVICE & SHOULD BE USED IN CONJUNCTION
WITH STANDARD GATE SAFETY PRACTICES.
PLACING MAGNET INTO
BUTTON RECESS.
