Figure 2-7
Figure 2-8
ASD.Document 600540 Rev. C

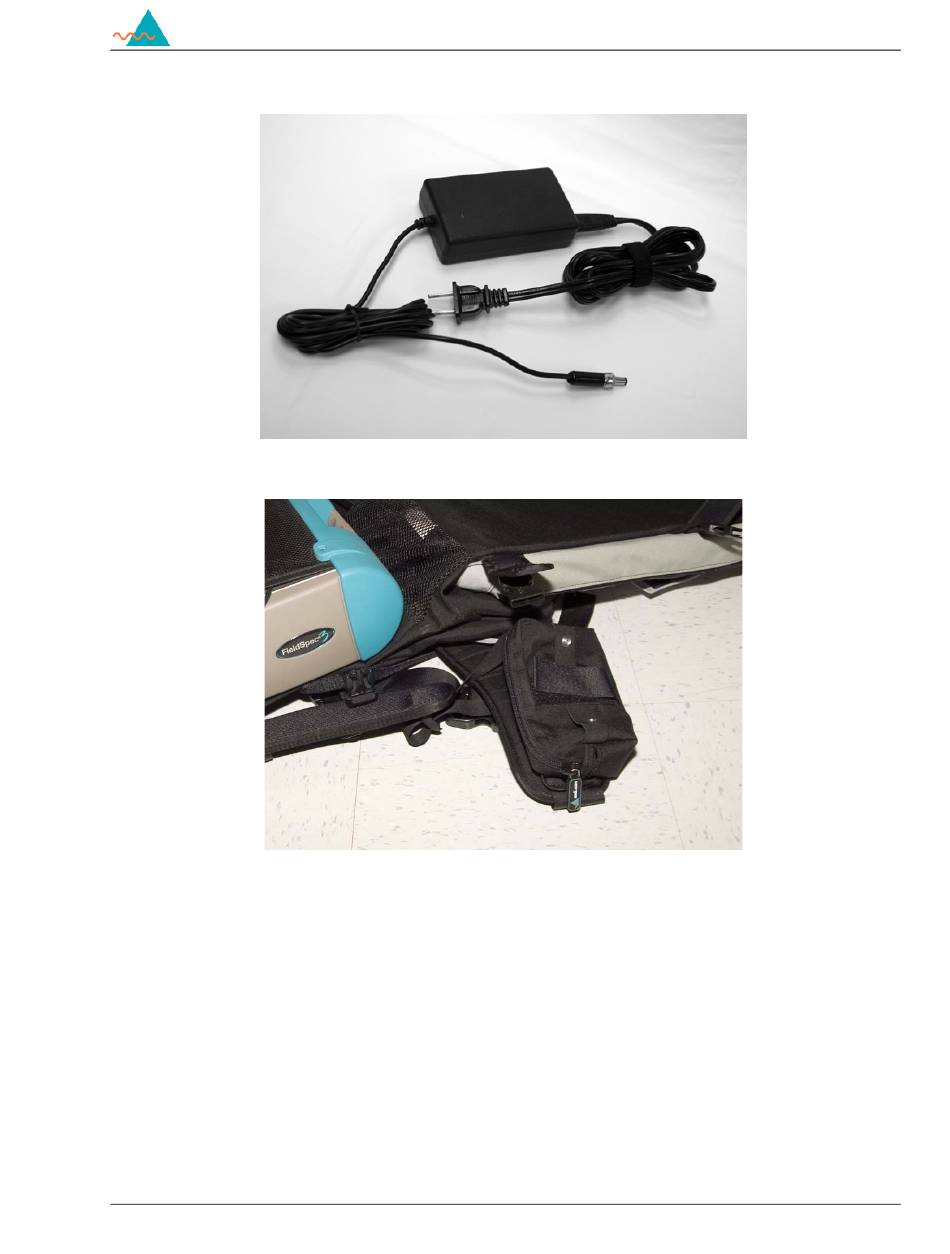

FieldSpec spectroradiometer power supply and cables.
Portable battery packs (one on each side of hip belt).
The Ergonomic Pro-Pack has two pouches on the hip belt, either of which can
be used to hold the battery. However, the battery should be on the opposite
side from where the fiber optic cable will be.
Both the external AC power supply and the DC battery pack have the
appropriate power connector
spectroradiometer on the back panel
15
(Figure 2-9) to connect to the FieldSpec
(Figure 2-10).
FieldSpec® 3 User Manual
Chapter 2 Setup
