2.3
Ethernet Cables
ASD.Document 600540 Rev. C

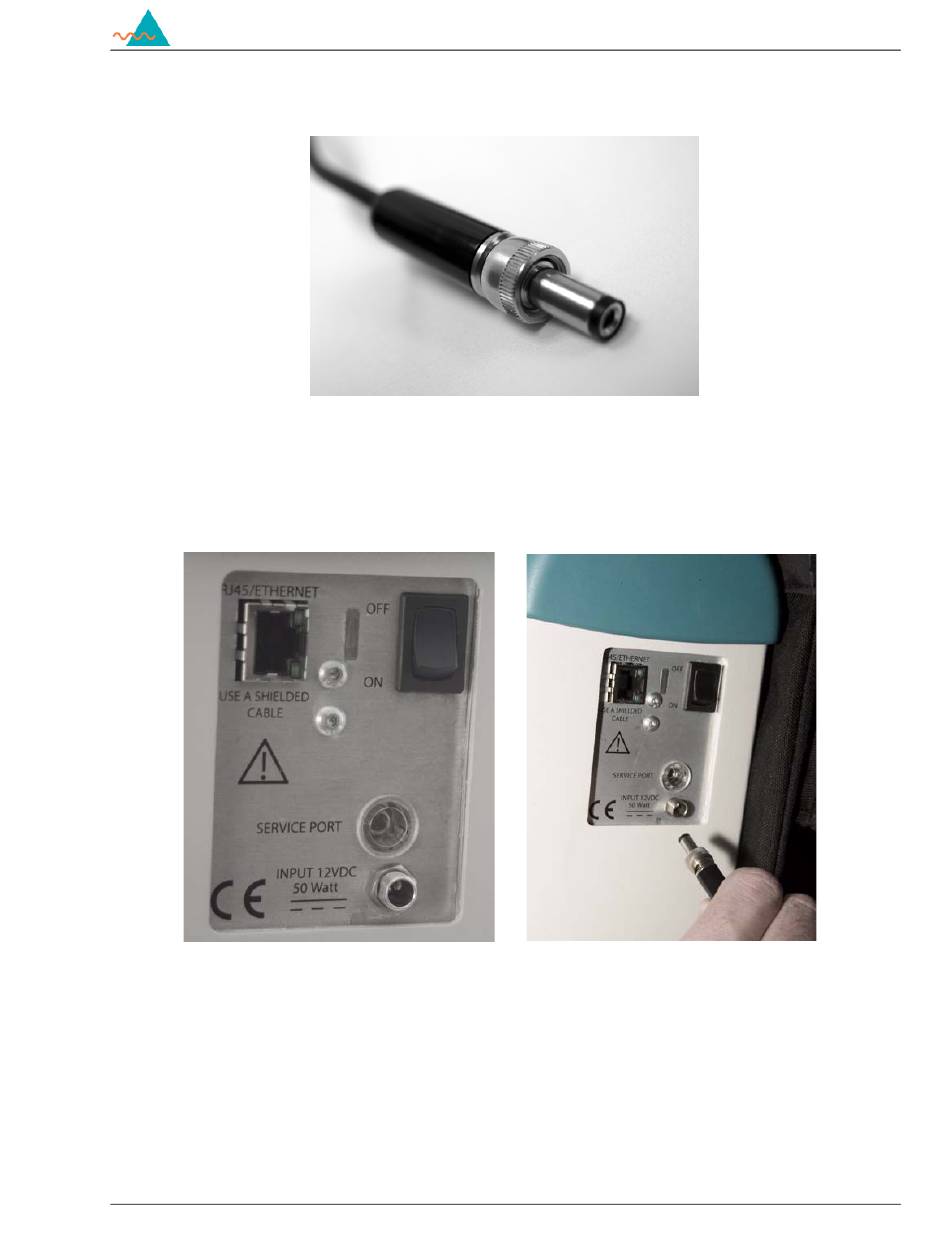

FieldSpec spectroradiometer power connector which plugs into the
instrument.
Insert power (battery or power supply) into the receptacle on the back panel
labeled "INPUT 12 VDC 50 WATT". Lock the connector in place by
twisting the barrel end of the connector clockwise.
FieldSpec spectroradiometer back panel showing Ethernet connection, power
switch, and power input jack.
For Information about configuration of the Ethernet card and cable please
refer to the Installation Guide.
