Figure 2-18
Step 13
Step 14
Step 15
Step 16
Figure 2-19
ASD.Document 600540 Rev. C

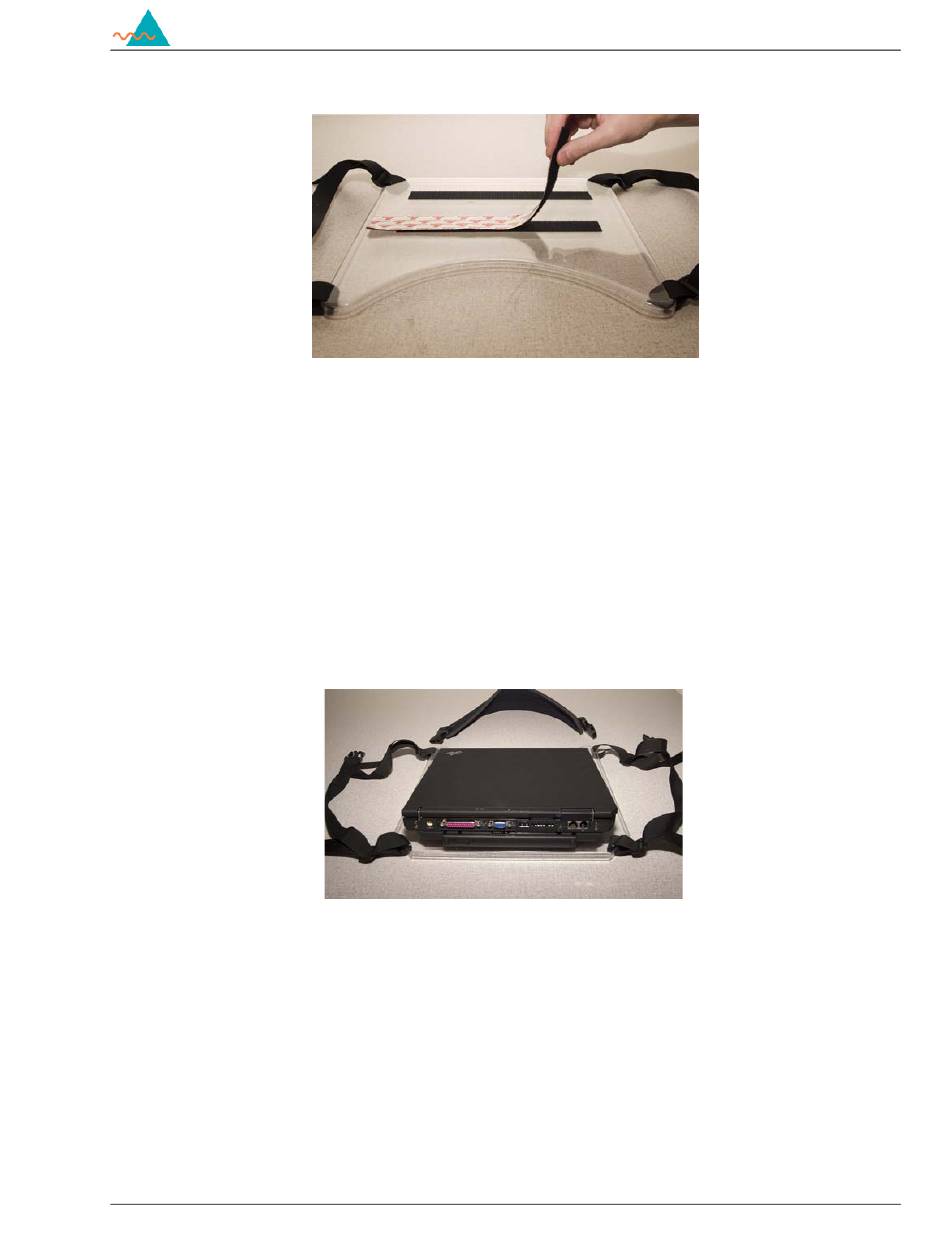

Placing velcro pieces on the belly board and instrument controller.
With the hook & mesh velcro still mated, remove the backing from the
adhesive side on the mesh side of one strip.
Recall the instrument controller's placement on the belly board from
Set the instrument controller onto the exposed adhesive of the mesh side of
the velcro. Press down firmly.
Gently separate velcro of the instrument controller from that of the belly
board. Smooth over the velcro strips on both the instrument controller and
belly board.
Repeat from
Step 13
for the other velcro strip.
The end result is shown in
The belly board with instrument controller and neck strap.
22
Figure
2-19.
FieldSpec® 3 User Manual
Chapter 2 Setup
Step
6.
