MAX98360 Evaluation Systems

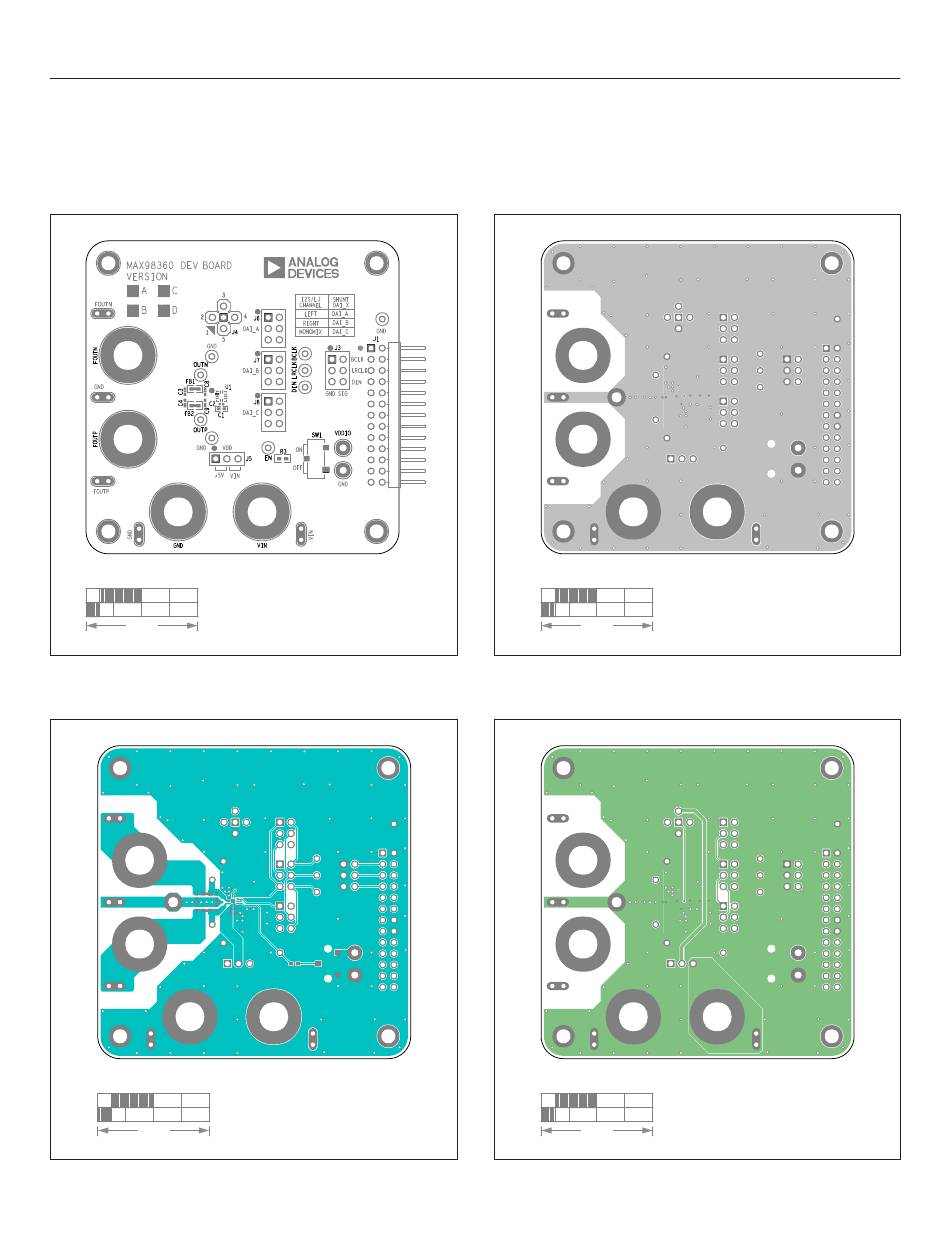

MAX98360 EV System PCB Layout Diagrams
1"
MAX98360 EV System—Top Silkscreen
1"
MAX98360 EV System—Top
www.analog.com
Evaluates: MAX98360A/MAX98360B/
MAX98360C/MAX98360D (FCQFN)
1"
MAX98360 EV System—Inner 1
1"
MAX98360 EV System—Inner 2
Analog Devices │ 9
