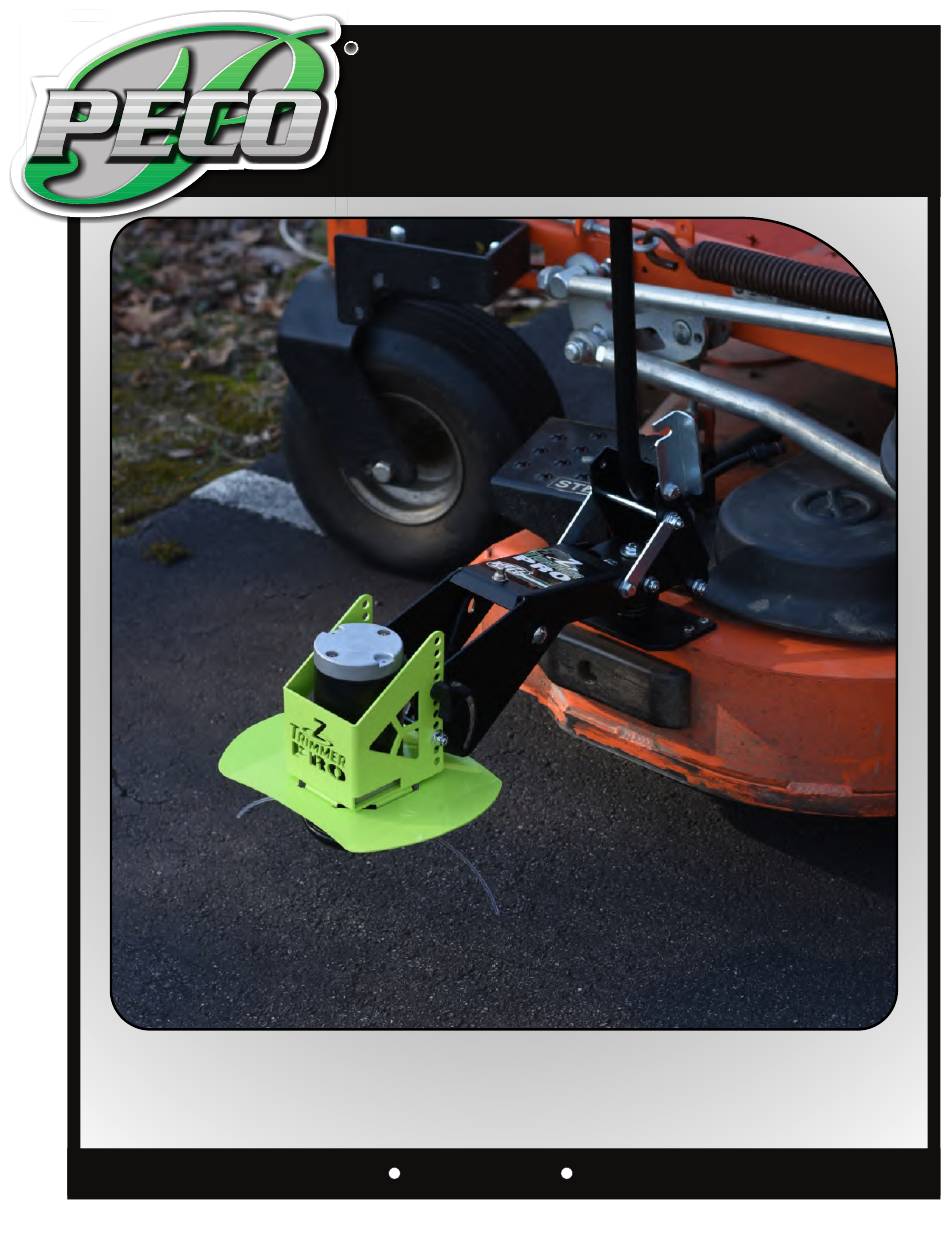

- Page 1 P P P P P P ZT-5000 PECO PECO PECO PECO PECO TRIM LIKE A PRO OPERATOR’S MANUAL ASSEMBLY OPERATION MAINTENANCE MANUAL PART#: Q0605 Initial Release - Feb 2024...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION PAGE SECTION PAGE Safety - - - - - - - - - - - - - - - - - - - - - - - - -2-4 V Trimmer Line- - - - - - - - - - - - - - - - - - - - - - - - - 9 Safety Alert Symbols - - - - - - - - - - - - - - - - - 3 VI Battery Box Mounting - - - - - - - - - - - - - - - - - - - - 9 Introduction - - - - - - - - - - - - - - - - - - - - - - - - - 5... -
Page 3: Safety
SAFETY WARNING! Do not work around the mower deck area until you are certain that the mower blades and the trimmer have stopped rotating. WARNING! To avoid serious injury, perform maintenance on your unit; ONLY AFTER STOPPING THE MOWER’S ENGINE AND WAITING FOR ALL MOVING PARTS TO COME TO A COMPLETE STOP. Set the parking brake. - Page 4 BATTERY SAFETY · Charge the battery pack only with the included charger. · Allow battery to cool before recharging. · Always use the included battery box during operation. Do not allow the battery pack or charger to overheat. If they are warm, allow them to cool down. ·...
-
Page 5: Introduction
Section 1 Introduction Thank you for purchasing the newly released PECO Z-Trimmer Pro model number ZT-5000. We took all the great features our customers have grown to love, and improved them for greater durability and performance. The Z-Trimmer Pro is an attachment for your riding mower, zero-turn mower, stand on mower or tractor, that allows you to trim and mow at the same time. -
Page 7: Mounting Instructions
Figure A Section 2 Mounting Instructions Mark and Drill Mark and Drill Holes NOTE: The Z-Trimmer Pro is designed to fit most styles Holes of mowing decks. We recommend using 4 mounting Base Plate holes to secure the Z-Trimmer Pro to the mowing deck. The style of mowing deck on your machine will determine which mounting holes you will use. -
Page 8: Edging
Edging Trimming (cont.) To position the trimmer head for edging, loosen the To activate trimmer head flip the switch to the ( I ) star knob shown in Figure B, rotate the trimmer position. To de-activate the trimmer head flip the switch head into the position desired for edging and re- to the ( O ) position. -
Page 9: Trimmer Line
Pull each end taught and adjust if uneven. Refer to Figure A. Any 0.095”- 0.135” line is acceptable however to order more of the included trimmer line P#(ZT-0129), contact PECO at (800) 438-5823. Insert Line Into Both Holes Section 6 Battery Box Mounting The Battery Box is designed to fit most styles of mower ROPS however it can be mounted anywhere that is suitable. -
Page 10: Connecting The Battery
Section 7 Connecting the Battery With the Z-Trimmer Pro and Battery Box secured ensure the power switch is in the off position and connect the Battery (ZT-0127) to the Battery Extension Harness (ZT-0130) aligning the flat edges of both terminals and tightening the securing nut. -
Page 11: Tips And Recommendations
Section 8 Tips and Recommendations — Inspect the Z-Trimmer Pro before each and every use. Examine the base plate to ensure the Z-Trimmer Pro is tightly secured to your machine. Make sure the power cable is secure. Check all moving parts for damage or obstruction. -
Page 12: Exploded Views & Parts Lists

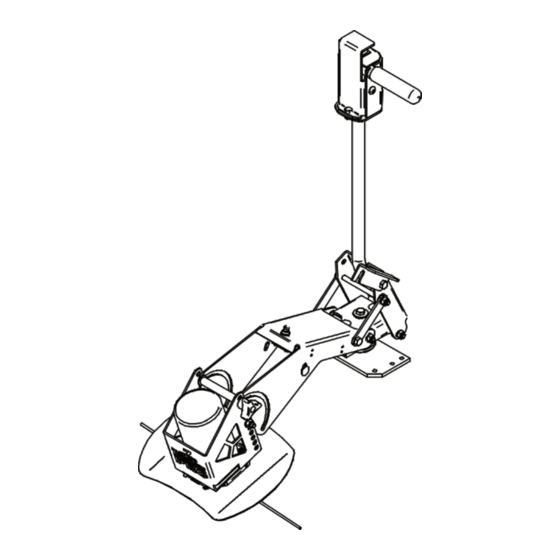

ZTA-0200 Z-Trimmer Pro Assembly Exploded View... - Page 13 ZTA-0200 Z-Trimmer Pro Assembly Exploded Parts List...
- Page 14 ZTA-0004_01 Pivot Block Assembly Exploded Parts List...
- Page 15 ZTA-0201 Batery Box Exploded View...
-
Page 16: Z-Trimmer Pro Wiring Kit
Z-Trimmer Pro Wiring Harness / ZT-5000... -
Page 17: Safety Decals
SAFETY DECALS To promote safe operation, New PECO, Inc. supplies safety decals on all products manufactured. Damage can occur to safety decals either through shipment, use or reconditioning. Contact your local Service Center for replacement decals. Danger/Caution Label Part# R1105... -
Page 19: Warranty
6. REMEDIED EXCLUSIVE: The only remedies the purchaser has in connection with the breach or performance of any warranty on New PECO, Inc. consumer products are set forth above. In no event will New PECO, Inc. be liable for special incidental or consequential damages. - Page 20 P P P P P P PECO PECO PECO PECO PECO New PECO, Inc. 10 Walden Dr | Arden, North Carolina 28704 Phone: 1-800-438-5823 | 828-684-1234 Fax: 828-684-0858 Email: peco@lawnvac.com Website: www.lawnvac.com...
