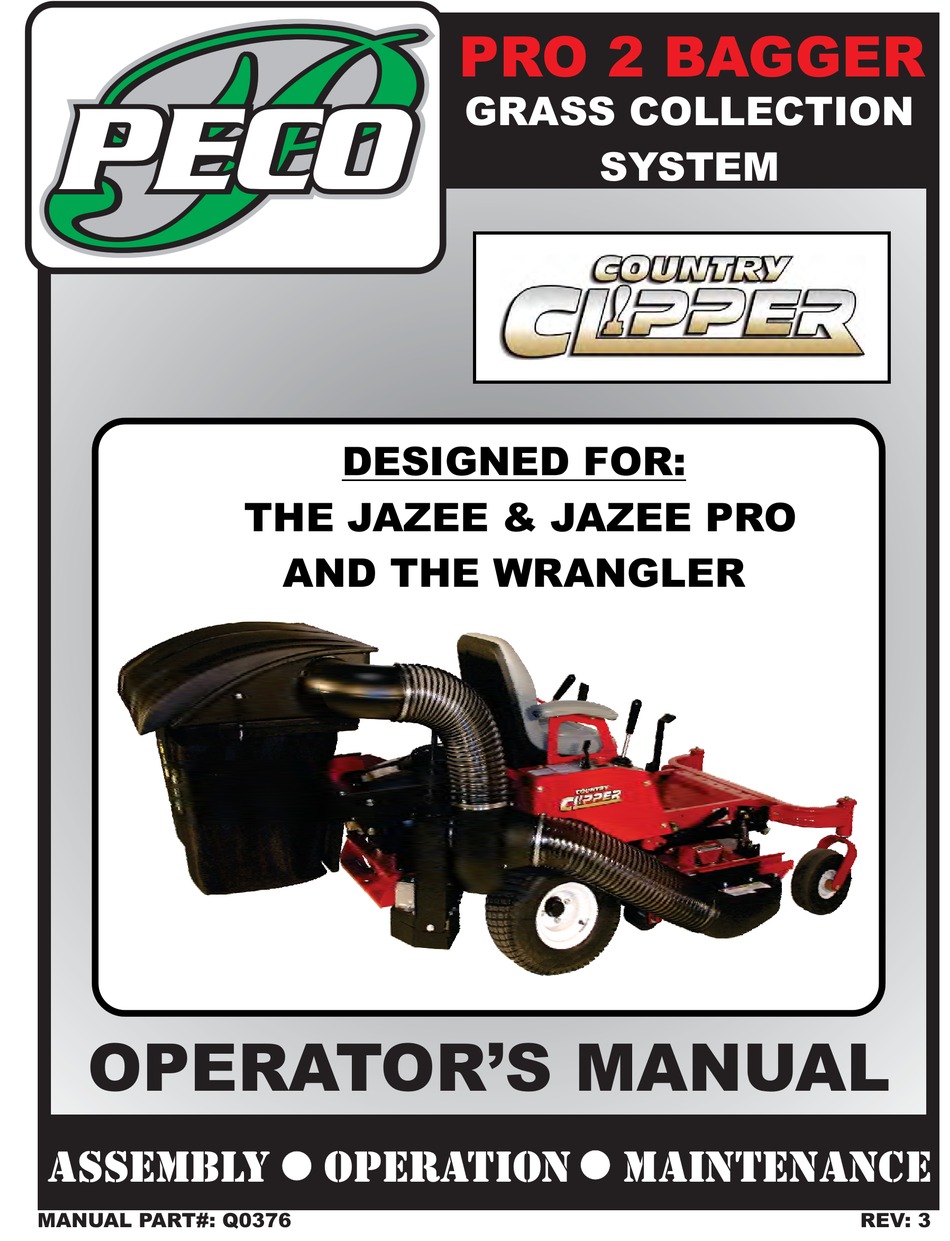

- Page 1 P P P PRO 2 BAGGER PECO PECO PECO PECO PECO GRASS COLLECTION SYSTEM DESIGNED FOR: THE JAZEE & JAZEE PRO AND THE WRANGLER OPERATOR’S MANUAL ASSEMBLY OPERATION MAINTENANCE MANUAL PART#: Q0376 REV: 3...
-
Page 2: Table Of Contents
RESIDENTIAL BAGGING SYSTEM TABLE OF CONTENTS SECTION PAGE SECTION PAGE Safety - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2 2-12 Impeller Blade Removal/Replacement - - - - - - - 9 Safety Alert Symbols - - - - - - - - - - - - - - - - - - - - - - 3 2-13 Boot To Mower Deck Installation - - - - - - - - - -9-10... -
Page 3: Safety Alert Symbols
SAFETY WARNING! operate the mower unless the discharge guard and either the deflector assembly or the NEVER vacuum collector adapter are fastened securely in place. WARNING! Do not work around the mower deck boot or the blower area until you are certain that the mower blades and the blower impeller have stopped rotating. -
Page 4: Warranty
COUNTRY CLIPPER LIMITED WARRANTY FOR NEW PRODUCTS A. WHAT IS WARRANTED? Country Clipper extends the following warranties to the original purchaser of each new Country Clipper consumer product subject to the following limitations: Any part of any consumer product, which is defective in material or workmanship as 1. -
Page 5: Introduction And Description
Make sure that the clutch stop is inline with the NOTE: Section I pin upon re-installation of the clutch, and that the wiring harness is re-connected. INTRODUCTION &DESCRIPTION 1-1/8” DIAMETER CRANKSHAFT For the 24HP & 27HP Kohler Engines, 22HP & 21HP 1-1 Introduction Kawasaki Engines and 23HP Briggs and Stratton Your grass collection system has been designed to give... -
Page 6: Removing The Rear Panel Guard And The Muffler Guard
2-2 Removing the Rear Panel Guard 2-4 Left Frame Bracket Installation Disconnect the deck tension spring from the left engine and the Muffler Guard side panel and remove the hardware. Attach the left frame bracket to the left engine side panel using the existing hardware from the rear panel guard and deck Remove the rear panel guard from the rear frame of the mower. -
Page 7: Pto Assembly Installation
Loosen Figure 2-7b 2-6 PTO Assembly Installation (2) 5/16”-18 x 3/4” HHCS Insert the pivot rod on the PTO assembly P#(A1111) into the mounting slots on the right frame mount assembly P#(A1008) as shown in Figure 2-6. You will secure the PTO assembly in Section 2-7, after the belt has been installed. -
Page 8: Exhaust Deflector Installation
2-7 Belt Installation/Removal and 2-9 Upper Frame Assembly Adjustment Continued... Installation Slide the upper frame assembly P#(A0871) onto the Fasten With vertical mount tube located on the lower frame assembly (1) Hair Pin Clip Figure 2-7e P#(A1091) as shown in Figure 2-9. Upper Frame Assembly Figure 2-9... -
Page 9: Blower Cone Installation/Removal
Remove the (2) 3/8”-16 x 1/4” HHCS P#(K0049), and (2) 2-11 Blower Cone 3/8”-16 flange nut P#(K1215) that secure the impeller blades tot he PTO shaft P#(B0460). Inspect the impeller Installation/Removal blades and replace if necessary. When replacing the impeller blades, run the blades to the shoulder of the Fasten the blower cone P#V0016) to the blower housing PTO shaft before tightening the hardware. -
Page 10: Length Of Hose Adjustment
KIT#: 629EO-001A Jazee and Jazee Pro 2010 2-13 Boot To Mower Deck Installation Rotate the stop clockwise and slide the chute forward Continued.. and up to remove. Insert the bagger mount into the same keyholes on the deck. Rotate the stop counter KIT#: 629FQ-001A Jazee &... -
Page 11: Lower Hose To Boot Installation
2-16 Lower Hose To Blower Cone Installation 2-18 Front Weight Installation Slide a hose clamp P#(J1000) over both ends of the lower hose. Then proceed to slide the lower hose Remove the deck step and hardware from the mower. P#(F0001) onto the blower cone. Tighten the lower hose. Fasten the weight brackets P#(B0479) and the weight mount plates P#(B0419) to the front casters using (4) Hose... -
Page 12: Installation/Removal Of Collection Bags
Plastic Top 2-19 Installation/Removal Of Figure 2-19b Collection Bags To install the bag P#(G0004) onto the bag ring P#(B0227), first make sure the bag ring end caps P#(J0274) are fastened to the bag ring. Place the seam openings of the bag onto the bag ring openings and turn the bag until the slot bracket in the bag ring is protruding from the opening in the bag (Figure 2-19a). -
Page 13: Operating Instructions
SECTION III 3-3 Disengagement Of The PTO OPERATING INSTRUCTIONS Assembly A. To disengage the PTO assembly, slide the engagement handle out of the retaining slot and push 3-1 General Safety the engagement handle away from the operator’s seat. Only qualified people familiar with this operator’s manual and the mower’s operator’s manual should operate this The PTO assembly blades will continue to WARNING:... -
Page 14: Lubrication
If for any reason your Service Center by the manufacturers to be affixed to the component. is unable to service your collection system or supply replacement parts, contact PECO Inc. and include the 3. Check belt for proper tension. following information on the chart below. -
Page 15: Exploded Views And Parts List
MODEL#: 49020901 RESIDENTIAL MOWER NAME: COUNTRY CLIPPER BAGGING MOWER MODEL: JAZEE & JAZEE PRO SYSTEM MOWER DECK SIZE: 42” THRU 52” VAC NAME: 9 CUBIC FOOT PRO BAGGER FOR YEAR: 2008-2009 SHIVVERS PART#: 629EA-001A REVISED: **REQUIRES AUXILIARY BOOT ADAPTER KIT** A1034 UNIT ASSEMBLY 6”... - Page 16 MODEL#: 49020902 RESIDENTIAL MOWER NAME: COUNTRY CLIPPER BAGGING MOWER MODEL: JAZEE & JAZEE PRO SYSTEM MOWER DECK SIZE: 42” THRU 52” VAC NAME: 9 CUBIC FOOT PRO BAGGER FOR YEAR: 2011 - BELOW SHIVVERS PART#: 629FM-001A REVISED: 3-02-2011 **REQUIRES AUXILIARY BOOT ADAPTER KIT** A1034 UNIT ASSEMBLY 6”...
- Page 17 MODEL#: 49020903 RESIDENTIAL MOWER NAME: COUNTRY CLIPPER BAGGING MOWER MODEL: WRANGLER SYSTEM MOWER DECK SIZE: 42” THRU 52” VAC NAME: 9 CUBIC FOOT PRO BAGGER FOR YEAR: 2011 SHIVVERS PART#: 629FL-001A REVISED: 3-02-2011 FITS MODEL SR125 A1034 UNIT ASSEMBLY 6” x 34” 6”...
- Page 18 BAGGER PART#: A1037 BOOT MOWER MODEL: JAZEE & JAZEE PRO ADAPTER ADAPTS SR210 & EARLIER DECKS TO 629EA-001A & 629FM-001A GRASS BAGGERS 629FQ-001A BOOT KIT ASSEMBLY 2009-BELOW B0244 B0468 HB0349 BOOT ROD HARDWARE BOOT PLATE BAGGER PART#: A1126 BOOT MOWER MODEL: JAZEE & JAZEE PRO ADAPTER ADAPTS SR215 &...
- Page 19 TOP/UPPER FRAME ASSEMBLY EXPLODED VIEW AND PARTS LIST Item Document Title Quantity Number Number B0451 RT. PIVOT SIDE RAIL B0448 RT. CENTER RAIL B0459 RAIL MNT. TUBE B0450 LT. PIVOT SIDE RAIL B0449 VERT. MNT. TUBE B0470 LT. CENTER RAIL V0017 BAGGER TOP V0018...
- Page 20 A1111 PTO ASSEMBLY EXPLODED PARTS VIEW...
- Page 21 A1041 PTO ASSEMBLY EXPLODED PARTS VIEW DESCRIPTION Item Document Title Quantity Number Number M0266 'A' PULLEY FOR DECK DRIVE PTO K1446 1.187 OD x .380 ID x .187 W ASHER K1190 3/8"-16 x 3/4" HHCS V0015 BLOW ER HSG. A0431 GEAR BOX M0229 'A' PULLEY FOR DECK DRIVE PTO...
-
Page 22: Safety Decals
