NEC Power-Limited Wiring Requirements for Maximal77V:

Power-limited and non power-limited circuit wiring must remain separated in the cabinet. All power-limited circuit
wiring must remain at least 0.25" away from any non power-limited circuit wiring. Furthermore, all power-limited
circuit wiring and non power-limited circuit wiring must enter and exit the cabinet through different conduits.
One such example of this is shown below. Your specific application may require different conduit knockouts to
be used. Any conduit knockouts may be used. For power-limited applications use of conduit is optional. All field
wiring connections must be made employing suitable gauge CM or FPL jacketed wire (or equivalent substitute).
Note: Refer to wire handling drawing below for the proper way to install the CM or FPL jacketed wire (Fig. 9a).

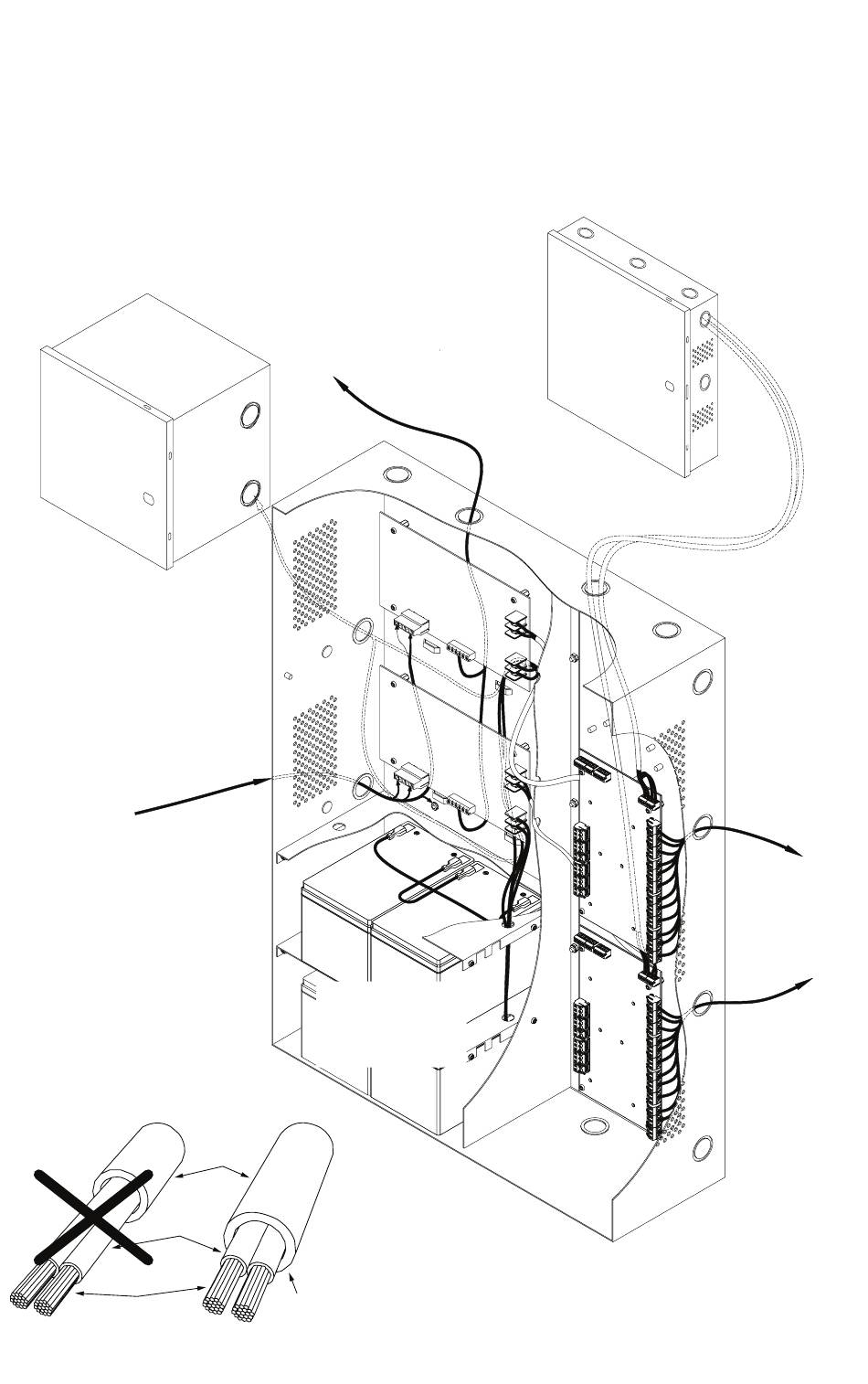

Fig. 9
Optional Battery
Enclosure
(non power-limited)
Input
220VAC, 50/60Hz
(non power-limited)
Fig. 9a
Incorrect Wire
Handling
Wire
Insulation
Solid Copper
Conductors
- 16 -
Supervisory
Connections
(power-limited)
Battery
Connections
(non power-limited)
Correct Wire
Handling
External
Jacketed
Shield
Pull back
external jacketed
shield approx. 1/2".
Maximal11V / Maximal33V / Maximal55V / Maximal75V / Maximal77V Access Power Controllers (Fused) Installation Guide
External
Access Control
Power Supply
12 to 24V
AC or DC
ACM8
outputs
(non
power-
limited)
