Operating Instructions
3.4

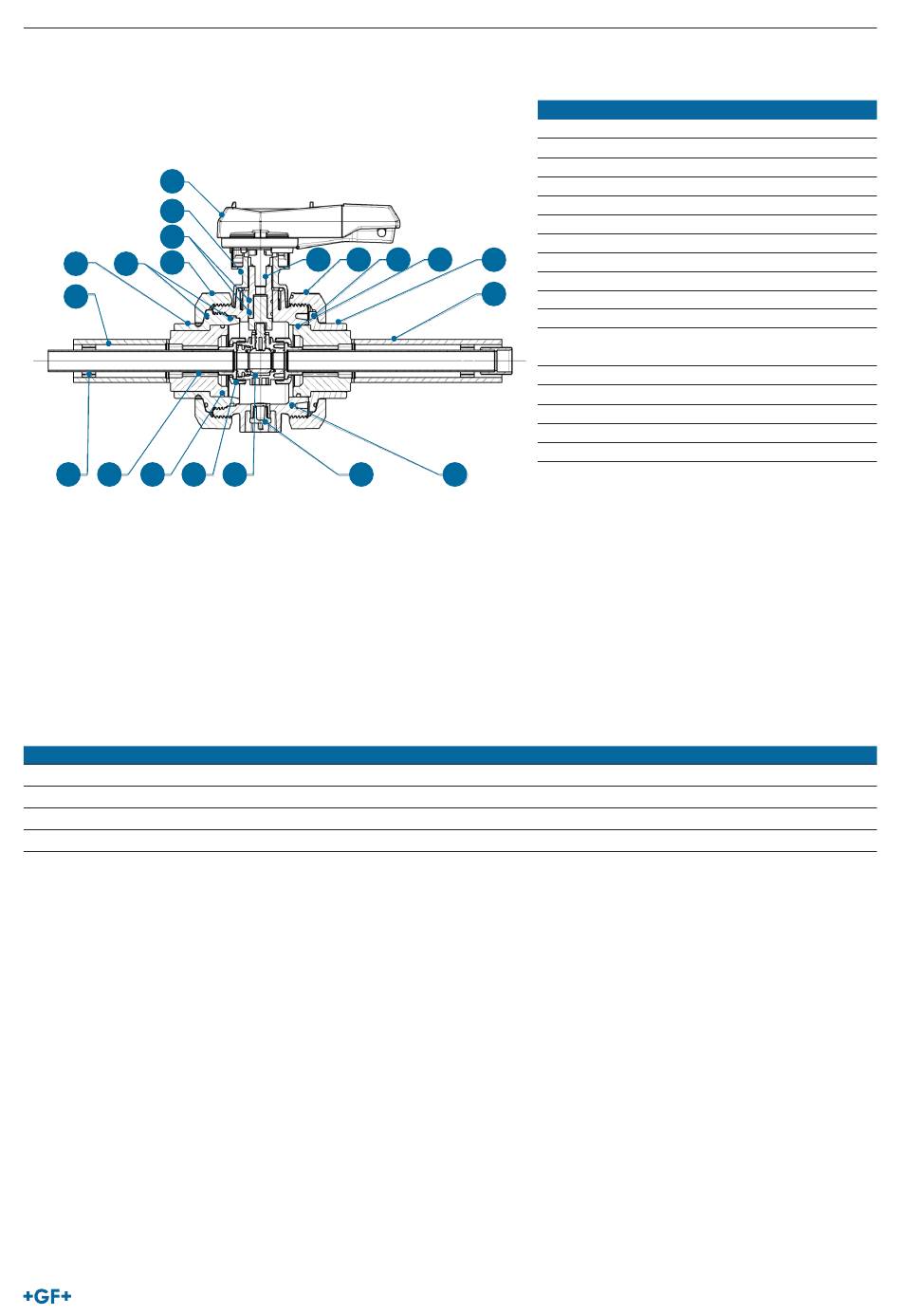

Design

6
7
15
5
4 16
8
12 13 14 10
3.5

Function

Double containment valves from GF Piping Systems are supplied as a ready-to-install system unit and the jointing technology used
is similar to that for a double containment fitting.
The concept is that the inner pipe is first joined according to the jointing technology which you have selected. The following jointing
methods and materials can be chosen from:
Jointing methods for inner pipe
Butt fusion
IR fusion
Socket fusion
Solvent cementing
2 5 16
9 11
Item Name
1 Protective housing
2 Stem
3 Union end
4 Union bush
5 Union nut of protective housing
6 Hand lever
7 Nuts and screws (to fix the hand lever)
14 3
8 PE supports
9 Ball valve type 546 Pro
8
10 Spacer
11 Ball valve type 546 Pro coupling nut
12 Adaptor for ½" leak detection or PVC-U ½"
plug
13 Spacer
14 Bore-hole for leak detection of inner pipe
15 O-ring PE connecting element
16 O-rings for stern
H O-rings for union bush/union end
1
Material
PE100, PP-H, PVDF
PE100, PP-H, PVDF
PE80, PP-H, PVDF
PVC-C, PVC-U
CONTAIN-IT Plus Ball Valve Type 546 Pro
11
