Design and function

4 Design and function
4.1

Design

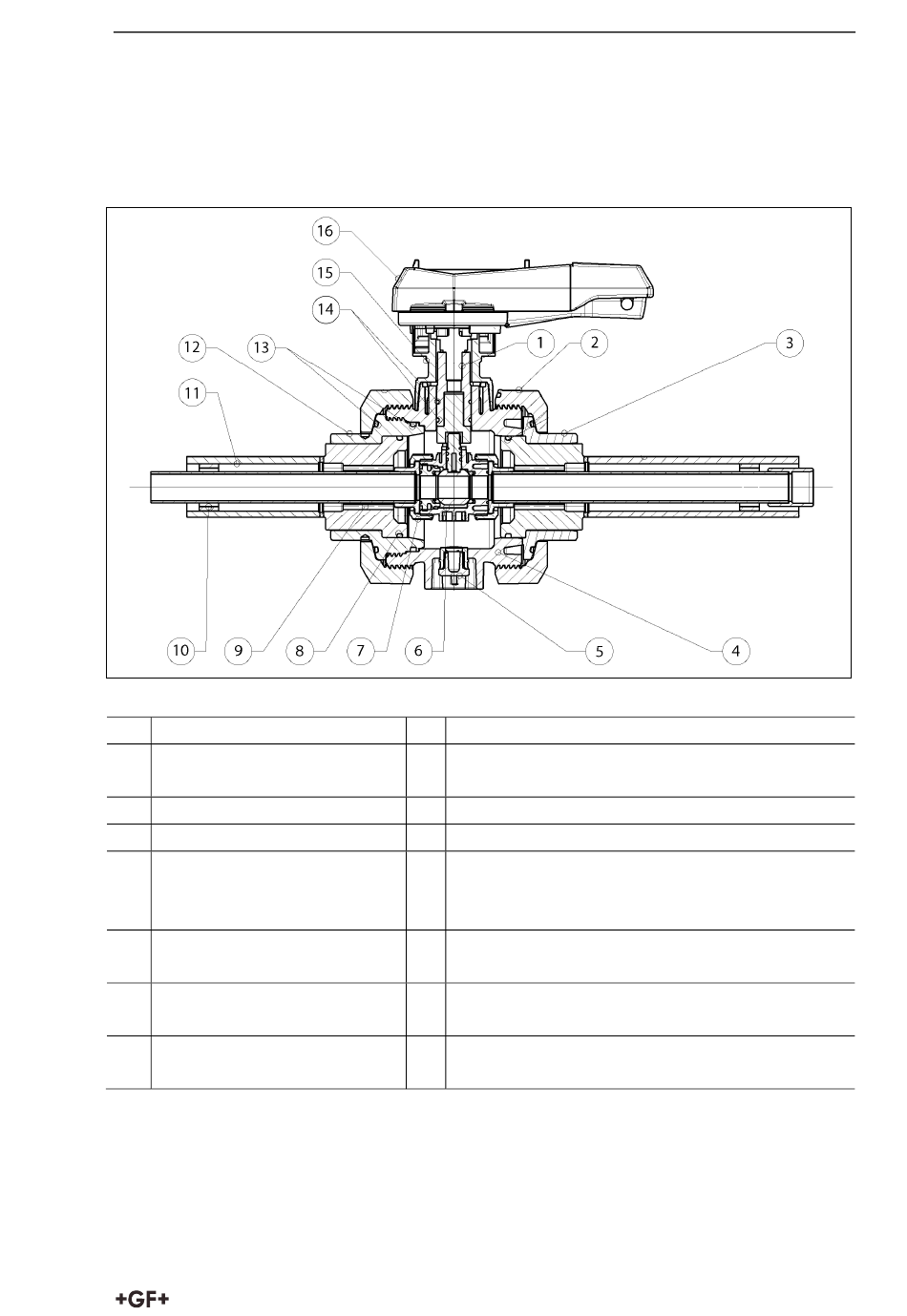

Fig. 1
1
Stem
Union nut of protective
2
housing
3
Union end
4
Protective housing
Connection for ½ inch leak
5
detection or PVC-U ½ inch
plug
Ball valve type 546 (central
6
part)
Union nut ball valve type
7
546
O-ring for PE connection
8
adaptor
9 Bore-hole for leak detection of inner pipe
10 Spacer
11 Support pieces PE
12 Union bush
13 O-rings for union bush / union end
14 O-rings for stem
15 Nuts and screws (to fix the hand lever)
16 Hand lever
