4.5.

SIDE MENU

4.6.

DESCRIPTION OF THE STATES OF THE SOLAR03 REMOTE UNIT

Depending on how it is used in conjunction with the instrument, the SOLAR03 remote unit
can be in one of the following states, identified by the symbol at the top of the display (see
Fig. 4- section 5):
SOLAR03 remote unit connected to the instrument
SOLAR03 remote unit connected to the instrument and recording
SOLAR03 remote unit NOT connected to the instrument
SOLAR03 remote unit recording, but out of connection range

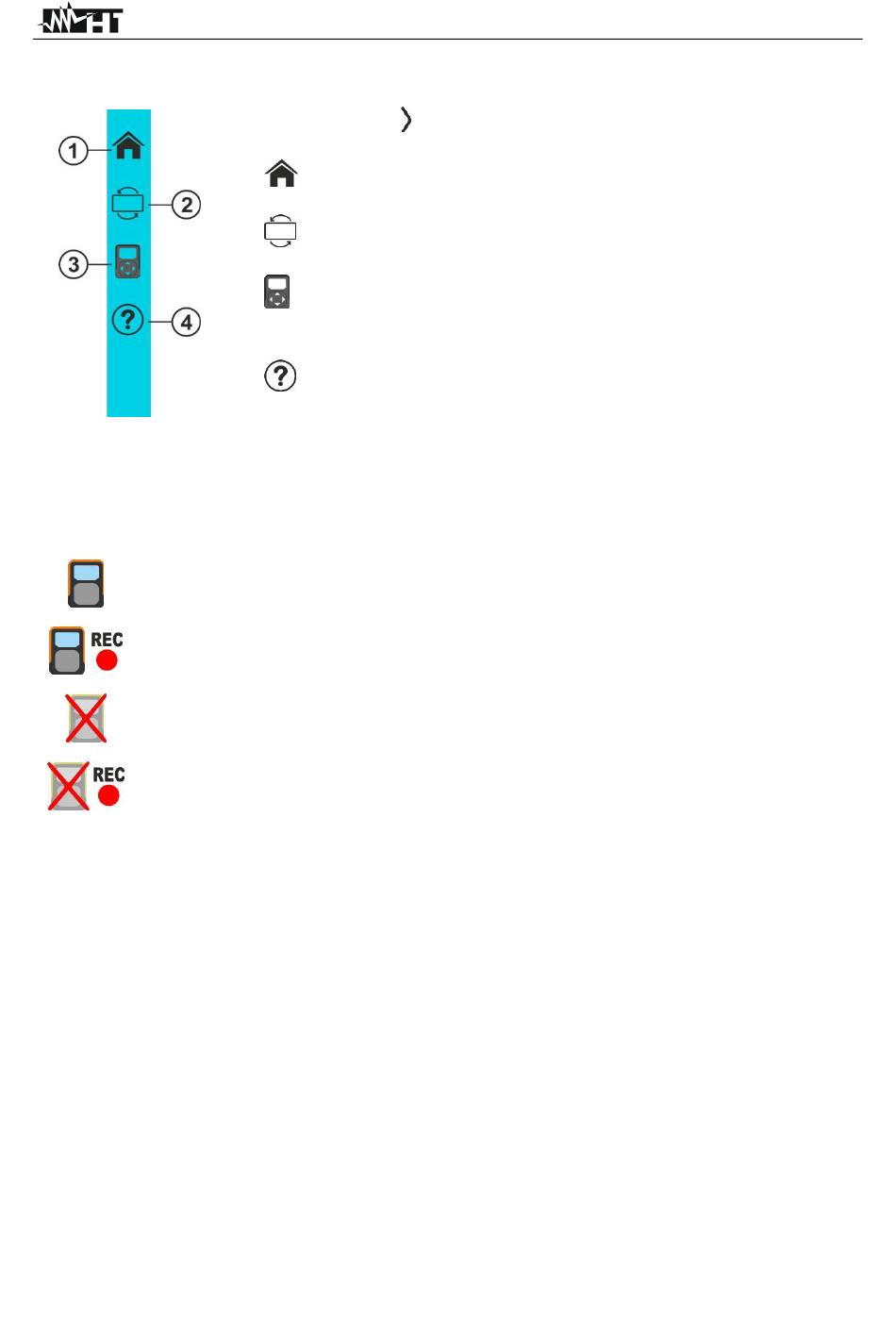

Tap on the icon " " to open/close the side bar/menu shown in the
figure on the left. The following icons are available:
1. HOME icon→, used to go back to the main menu from any
screen displayed on the instrument
2. REVERSE icon→, used to rotate the display for reading the
values when the instrument is hanging (see § 4.7)
3. SOLAR03 icon→, used to access the management section of
the SOLAR03 remote unit from any screen displayed on the
instrument
4. HELP icon→, used to access the 'Help' section from any
screen displayed on the instrument
