4.3.

DISPLAY DESCRIPTION

4.4.

INITIAL SCREEN

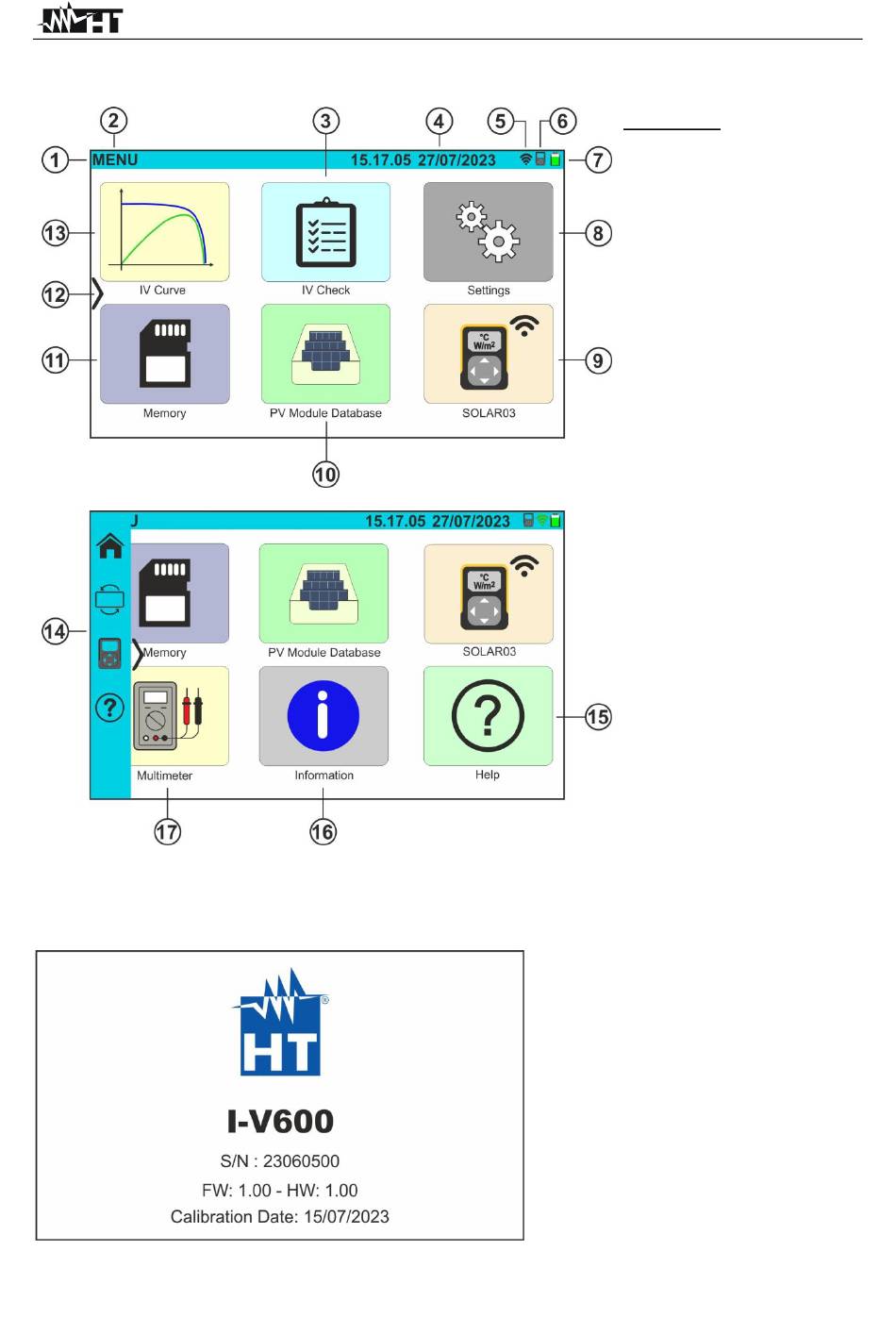

Fig. 4: Display description
EN - 9
CAPTION:
1. System bar
2. Active
indication
3. IV Check
icon
4. System
indicator
5. WiFi
active indicator
6. SOLAR03 connected
indicator
7. Battery level indicator
8. Settings icon
9. SOLAR03 icon
10. PV
DataBase icon
11. Memory icon
12. Side
enable/disable icon
13. IV Curve icon
14. Side menu bar
15. Help icon
16. Information icon
17. Multimeter icon
When switched on, the instrument
briefly displays the initial screen
before switching to the main menu.
It shows:
• The manufacturer's logo
• The instrument's model
• The
serial number
instrument (S/N:)
• The internal firmware (FW) and
hardware (HW) versions
• The date of the last calibration
carried out on the instrument
(Calibration Date:)
I-V600
menu
function
date/time
connection
Modules
menu bar
of the
