INSTRUCTION/MAINTENANCE MANUAL
Electric Salon Top
Shown with optional
Adjustable Side Arm Rests
and Universal Table Extender

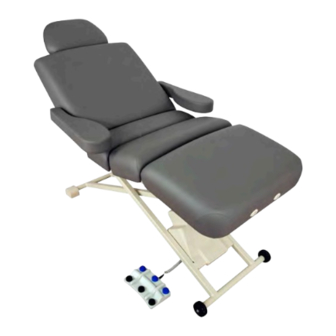

Lift Assist Salon Top
Shown with optional
Adjustable Side Arm Rests
and Universal Table Extender
Lift Assist Backrest Top
www.oakworks.com · 717.235.6807
Series
ProLuxe
™
Flat Top
Shown with optional QuickLock™ Face
Rest and Boiance crescent
Advertisement
Table of Contents
Related Manuals for OAKWORKS ProLuxe Series
Summary of Contents for OAKWORKS ProLuxe Series
- Page 1 Adjustable Side Arm Rests and Universal Table Extender Lift Assist Salon Top Lift Assist Backrest Top Flat Top Shown with optional Shown with optional QuickLock™ Face Adjustable Side Arm Rests Rest and Boiance crescent and Universal Table Extender www.oakworks.com · 717.235.6807...
- Page 2 Notice The information contained in this document is subject to change without notice and should not be construed as a commitment by , Inc. ® akworks , Inc. assumes no ® akworks responsibility for any errors that may appear in this document nor does it make expressed or implied warranty of any kind with regard ©...
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS Symbol Identification ....................1 Introduction ........................1 Warnings & Safety Instructions ..................2 Section I: Product Descriptions & Photos ProLuxe™ Flat Top ..................3 ProLuxe™ Lift Assist Backrest Top ..............4 ProLuxe™ Lift Assist Salon Top ..............5 ProLuxe™ Electric Salon Top ................6 Section II: Installation Grounding .....................7 Section III: Directions for Use... -
Page 4: Symbol Identification
There are no known con- traindications to the use of this equipment. The ProLuxe Series should not be used in any other manner than that described within this manual. Use of any unnecessary force or unauthorized procedures could result in... -
Page 5: Warnings & Safety Instructions
3. Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Contact Oakworks Customer Service before use at 717.235.6807. 4. Keep the cord away from heated surfaces. -
Page 6: Proluxe - Flat Top
PRODUCT DESCRIPTION PROLUXE - FLAT TOP QuickLock™ Face rest with Boiance™ Crescent accessory attachment outlets Foot Control wheels TABLE SPECIFICATIONS • Height: 18” - 35” • Weight: 175 lbs. • Width: 29”, 31” • Length: 73” • Lift Capacity: 550 lbs. • Top: Flat Top • Padding:... -
Page 7: Proluxe - Lift Assist Backrest Top
PRODUCT DESCRIPTION PROLUXE - LIFT ASSIST BACKREST TOP accessory attachment outlets Foot Control wheels TABLE SPECIFICATIONS • Height: 21” - 38” • Weight: 175 lbs. • Width: 29”, 31” • Length: 73” • Lift Capacity: 550 lbs. • Top: Lift Assist Backrest Top • Padding: Plush, 4”... -
Page 8: Proluxe - Lift Assist Salon Top
PRODUCT DESCRIPTION PROLUXE - LIFT ASSIST SALON TOP Optional Universal Table Extender Optional Adjustable Back rest Side Arm Rests adjustment accessory attachment outlets Leg rest adjustment Foot Control wheels TABLE SPECIFICATIONS • Height: 21” - 38” • Weight: 175 lbs. • Width: 29”, 31”... -
Page 9: Proluxe - Electric Salon Top
PRODUCT DESCRIPTION PROLUXE - ELECTRIC SALON TOP Optional Universal Table Extender Optional Adjustable Side Arm Rests accessory attachment outlets Multi-function Foot Control TABLE SPECIFICATIONS • Height: 21” - 38” • Weight: 175 lbs. • Width: 29”, 31” • Length: 73” • Lift Capacity: 550 lbs. -
Page 10: Section Ii: Installation
INSTALLATION The tables come completely assembled and ready to use. Plug the cord into a functioning outlet that is rated for the table. Arrange the power cord and control cords so that they will not create a tripping hazard and where the controls are located to your liking and are conveniently accessible. -
Page 11: Section Iii: Directions For Use
DIRECTIONS FOR USE ELECTRIC TABLE ADJUSTMENTS (FLAT, GAS ASSIST BACKREST & GAS ASSIST SALON TOPS) Foot Control: used to change height CAUTION When operating the controls and making any and all adjustments to the table, move hands and feet away from the working mechanism of the table. -
Page 12: Important Safety Note
DIRECTIONS FOR USE ELECTRIC TABLE ADJUSTMENTS (ELECTRIC SALON TOP) Table UP Footrest Backrest NOTE: Button location may vary slightly from locations shown Backrest DOWN Footrest DOWN Table DOWN IMPORTANT SAFETY NOTE The hood area under the backrest top is not designed for storage or as an area to hold accessories while with a client. -
Page 13: Manual Top Operation
DIRECTIONS FOR USE OPERATING THE MANUAL TOP (GAS ASSIST BACKREST & GAS ASSIST SALON TOPS) BACK REST Back Rest Control To Raise the Back Rest: Raise the back rest by pressing the lever under the head section and lifting up to the desired height. It is recommended that the client take some weight off the back rest while you lift. -
Page 14: Moving The Table
DIRECTIONS FOR USE MOVING THE TABLE The table is equipped with two wheels at one end and two self-lock- WARNING ing, molded rubber feet at the other. When ready to move the table, first lower the table to its lowest position. On models with a backrest, it Before moving any of the is recommended to raise the back rest to a high position. -
Page 15: Optional Quicklock Face Rest
DIRECTIONS FOR USE QUICKLOCK™ FACE REST & HEAD REST QUICKLOCK™ FACE REST: Be sure to use either the face rest or head rest for all treatments that require your client to lay flat. Double articulating action provides nearly limitless positioning options with CAUTION: the QuickLock™... -
Page 16: Optional Adjustable Side Arm Rests
DIRECTIONS FOR USE ARM REST INSTALLATION AND ADJUSTMENT INSTRUCTIONS OPTIONAL ACCESSORY AVAILABLE ON 4 SECTION TOP ONLY CAUTION: Do not use the arm rest for customer weight support during the mounting or dismounting of the table. The arm rest is not designed to support the patient’s weight. -
Page 17: Section Iv: Troubleshooting
Questions to ask before calling Customer Service: • Is the unit plugged in? • Does the outlet have power? • Are all connections of the control box seated securely? • Does the table move with any foot control button? • Is the control box green light on? Oakworks tables are designed and built to provide many years of dependable service. Please follow local regulations and laws when disposing of the electrical components used in this table. -
Page 18: Section V: Maintenance & Service
• Visually inspect components for obvious damage that could cause problems during operation. • Check all mechanical functions using the foot control. Repeat using the hand control. Check for abnormal noises. • Replace any missing or illegible labels. • Check that all fasteners are present and fastened securely. • Check table grounding. • Clean unusual buildup of dirt on the table and/or parts of the table not normally cleaned on a regular basis. • Check for tears or cracks in the tabletop pads. MAINTENANCE • No specific maintenance tasks are required. • Oakworks medical tables are designed and built to provide many years of dependable service. Please follow local regulations and laws when disposing of the electrical components used in this table. -
Page 19: Warranty Information
MAINTENANCE & SERVICE WARRANTY For full warranty details, please visit www.oakworks.com All warranties are limited to factory-provided replacement parts, factory repair or replacement, at the discretion of O ® akworks All warranties exclude damage caused by improper set-up, accident, abuse, misuse, neglect, use for other than intended purpose or reasonable wear such as tears in the upholstery. -
Page 20: Model Number & Serial Number Location
MAINTENANCE & SERVICE MODEL NUMBER & SERIAL NUMBER LOCATION Model Number Serial Number Model Numbers and Serial Numbers always start with a letter. 16796025 PXSLFT311873ACTTVN Ser#: PXR563146 US G2 30 x 22-38 x 72 3M/TT/2S TTSKYBLUE 01/04/2013 Order#:654321 Notes: Sample Product Label The model number and serial number are located on the underside of the foot section. -
Page 21: Specifications
MAINTENANCE & SERVICE POWER LEAD PLUGS Part #: Voltage (AC) Power Cord Plug ® akworks 5097-11 120v 60 Hz 3 prong grounded hospital grade; North America 5097-3 220v 50/60 Hz Continental Plug; Europe 5097-4 220v 50 Hz Swiss plug; Switzerland 5097-2 220v 50 Hz British plug;... -
Page 22: Guidance And Manufacturer's Declaration -Electromagnetic Emissions
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. EMC Report for Oakworks Inc. on the ProLux Table Page 68 of 70 Table 6... -
Page 23: Guidance And Manufacturers Declaration - Electromagnetic Immunity
MAINTENANCE & SERVICE Intertek Report Number: 100747045ATL-007 16.0 Identification, marking and documents (IEC 60601-1-2 (Ed. 3) Clause 5) POWER LEAD PLUGS Data: Guidance and manufacturer’s declaration –electromagnetic immunity The PROLUX TABLE is intended for use in the electromagnetic environment specified below. The customer or the user of the PROLUX TABLE should assure that it is used in such an environment. - Page 24 MAINTENANCE & SERVICE Intertek Report Number: 100747045ATL-007 16.0 Identification, marking and documents (IEC 60601-1-2 (Ed. 3) Clause 5) Data: Guidance and manufacturer’s declaration –electromagnetic immunity The PROLUX TABLE is intended for use in the electromagnetic environment specified below. The customer or the user of the PROLUX TABLE should assure that it is used in such an environment.
- Page 25 POWER LEAD PLUGS THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 26 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 27 POWER LEAD PLUGS THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 28: Contact Information
CONTACT INFORMATION: Inc. ® akworks 923 East Wellspring Road New Freedom, PA 17349 Phone: 717-235-6807 FAX: 717-235-6798 www.oakworks.com European Authorized Representative Emergo Europe Molenstraat 15 The Hague, 2513 BH Netherlands Tel: +31 70 3458570 Fax: +31 70 3467299 3034177 CONFORMS TO:...
