- Page 1 USER MANUAL OAKWORKS ® Treatment Tables Powerline Series Seychelle Series ™ made in the USA with US & imported parts www.oakworks.com · 717.235.6807...
- Page 2 ® damages in connection with or arising out of the furnishing, performance, or OAKWORKS is a registered use of this document and the program ® trademark of OAKWORKS , Inc. ® material which it describes.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Product Use Description ..........................1 Important Safety Instructions ........................1 Product Description & Photo Powerline Series ..........................2-3 Seychelle Series ..........................4-5 Installation Table Assembly ............................ 6 Inset Shelf .............................. 6 Directions for Use Paper Roll Holder Use ........................7 Wave Backrest Use .......................... -
Page 4: Product Use Description
PRODUCT USE DESCRIPTION / IMPORTANT SAFETY INSTRUCTIONS PRODUCT USE DESCRIPTION The Oakworks Powerline & Seychelle Tables are used to support the patient during examinations and procedures. They are intended to be operated by a professional in a exam/treatment environ- ment. No special training is required but a review of the following manual is important for the safety of the operator and patient. -
Page 5: Product Description & Photo

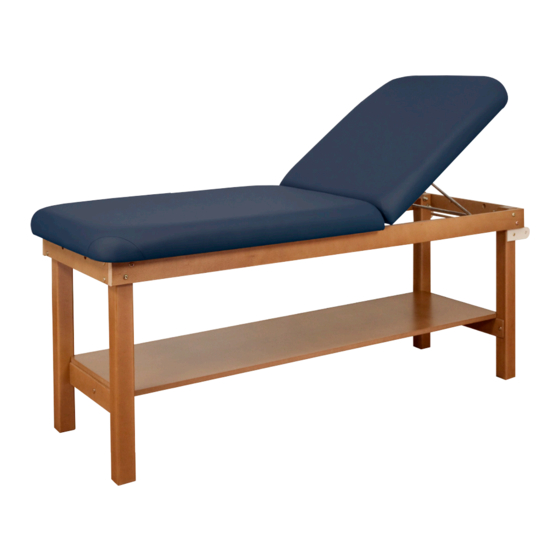

PRODUCT DESCRIPTION Powerline Flat Top Accessory outlets Upholstered Top Accessory outlets QuickLock Face Rest (accessory) Paper Roll Holder Table Extender (accessory) STANDARD SPECIFICATIONS Height Range Fixed 30” (76 cm.) Table Capacity 500 lbs. (226 kg.) (patient and accessories) Widths 27” (69 cm.) or 30” (76 cm.) Length 72”... - Page 6 PRODUCT DESCRIPTION Powerline Wave Backrest Wave Backrest QuickLock Face Rest (accessory) Upholstered Top Accessory outlets Table Extender (accessory) Paper Roll Holder Accessory outlets Inset Shelf (option) STANDARD SPECIFICATIONS Table Height Fixed 30” (76 cm.) Wave Backrest Manual 0-60º, 6 set positions Table Capacity 500 lbs.
-
Page 7: Seychelle Series
PRODUCT DESCRIPTION Seychelle Flat Top Accessory outlets Upholstered Top Accessory outlets QuickLock Face Rest (accessory) Inset Shelf (option) Table Extender (accessory) STANDARD SPECIFICATIONS Height Range Fixed 30” (76 cm.) Table Capacity 500 lbs. (226 kg.) (patient and accessories) Widths 27” (69 cm.) or 30” (76 cm.) Length 72”... - Page 8 PRODUCT DESCRIPTION Seychelle Wave Backrest Wave Backrest QuickLock Face Upholstered Top Rest (accessory) Accessory outlets Table Extender (accessory) Accessory outlets Inset Shelf (option) STANDARD SPECIFICATIONS Table Height Fixed 30” (76 cm.) Wave Backrest Manual 0-60º, 6 set positions Table Capacity 500 lbs.
-
Page 9: Installation
INSTALLATION TABLE ASSEMBLY Tools Required: 9/16” / 14mm Wrench/Socket SUPPLIED PARTS: LEG HARDWARE LEG BRACE TOOLS 8 -Reinforcement Plates 1 - Wood Leg Brace 1 - Large Allen Wrench 16 - Spring Washers 2 - Short Bolts 1 - Small Allen Wrench 4 - Long Large Bolts 2 - Barrel Nuts 4 - Lock Nuts... -
Page 10: Directions For Use
DIRECTIONS FOR USE PAPER ROLL HOLDER USE Using the supplied After the table is set-up, Locate the wooden To secure the wooden locate the hole in the leg. screw & allen wrench, dowel & feed it thru dowel, feed it into the secure the paper roll your paper roll. -
Page 11: Quicklock Face Rest
DIRECTIONS FOR USE QUICKLOCK FACE REST * U.S. Patent #5,177,823 Do not put excessive weight or pressure on the Quicklock Face Rest. Do not extend the CAUTION dowels of the Quicklock Face Rest 3” (7.6 cm.) from the table top. The Maximum Weight Capacity for the QuickLock Face Rest is 25 lbs. -
Page 12: Cleaning & Disinfection
To reduce the risk of electric shock: DANGER - Always unplug this furnishing from the electrical outlet before cleaning. The following cleaners were tested by OAKWORKS ® and found to be acceptably compatible with all materials used in construction of our tables: Formula 409 ®... -
Page 13: Inspections
- Always unplug this furnishing form the electrical outlet before cleaning. ® Follow the cleaners/disinfectant manufacturers’ directions for use. Please note that cleaning and disinfecting an OAKWORKS table is a two part process. First it must be cleaned of any visible soil, then it can be disinfected. The table should be cleaned as soon as possible after use. -
Page 14: Model Number & Serial Number
Not Used Fabric: TerraTouch Padding FR=1.75” (4 cm.) Firm Response SF=2.5” (6 cm.) Semi-Firm PL=3” (8 cm.) Comfort AC=4” (10 cm.) Comfort Table Top Length Minimum Table Height Table Width FT=Flat Top BR=Wave Backrest Base Table PW=Powerline Series SE=Seychelle Series... -
Page 15: Specifications
SPECIFICATIONS PRODUCT SPECIFICATIONS Weight 90-115 lbs. (41-52) kg. Shipping Weight 105-130 lbs. (48-59 kg.) Weight Limit 500 lbs. (226 kg.) ENVIRONMENTAL CONDITIONS Conditions Temperature Humidity Atmospheric Pressure Normal Use 50° (10°C) to 104° (40°C) 20% to 60% RH 98 to 105 kPa Storage &... -
Page 16: Contact Information
USER MANUAL OAKWORKS ® Treatment Tables CONTACT INFORMATION: Inc. ® AKWORKS 923 East Wellspring Road New Freedom, PA 17349 Phone: 717-235-6807 FAX: 717-235-6798 www.oakworks.com For user manuals & instructional videos related to your product, please visit http://www.oakworks.com/manuals.asp Manual Part Number MMMNST0005-EN...
