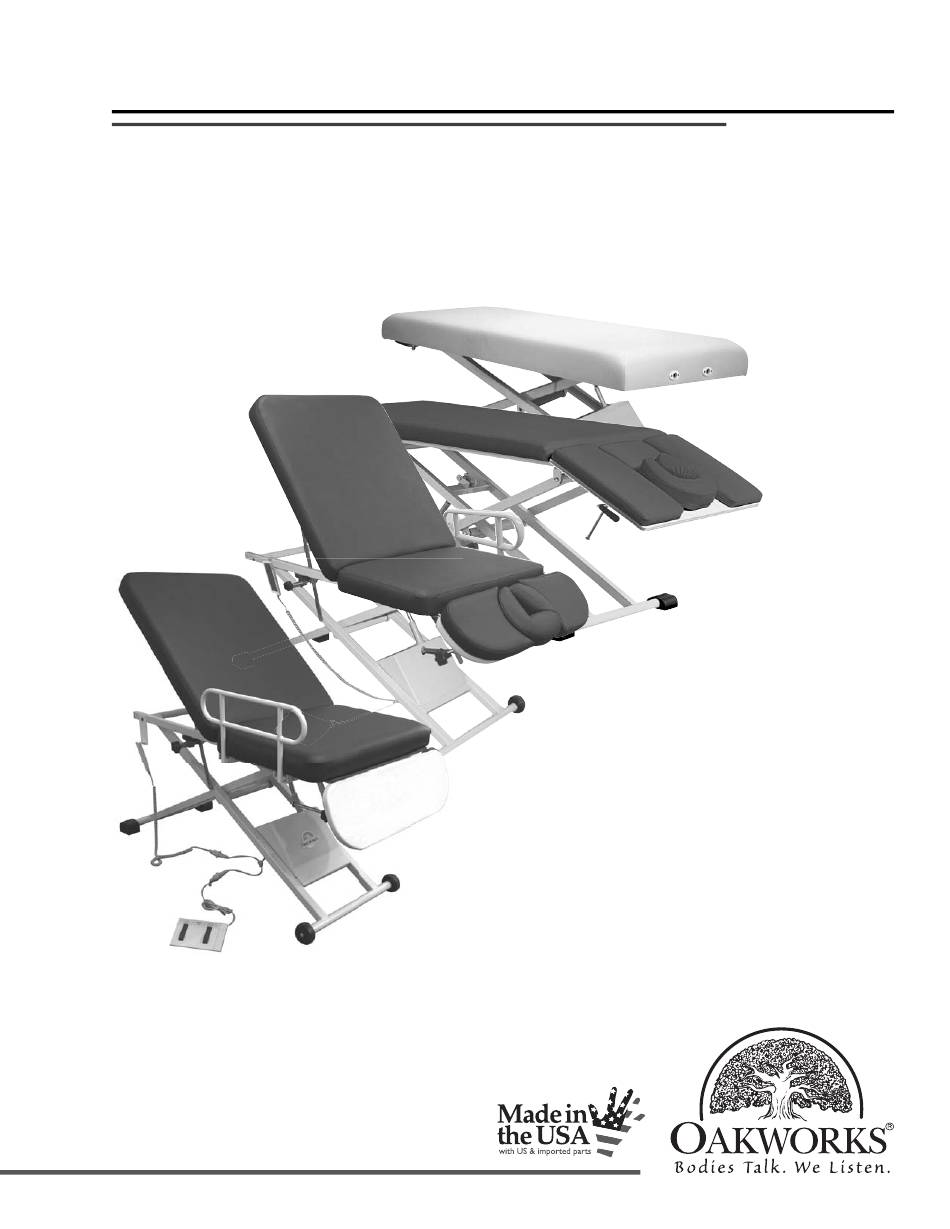

- Page 1 I N S T R U C T I O N M A N U A L PT Line & Orthopedic Hi-Lo Casting Table PT100 PT200 PT300 Orthopedic Orthoped Hi-Lo Casting Hi-Lo Cast Table www.oakworks.com · 717.235.6807...
- Page 2 © Copyright 2009 , Inc. ® AKWORKS Notice The information contained in this document is subject to change without notice and should not Manual Part # MMMNST009 be construed as a commitment by 1st Edition, March 2009 , Inc. ® AKWORKS Printed in U.S.A.
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS Warnings & Symbol Identification ............pg 1 Section I: Product Descriptions & Photos PT100 pg 3 ..................PT200 pg 4 ..................PT300 ..................pg 5 Orthopedic Hi-Lo Casting Table pg 6 ........... Section II: Directions for Use Adjusting the Table Height pg 7 .......... - Page 4 SYMBOL IDENTIFICATION SYMBOL IDENTIFICATION SYMBOL IDENTIFICATION This symbol, when used in this manual and on product labels, represents a caution. Be sure to read and comply with all precautions and warnings. This symbol, when used in documentation on this product, indicates danger and warns against an electrical shock hazard.
- Page 5 WARNINGS / SYMBOL IDENTIFICATION WARNINGS & IMPORTANT SAFETY INSTRUCTIONS WARNINGS Be sure to read all cautions, warnings and operating instructions IMPORTANT prior to use to prevent injury to both operator and client. Weight limit (including patient and accessories): 550 lbs. CAUTION Be certain that the equipment is completely lowered without any CAUTION...
-
Page 6: Pt100
PRODUCT DESCRIPTION PT100 • PRODUCT DESCRIPTION PT100 Upholstered Top Self-locking molded rubber feet (2) Single 110v motor with cover Steel Scissor-style powder-coated base with dual crossbeams (1) Wheels (2) Ta b le S p ec s* • Height: 17” - 35” (43cm - 88cm) •... -
Page 7: Pt200
PRODUCT DESCRIPTION PT200 • PRODUCT DESCRIPTION PT200 Insert Pad (full size) Upholstered Top Articulating Head Rest Section with adjustable Face Rest Cushion & Insert Pad Single 110v Motor with cover Manual Control for Backrest Top Wheels (2) Self-locking Steel Scissor-style molded rubber feet (2) powder-coated base... -
Page 8: Pt300
PRODUCT DESCRIPTION PT300 • PRODUCT DESCRIPTION Upholstered Back PT300 Rest Section Manual Control for Removable Side Rail Backrest Articulating Head Rest Section with adjustable Face Rest Cushion & Right/Left Insert Pads Hand Control (1) Self-locking molded rubber feet (2) Single 110v motor with cover Steel Scissor-style powder-coated... -
Page 9: Orthopedic Hi-Lo Casting Table
PRODUCT DESCRIPTION Orthopedic Hi-Lo Casting Table • PRODUCT DESCRIPTION Upholstered Top Orthopedic Hi-Lo Casting Manual Retractable Control for side rail Table Backrest Section of Flex-Top Self-locking Resin casting molded rubber cover feet (2) Single 110v motor with cover Steel Scissor-style powder-coated base with dual crossbeams (1) Wheels (2) -
Page 10: Section Ii: Directions For Use
When operating the controls (used only to change height of table; operation the same Hand Control on any of the PT Series tables be on all tables; table shown here: PT300) sure to observe all cautions and warnings given in the manual to prevent injury to both operator and client. -
Page 11: Adjusting The Backrest
DIRECTIONS FOR USE • Adjusting the Backrest DIRECTIONS FOR USE ADJUSTING THE BACKREST: The backrest is adjusted manually. The release handles are found on the frame of the table just below the backrest on both sides of the table. They work in tandem and can be accessed on either side of the table. -
Page 12: Adjusting The Articulating Head Rest
DIRECTIONS FOR USE Adjusting the Articulating Head Rest • DIRECTIONS FOR USE A D JU S T IN G T H E A RT I CUL A T IN G H EA D R EST ( P T2 0 0, P T3 0 0 & OR T H OP ED I C H I -L O C AS TI NG TAB LE ) To Adjust the Angle of the Articulating Head Rest: Certain models in the PT Line come with an Articulating Head Rest Section that has an adjustment range of 40˚... - Page 13 DIRECTIONS FOR USE Adjusting the Articulating Head Rest • DIRECTIONS FOR USE US E O F T H E A R T IC UL A T IN G H EAD REST SECT ION (P T2 0 0 , P T 3 0 0 ) The Articulating Head Rest is designed to give comfort and support for various techniques in both prone and supine positioning.
-
Page 14: Adjusting The Optiona Security Side Rail
DIRECTIONS FOR USE • Adjusting the Articulating Head Rest • Adjusting the Siderail (PT300 & Orthopedic Hi-lo Casting Table only) DIRECTIONS FOR USE U S E OF T H E A R T I CUL A T IN G HEA D R EST SECT ION (P T 20 0 , P T 3 0 0 &... -
Page 15: Moving The Table
All models can be moved and set-up in different rooms thus ensuring that you expend your energy on the client, not the equipment. The PT Series of tables are equipped with two wheels at one end and two self-locking, molded rubber feet at the other. When ready to WARNING move the table, first lower the table to it’s lowest position. -
Page 16: Quicklock™ Face Rest
DIRECTIONS FOR USE • QuickLock™ Face Rest DIRECTIONS FOR USE QUICKLOCK™ FACE REST: * U.S. Patent #5,177,823 ( OP TI ONAL ON P T 1 0 0 ) Double articulating action provides nearly limitless positioning options with the QuickLock Face Rest.The adjustable pad takes ™... - Page 17 DIRECTIONS FOR USE QuickLock Face Rest ™ • DIRECTIONS FOR USE QUICKLOCK™ FACE REST (CONTINUED): * U.S. Patent #5,177,823 ATTACHING THE QUICKLOCK™ FACE REST: (cont) PT300 & Orthopedic Hi-0Lo Casting Table Models only: When attaching the QuickLock Face Rest, slide the frame dowels ™...
- Page 18 DIRECTIONS FOR USE • QuickLock™ Face Rest DIRECTIONS FOR USE QUICKLOCK™ FACE REST (CONTINUED): CAUTION Do Not extend the dowels of the Face Rest further than 3” • The face pad is flexible so that you can bring the open ends from the table edge to ensure together or spread them apart to achieve the most comfortable a stable connection.
-
Page 19: Section Iii: Care & Cleaning
CARE AND CLEANING • How to care for Your Upholstery • How to Care for Your Table Base & Controls CARE & CLEANING HOW TO CARE FOR YOUR UPHOLSTERY: In order to maintain the quality and ensure the life of the table, here are some preventative steps that can be taken to protect the upholstery on the chair and accessories. -
Page 20: Section Iv: Specifications
SPECIFICATIONS SPECIFICATIONS - ELECTRICAL COMPONENTS PT100 Model No: PXRT Designed for: North America Europe/United Kingdom Japan/Korea Voltage/Current Service Available 120 VAC/20 amp 220 VAC/10 amp 100 VAC/20 amp Current Comsumption 1.5 amps .8 amps 1.8 amps Omput Frequency 60 hz 50 Hz 50 /60 Hz Voltage Output... - Page 21 SPECIFICATIONS SPECIFICATIONS - ELECTRICAL COMPONENTS PT300 Model No: PXAB30 Designed for: North America Europe/United Kingdom Japan/Korea Voltage/Current Service Available 120 VAC/20 amp 220 VAC/10 amp 100 VAC/20 amp Current Comsumption 1.5 amps .8 amps 1.8 amps Omput Frequency 60 hz 50 Hz 50 /60 Hz Voltage Output...
-
Page 22: Section V: Product Identification
PRODUCT IDENTIFICATION • Power Lead Plugs PRODUCT IDENTIFICATION POWER LEAD PLUGS Voltage (AC) Power Cord Plug 120v 60 Hz 3 prong grounded hospital grade; North America 220v 50 Hz Continental Plug; Europe 220v 50 Hz Swiss plug; Switzerland 220v 50 Hz British plug;... -
Page 23: Section Vi: Warranty
WARRANTY STATEMENT •All Models WARRANTY STATEMENT ALL PT MODELS For full warranty details, please visit www.oakworks.com All warranties are limited to factory-provided replacement parts, factory repair or replacement, at the discretion of O ® AKWORKS All warranties exclude damage caused by improper set-up, accident, abuse, misuse, neglect, use for other than intended purpose or reasonable wear such as tears in the upholstery. -
Page 24: Contact Information
Toll Free (USA only): 800-916-4613 Phone: 717-235-6807 FAX: 717-235-6798 www.oakworks.com U L 2 6 0 1 - 1 C S A C 2 2 . 2 N O . 6 0 1 . 1 I E C 6 0 6 0 1 - 2 ( 2 0 0 1 - 0 9 ) Manual: Part # MMMNST0009 rev.
