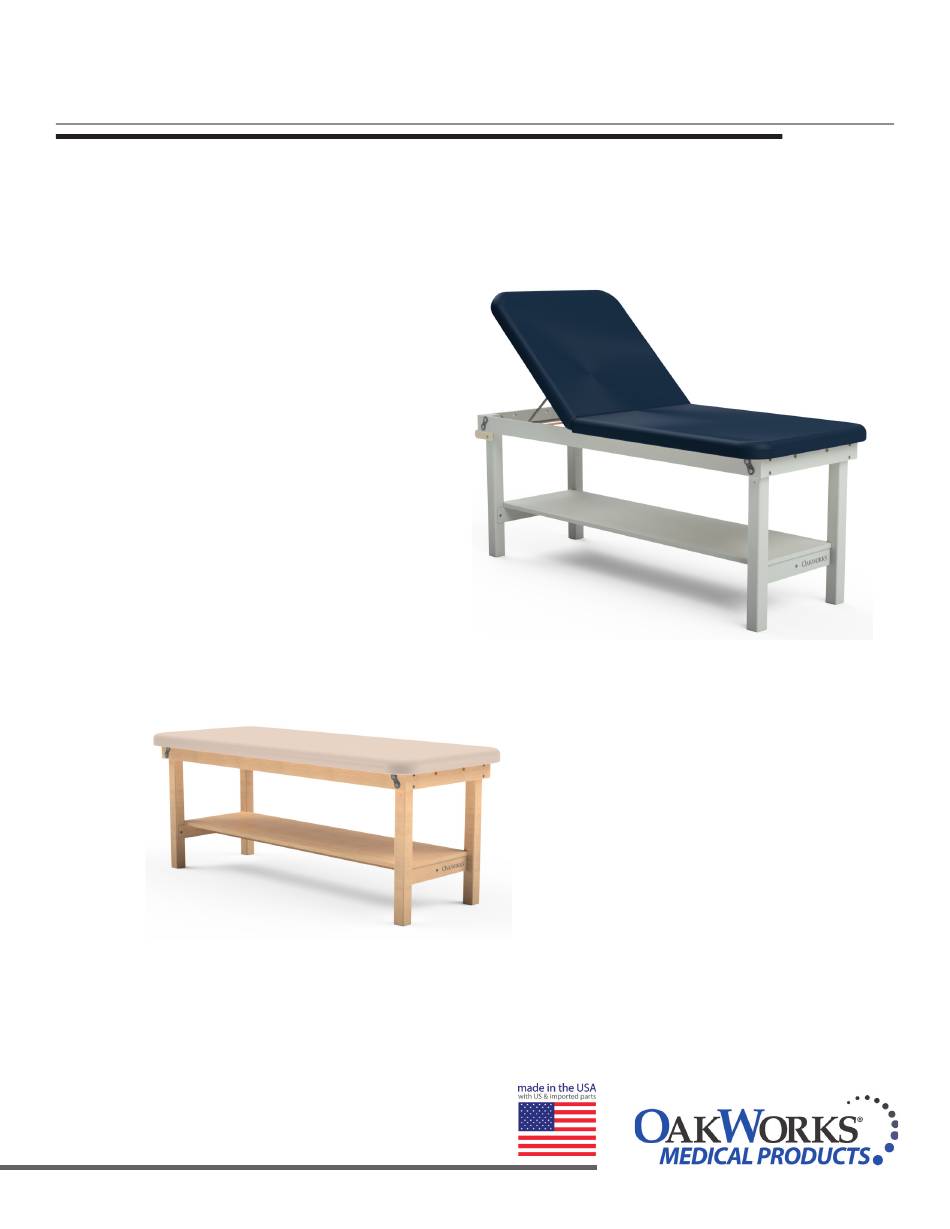

- Page 1 USER MANUAL OAKWORKS ® Treatment Tables Powerline Series Backrest Seychelle Series Flat Top www.oakworks.com · 717.235.6807...
- Page 2 OAKWORKS , Inc. tial damages in connection with or ® arising out of the furnishing, per- formance, or use of this document OAKWORKS is a registered and the program material which it ® trademark of OAKWORKS , Inc. describes. ®...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Product Use Description ..................... 1 Symbol Identification ....................1 Important Safety Instructions ..................1 Product Description & Photo Powerline Series ....................2-3 Seychelle Series ....................4-5 Installation Table Assembly ....................6 Inset Shelf ......................6 Directions for Use Paper Roll Holder Use .................. -
Page 4: Product Use Description
P R O D U C T U S E D E S C R I P T I O N The Oakworks Powerline & Seychelle Tables are used to support the patient during exami- nations and procedures. They are intended to be operated by a professional in an exam/ treatment environment. -
Page 5: Product Description & Photo

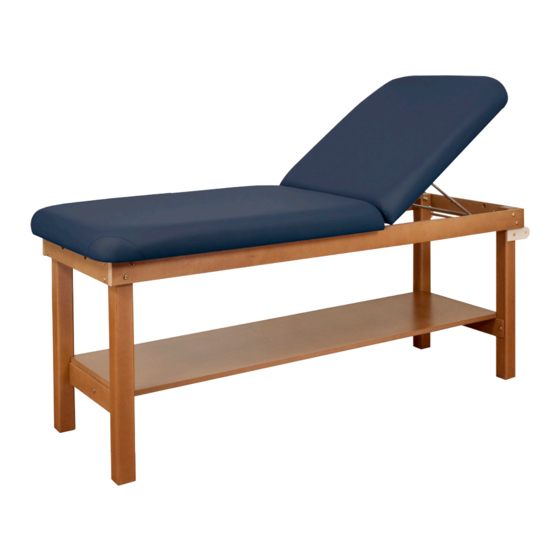

PRODUCT DESCRIPTION Powerline Flat Top STANDARD SPECIFICATIONS Height Fixed 30” (76 cm.) Table Capacity 500 lbs. (226 kg.) (patient and accessories) Widths 24” (61 cm.), 27” (69 cm.), or 30” (76 cm.) Length 72” (183 cm.) Padding 2.5” (6 cm.) Semi-Firm Paper Roll Holder Accommodates up to 21”... - Page 6 PRODUCT DESCRIPTION Powerline Wave Backrest STANDARD SPECIFICATIONS Height Fixed 30” (76 cm.) Wave Backrest Manual 0-60º, 6 set positions Table Capacity 500 lbs. (226 kg.) (patient and accessories) Widths 24” (61 cm.), 27” (69 cm.), or 30” (76 cm.) Length 72”...
-
Page 7: Seychelle Series
PRODUCT DESCRIPTION Seychelle Flat Top STANDARD SPECIFICATIONS Height Fixed 30” (76 cm.) Table Capacity 500 lbs. (226 kg.) (patient and accessories) Widths 24” (61 cm.), 27” (69 cm.), or 30” (76 cm.) Length 72” (183 cm.) Padding 3” (8 cm.) Comfort Table Weight 90 lbs. - Page 8 PRODUCT DESCRIPTION Seychelle Wave Backrest STANDARD SPECIFICATIONS Height Fixed 30” (76 cm.) Wave Backrest Manual 0-60º, 6 set positions Table Capacity 500 lbs. (226 kg.) (patient and accessories) Widths 24” (61 cm.), 27” (69 cm.), or 30” (76 cm.) Length 72”...
-
Page 9: Installation Table Assembly
INSTALLATION T A B L E A S S E M B L Y TOOLS REQUIRED: 9/16” / 14mm Wrench/Socket SUPPLIED PARTS: LEG HARDWARE LEG BRACE TOOLS 8 -Reinforcement Plates 1 - Wood Leg Brace 1 - Large Allen Wrench 16 - Spring Washers 2 - Short Bolts 1 - Small Allen Wrench... -
Page 10: Directions For Use
DIRECTIONS FOR USE P A P E R R O L L H O L D E R U S E After the table is set-up, Using the supplied Locate the wooden To secure the wood- locate the hole in the leg screw &... -
Page 11: Quicklock Face Rest
DIRECTIONS FOR USE Q U I C K L O C K F A C E R E S T CAUTION • Do not put excessive weight or pressure on the Quicklock Face Rest. • Do not extend the dowels of the Quicklock Face Rest 3” (7.6 cm.) from the table top. •... -
Page 12: Cleaning & Disinfection
Follow the cleaners/disinfectant manufacturers’ directions for use. Please note that cleaning and dis- infecting an Oakworks table is a two part process. First it must be cleaned of any visible soil, then it can be disinfected. Oakworks recommends that the table be positioned in the flat position during the cleaning process. -
Page 13: Inspections
INSPECTIONS / WARRANTY I N S P E C T I O N S RECOMMENDED REGULAR INSPECTIONS (monthly or local standard) • Visually inspect components for obvious damage that could cause problems during operation. RECOMMENDED PERIODIC INSPECTIONS (yearly or local standard) •... -
Page 14: Model Number & Serial Number
MODEL NUMBER & SERIAL NUMBER M O D E L & S E R I A L N U M B E R S The model number and serial number are located under the top of the table. Model Number 16796025 PWMPFT303072CFTTZZNTXXXX Serial Number Ser#: PWK1565022... -
Page 15: Specifications
SPECIFICATIONS PRODUCT SPECIFICATIONS Weight 90-113 lbs. (41-51) kg. Weight Limit 500 lbs. (226 kg.) ENVIRONMENTAL CONDITIONS Conditions Temperature Humidity Atmospheric Pressure Normal Use 50° (10°C) to 104° (40°C) 20% to 60% RH 98 to 105 kPa Storage & Transport -20° (-29°C) to 135° (57°C) 20% to 95% RH 98 to 105 kPa... -
Page 16: Contact Information
USER MANUAL OAKWORKS ® Treatment Tables C O N T A C T I N F O R M A T I O N: Oakworks Inc. ® 923 East Wellspring Road New Freedom, PA 17349 Phone: 717.235.6807 FAX: 717.235.6798 www.oakworks.com...
