- Page 1 USER MANUAL AKWORKS ® Prema e-nvi...
- Page 2 © Copyright 2023 ® AKWORKS , Inc. Notice The information contained within this document is subject to change without notice and should not be construed as a commitment by ® AKWORKS , Inc. ® AKWORKS , Inc. encourages requests for technical specifications Printed in U.S.A.
-
Page 3: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..........................5 PRODUCT USE DESCRIPTION ............................5 SYMBOL IDENTIFICATION ..............................5 IMPORTANT SAFETY INSTRUCTIONS ..........................6 PRODUCT DESCRIPTION ..............................8 Electric Salon ..................................8 CONTROL OPERATIONS- ELECTRIC SALON TABLES ....................9 Electric Backrest ................................10 CONTROL OPERATIONS- ELECTRIC BACKREST TABLES .................. - Page 4 This page is intentionally left blank. P a g e 4 | 28...
-
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS PRODUCT USE DESCRIPTION The product is a cord connected spa/massage table for commercial use. It is intended for indoor use. Maximum weight capacity of 500 lbs. The product is intended to be used by trained professionals in a controlled environment. A review of the following Safety Instructions is important for the safety of the operator and client. -
Page 6: Important Safety Instructions
Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Contact Oakworks Customer Service before use at 717.235.6807. Keep the cord away from heated surfaces. - Page 7 IMPORTANT SAFETY INSTRUCTIONS Risk of Injury - The picture below indicates areas of entrapment that can occur when operating this equipment. It is the responsibility of the operator to ensure that bystanders are not in or around these areas during operation. •...
-
Page 8: Product Description

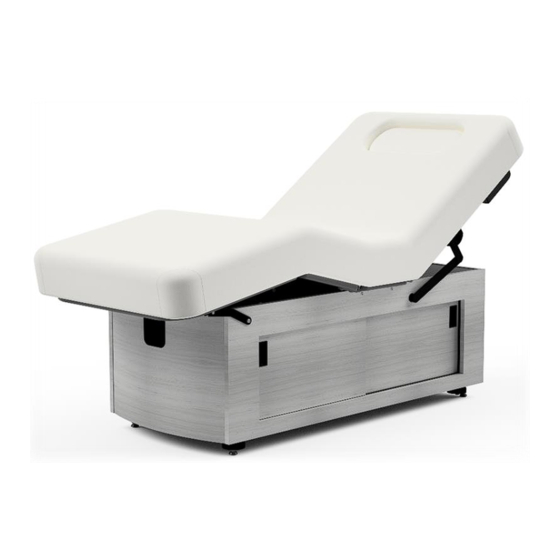

PRODUCT DESCRIPTION Prema e-nvi Salon Electric STANDARD SPECIFICATIONS OPTIONS Powered 22.5”-32.5” (57.2-82.0 cm.) Height Range Motion 1 Adjustable Breast Comfort (ABC) System Motion 2 Powered 0-70º Backrest Choice of 4 Cabinet configurations Motion 3 Powered 0-30º Foot Rest Wood Finishes... -
Page 9: Control Operations- Electric Salon Tables
CONTROL OPERATIONS- ELECTRIC SALON TABLES The Prema e-nvi Electric Salon Table offers height, backrest, footrest, and optional ABC positioning with electronic ease. Operate the foot and hand control as shown below to raise or lower the height, backrest, footrest, or optional ABC functions of the table. -
Page 10: Electric Backrest
PRODUCT DESCRIPTION Prema e-nvi Electric Backrest STANDARD SPECIFICATIONS OPTIONS Powered 22.5”-32.5” (57.2-82.0 cm.) Height Range Motion 1 Adjustable Breast Comfort (ABC) System Motion 2 Powered 0-70º Backrest Choice of 4 Cabinet configurations Foot Control All powered motions Wood Finishes Laminate Finishes... -
Page 11: Control Operations- Electric Backrest Tables
CONTROL OPERATIONS- ELECTRIC BACKREST TABLES The Prema e-nvi Electric Backrest Table offers height, backrest, and optional ABC positioning with electronic ease. Operate the foot and hand control as shown below to raise or lower the height, backrest, or optional ABC functions of the table. -
Page 12: Flat Top
PRODUCT DESCRIPTION Prema e-nvi Flat Top STANDARD SPECIFICATIONS OPTIONS Powered 22.5”-32.5” (57.2-82.0 cm.) Height Range Motion 1 Adjustable Breast Comfort (ABC) System Foot Control All powered motions Choice of 4 Cabinet configurations Hand Control All powered motions Wood Finishes Laminate Finishes... -
Page 13: Control Operations- Flat Top Tables
CONTROL OPERATIONS- FLAT TOP TABLES The Prema e-nvi Flat Top Table offers height and optional ABC positioning with electronic ease. Operate the foot and hand control as shown below to raise or lower the height or optional ABC functions of the table. -
Page 14: Installation
INSTALLATION The tables come completely assembled and ready to use. Plug the cord into a functioning outlet that is rated for the table. (See Grounding below) Arrange the power cord and control cords so that they will not create a tripping hazard. Be sure access to the plug is not blocked for disconnecting the table from power. -
Page 15: Under-Table Cabinet & In-Cabinet Power Receptacle
INSTALLATION UNDER-TABLE CABINET & IN-CABINET POWER RECEPTACLE TO ACCESS THE STORAGE IN THE UNDER TABLE CABINET: The large under-table cabinet provides storage for stacks of towels and other equipment. For Open Shelf & Sliding Door models, a power strip is located inside the cabinet at the foot end of the table. For Storage Drawer & Warming Drawer models, a power receptacle is located in the wall of the open shelf area at the head end. -
Page 16: Directions For Use
DIRECTIONS FOR USE LEVELLING INSTRUCTIONS 1. Place the table in the location where you plan to use 2. Rock the table to determine if it is level with the floor. If the table rocks back and forth at all, the foot that clears the floor when you rock the table will need adjustment. -
Page 17: Removing The Top Pad
DIRECTIONS FOR USE REMOVING THE TOP PAD The top pad has been designed to be easily removable and replaceable with no tools needed. IF THE TABLE HAS A SOVI SOUND SYSTEM TOP: Unplug the table from the wall outlet and disconnect the wires circled from the box located under the platform. Pull the cables through the platform before completely removing the top pad. -
Page 18: Integrated Heated Top (Option)
DIRECTIONS FOR USE REMOVING THE TOP PAD INTEGRATED HEATED TOP (OPTION) USING THE INTEGRATED HEATED TOP: The table comes with the option for a fully integrated heated top pad. Simply press the heating indicator located on the right side of the table to the desired heat level. The heat can reach up to 43°C (110°F). -
Page 19: Adjustable Breast Comfort (Abc) System (Option)
DIRECTIONS FOR USE ADJUSTABLE BREAST COMFORT (ABC) SYSTEM (OPTION) P a g e 19 | 28... -
Page 20: Head Rest (Accessory Option)
DIRECTIONS FOR USE HEAD REST (ACCESSORY OPTION) Double articulating action provides nearly limitless positioning options with the QuickLock Face Rest. The adjustable pad takes pressure off sensitive facial areas while providing superb support. The QuickLock Face Rest can be used in both prone and supine positioning and folds out of the way when not in use. -
Page 21: Adjustable Side Arm Rests (Accessory Option)
DIRECTIONS FOR USE ADJUSTABLE SIDE ARM RESTS (ACCESSORY OPTION) P a g e 21 | 28... -
Page 22: Boiance Shelf Support: (Accessory Option)
DIRECTIONS FOR USE BOIANCE SHELF SUPPORT: (ACCESSORY OPTION) P a g e 22 | 28... -
Page 23: Cleaning & Disinfection
CLEANING & DISINFECTION RECOMMENDED CLEANERS/DISINFECTANTS To reduce the risk of electric shock, always unplug this furnishing from the electrical outlet before cleaning. Reference the Recommended Cleaners and Disinfectant list (MMINML0008-EN) found at www.oakworksmed.com under product information. This information can also be found at www.oakworksmed.com under product information. All cleaners and disinfectants have the ability to degrade the upholstery to some extent. -
Page 24: Inspections
INSPECTIONS & WARRANTY INSPECTIONS RECOMMENDED REGULAR INSPECTIONS (monthly or local standard) • Check for damage to the power, hand control(s) and foot control(s) on all cables. • Visually inspect components for obvious damage that could cause problems during operation. • If the table is creaking/ squeaking during movement of the electric salon top, apply a small amount of lithium grease to the linkages and bushings indicated below. -
Page 25: Model Number & Serial Number
MODEL NUMBER & SERIAL NUMBER PRODUCT LABEL LOCATION P a g e 25 | 28... - Page 26 TABLE DIMENSIONS CABINET DIMENSIONS- OPEN SHELF MODEL 53” L x 24” W x 17” H Total Outside Dimensions 135 cm L x 61 cm W x 43 cm H 49” L x 22.5” W x 11” H Storage Volume Inside 124 cm L x 57 cm W x 28 cm H 41”...
-
Page 27: Specifications
SPECIFICATIONS PERMISSIBLE ENVIRONMENT CONDITIONS CONDITIONS TEMPERATURE HUMIDITY ATMOSPHERIC PRESSURE Normal Use 50° (10°C) to 104° (40°C) 20% to 60% RH 98 to 105 kPa Storage & Transport -20° (-29°C) to 135° (57°C) 20% to 95% RH 98 to 105 kPa ELECTRICAL SPECIFICATIONS DESIGNED FOR: NORTH AMERICA... -
Page 28: Contact Information
USER MANUAL AKWORKS ® Prema e-nvi CONTACT INFORMATION: ® Inc. AKWORKS 923 East Wellspring Road New Freedom, PA USA 17349 Phone (717) 235-6807 FAX (717) 235-6798 www.oakworks.com Original Instructions Manual Part Number: SPA-RA-PM-161 Revision level: 1 Revision Date: 05/22/2023 English, Printed in USA...
