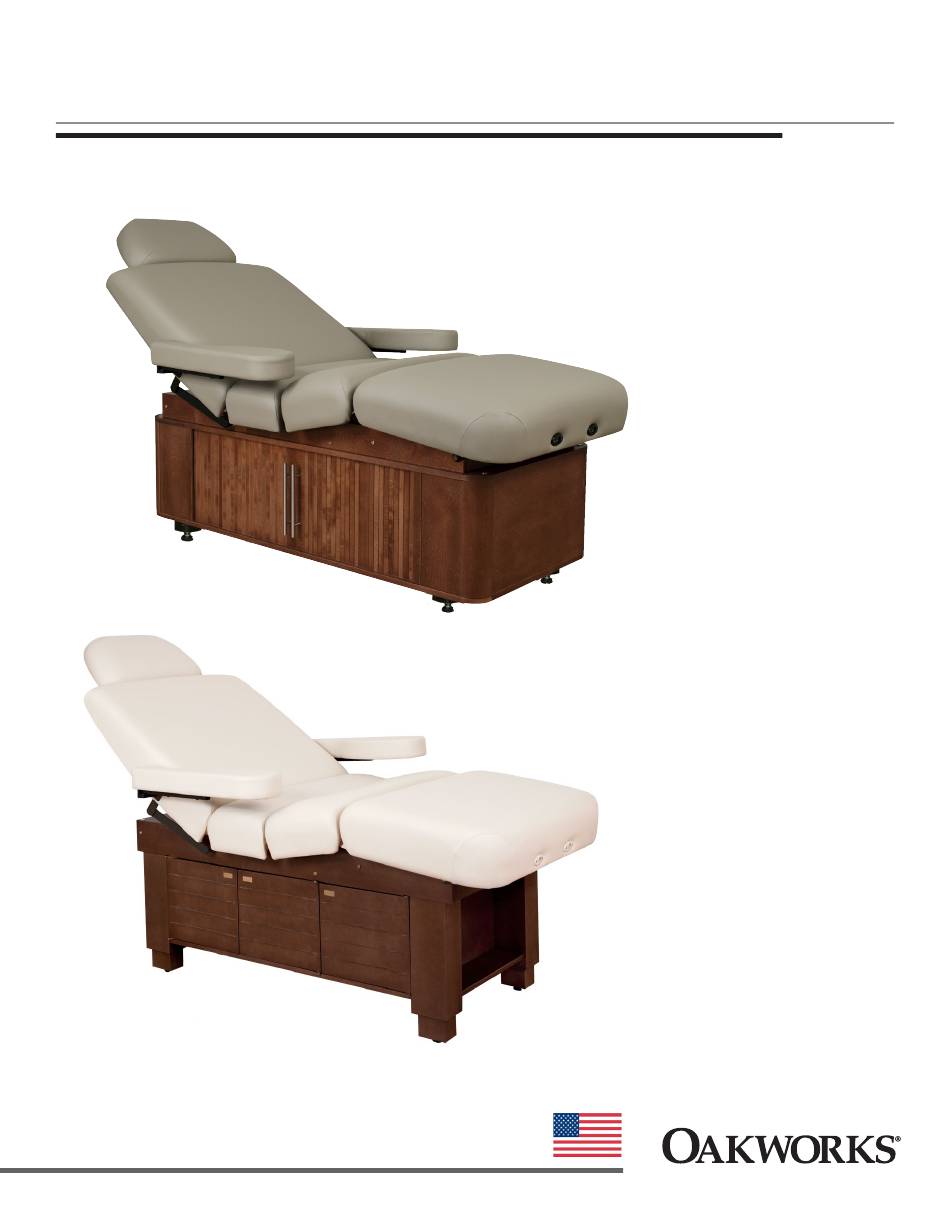

- Page 1 USER MANUAL Celesta ® Clodagh Gemini Celesta ® Clodagh Gemini made in the USA with US & imported parts www.OAKWORKS.com · 717.235.6807...
- Page 2 ® damages in connection with or arising out of the furnishing, performance, or OAKWORKS is a registered use of this document and the program ® trademark of OAKWORKS , Inc. material which it describes. ®...
-
Page 3: Table Of Contents
Product Use Description ........................1 Symbol Identification ......................... 1 Important Safety Instructions ...................... 2-3 Product Description & Photo Celesta ..............................4 Clodagh Gemini ........................... 5 Installation Grounding ............................. 6 Directions for Use In Cabinet Outlet ..........................7 Levelling ..............................7 Table Keyswitch ........................... -
Page 4: Product Use Description
PRODUCT USE DESCRIPTION / IMPORTANT SAFETY INSTRUCTIONS PRODUCT USE DESCRIPTION The product is a cord connected spa/massage table for commercial use. It is intended for indoor use. Maximum weight capacity of 500 lbs. The product is intended to be used by trained professionals in a controlled environment. A review of the following Safety Instructions is important for the safety of the operator and patient. -
Page 5: Important Safety Instructions
Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Contact OAKWORKS® Inc., Customer Service before use at 717.235.6807. Keep the cord away from heated surfaces. - Page 6 IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS CAUTION The use of accessories, transducers, and cables other than those specified by the manufacturer, may result in increased emissions or decreased immunity of the table. The table should not be used adjacent to or stacked with other equipment and that if adjacent or stacked use is necessary, the table should be observed to verify normal operation in the configuration in which it will be used.
-

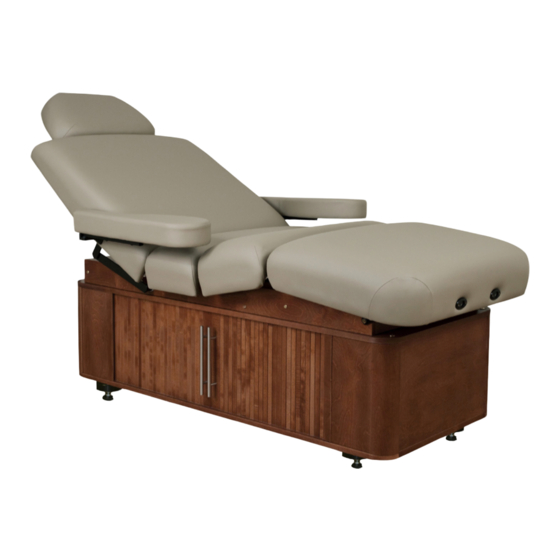

Page 7: Product Description & Photo
PRODUCT DESCRIPTION elesta Self Adjusting Removable Universal Arm Rests (2) Table Extender (option) (optional accessory) Fully Enclosed Cabinet Base Cabinet doors (access both sides) Accessory Outlets (2) Vertical Electronic Lift Columns (4) TABLE SPECIFICATIONS Height 25” - 37” (64 cm - 94 cm) Width 29”... -
Page 8: Clodagh Gemini
PRODUCT DESCRIPTION Clodagh Gemini ™ Self Adjusting Universal Removable Table Extender Arm Rests (2) (optional accessory) (option) Cabinet doors (6 - Accessory access both sides) Outlets (2) Vertical Electronic Lift Columns (4) Exterior Cabinet Fully Enclosed shelf; foot Cabinet Base... -
Page 9: Installation
INSTALLATION The tables come completely assembled and ready to use. Plug the cord into a functioning outlet that is rated for the table. (see Grounding below) Arrange the power cord and control cords so that they will not create a tripping hazard. Be sure access to the plug is not blocked for disconnecting the table from power. -
Page 10: In Cabinet Outlet
INSTALLATION IN CABINET OUTLET This product is equipped with an interior 120-volt 60Hz accessory outlet. The DANGER total electrical load of equipment plugged into this set of outlets is not to exceed 7 amps or 840 watts. Voltage will be different for other counties. This product offers an in-cabinet plug to accommodate hot towel cabinets or other accessories. -
Page 11: Foot Control Operations
DIRECTIONS FOR USE TABLE KEYSWITCH A table keyswitch is located inside the cabinet on the shelf at the head end of the table. This key switch will lock-out the table and prevent all motions. It should be used to prevent unauthorized use. -
Page 12: Electric Salon Top Tables Only
DIRECTIONS FOR USE FOOT CONTROL OPERATIONS - ELECTRIC SALON TOP TABLES ONLY CAUTION Do not sit on backrest or footrest sections. The hood area under the backrest top is not designed for storage. DO NOT use this area for holding anything as damage can occur to the table. The Electric Salon Top Tables offer backrest, height and footrest positioning with electronic ease. -
Page 13: Adjustable Body Comfort (Abc) Systems Only
Only use the ABC System as intended. For safety of your client, use a cloth sheet between the ABC System and your client. The OAKWORKS Adjustable Body Comfort (ABC) System is designed to lower the pressure on breasts and pecto- ®... -
Page 14: Hand Control Operations
DIRECTIONS FOR USE HAND CONTROL OPERATIONS - FLAT TOP TABLES ONLY When using the table Height Up function, do not place anything between the metal frame and the base CAUTION structure as damage can occur to the table. The Flat Top Tables offer height positioning and memory positions with electronic ease. Operate the hand con- trol as shown below to raise or lower the height of the table. -
Page 15: Electric Salon Top Tables Only
DIRECTIONS FOR USE HAND CONTROL OPERATIONS - ELECTRIC SALON TOP TABLES ONLY CAUTION Do not sit on backrest or footrest sections. The hood area under the backrest top is not designed for storage. DO NOT use this area for holding anything as damage can occur to the table. The Electric Salon Top Tables offer backrest, height and footrest positioning with electronic ease. -
Page 16: Adjustable Body Comfort (Abc) Systems Only
Only use the ABC System as intended. For safety of your client, use a cloth sheet between the ABC System and your client. The OAKWORKS Adjustable Body Comfort (ABC) System is designed to lower the pressure on breasts and pecto- ®... -
Page 17: Adjustable Body Comfort (Abc) System Use
Only use the ABC System as intended. For safety of your client, use a cloth sheet between the ABC System and your client. The OAKWORKS Adjustable Body Comfort (ABC) System is designed to lower the pressure on breasts and pectoral muscles, ®... -
Page 18: Under Table Cabinet
DIRECTIONS FOR USE UNDER TABLE CABINET To Access the Storage in the Under Table Cabinet: The table has a fully integrated beautiful wood cabinet and base. The large under-table cabinet provides storage for stacks of towels and other equipment and an in-cabinet plug to accommo- date hot towel cabinets and other accessories. -
Page 19: Moving The Table
DIRECTIONS FOR USE MOVING THE TABLE Before moving the table, disconnect the power cord from the power outlet CAUTION and secure the electrical cord, hand control and foot controls for moving. Grasp at base corner Position at low height range The table weighs approximately 300 lbs. -
Page 20: Arm Rest Installation And Adjustment Instructions
DIRECTIONS FOR USE ARM REST INSTALLATION AND ADJUSTMENT INSTRUCTIONS Do not use the arm rest for customer weight support during the mounting or CAUTION dismounting of the table. The arm rest is not designed to support the client’s weight. Adjustable Side Arm Rests Manicure Arm Rests OPTIONAL ACCESSORY AVAILABLE ON SALON TOP ONLY TO INSTALL THE ARM REST:... -
Page 21: Quicklock Tm Face Rest: (Accessory Option)
DIRECTIONS FOR USE QuickLock FACE REST: (ACCESSORY OPTION) • Do not put excessive weight or pressure on the Face Rest. CAUTION • Excessive pressure can cause premature failure of the Face Rest. • Do not extend more than 3 inches Double articulating action provides nearly limitless positioning options with the QuickLock Face Rest. -
Page 22: Cleaning & Disinfection
To reduce the risk of electric shock: DANGER - Always unplug this furnishing from the electrical outlet before cleaning. The following cleaners were tested by OAKWORKS ® and found to be acceptably compatible with all materials used in construction of our tables: Formula 409 ®... -
Page 23: Cleaning Process
- Always unplug this furnishing form the electrical outlet before cleaning. ® Follow the cleaners/disinfectant manufacturers’ directions for use. Please note that cleaning and disinfecting an OAKWORKS table is a two part process. First it must be cleaned of any visible soil, then it can be disinfected. The table should be cleaned as soon as possible after use. -
Page 24: Model Number & Serial Number
MODEL NUMBER & SERIAL NUMBER PRODUCT LABEL LOCATION The model number and serial number are located on the underside of the foot section. Serial Number Model Number 16796025 GNCDES312572ACTTVFN6 Ser#:GMC563146 Clodagh Gem E-Salon 31 x 25-37 x 72 ACTTVFN6TT TTButter 01/04/2013 Order#:654321 Notes: Sample Product Label Model Numbers and Serial Numbers always start with a letter. -
Page 25: Specifications
SPECIFICATIONS ELECTRICAL SPECIFICATIONS Designed for: North America Europe Electric Service 120VAC/15A 220VAC/10A Input Frequency 60 Hz 50 Hz Voltage Output 24 VDC 24 VDC Current Consumption 7.7 amps MAX 4.1 amps MAX w/o internal outlets Electric Shock Protection Class I Equipment Class I Equipment Intermittent Operation is Intermittent Operation is... - Page 26 THIS PAGE IS INTENTIONALLY LEFT BLANK...
- Page 27 THIS PAGE IS INTENTIONALLY LEFT BLANK...
-
Page 28: Contact Information
USER MANUAL Celesta and Clodagh Gemini ® CONTACT INFORMATION: Inc. ® AKWORKS 923 East Wellspring Road New Freedom, PA 17349 Phone: 717-235-6807 FAX: 717-235-6798 www.oakworks.com 3034177 CONFORMS TO: UL STD 962 Certified to CAN/CSA STD C22.2 #68 Original Instructions Manual Part Number: SPA-RA-PM-132...
