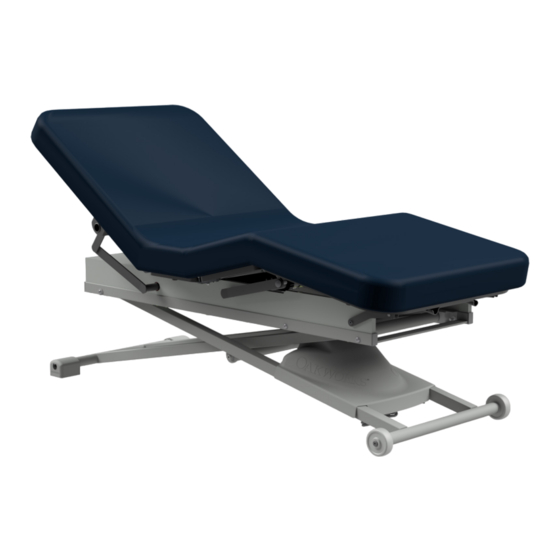

OAKWORKS PX Series User Manual
Hide thumbs Also See for PX Series:

Advertisement

Quick Links

USER MANUAL
OAKWORKS
PX Series
www.oakworks.com · 717.235.6807

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for OAKWORKS PX Series

  • Page 1 USER MANUAL OAKWORKS PX Series www.oakworks.com · 717.235.6807...
  • Page 2 OAKWORKS , Inc. tial damages in connection with or ® arising out of the furnishing, per- formance, or use of this document OAKWORKS is a registered and the program material which it ® trademark of OAKWORKS , Inc. describes. ®...
  • Page 3: Table Of Contents

    Recommended Cleaners/Disinfectants .............. 16 Cleaning Process ....................16 Inspections & Maintenance ..................17 Warranty Information ....................17 Model Number & Serial Number PX Series ......................18 Specifications Table Dimensions .................... 19 Product Specifications ..................20 Environmental Conditions .................. 20 Electrical Specifications ..................20 Guidance and manufacturer’s declaration -...
  • Page 4: Product Use Description

    P R O D U C T U S E D E S C R I P T I O N The Oakworks PX Tables are used to support the patient during examinations and procedures. They are intended to be operated by a healthcare professional in a medical environment. No special train- ing is required but a review of the following Safety Instructions is important for the safety of the oper- ator and patient.
  • Page 5 2. Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Contact Oakworks Customer Service before use at 717.235.6807. 3. Keep the cord away from heated surfaces.
  • Page 6 ENTRAPMENT • Risk of Injury - The picture below indicate areas of entrapment that can occur when operating this equip- ment. It is the responsibility of the operator to ensure that bystanders are not in or around these areas dur- ing operation.
  • Page 7: Installation

    INSTALLATION The Tables come completely assembled and ready to use. Plug the cord into a functioning outlet that is rated for the table. (See Grounding below) Arrange the power cord and control cords so that they will not create a tripping hazard and where the controls are located to your liking and are conveniently accessible.
  • Page 8: Product Description & Photo

    PRODUCT DESCRIPTION PX300 STANDARD SPECIFICATIONS OPTIONS Motion 1 w/ 4” Foam Powered 22”-40” (57-102 cm.) Height Range Dual Locking Casters Motion 2 Powered 0-70º Backrest Integrated Heated Top ACCESSORIES Motion 3 Powered 0-30º Foot Rest Foot Control All powered motions QuickLock Face Rest Table Voltage Options 120V/60Hz - 230V/50Hz...
  • Page 9: Control Operation - Px300

    PRODUCT DESCRIPTION C O N T R O L O P E R A T I O N S - P X300 Do not sit on the backrest or leg rest sections. Be sure the self-locking molded rubber feet are flat side CAUTION down to ensure safety and stability.
  • Page 10: Px150

    PRODUCT DESCRIPTION PX150 STANDARD SPECIFICATIONS OPTIONS Motion 1 w/ 4” Foam Powered 22”-40” (57-102 cm.) Height Range Dual Locking Casters Motion 2 Manual 0-80º Backrest Integrated Heated Top ACCESSORIES Foot Control Height Range Table Voltage Options 120V/60Hz - 230V/50Hz QuickLock Face Rest Table Capacity 550 lbs.
  • Page 11: Control Operation - Px150

    PRODUCT DESCRIPTION C O N T R O L O P E R A T I O N S - P X150 CAUTION Be sure the self-locking molded rubber feet are flat side down to ensure safety and stability. The PX150 tables offer height positioning with electronic ease. Operate the foot control and/or hand control as shown below to raise or lower the height of the table.
  • Page 12: Px100

    PRODUCT DESCRIPTION PX100 STANDARD SPECIFICATIONS OPTIONS Motion 1 w/ 4” Foam Powered 19”-36.5” (48-93 cm.) Height Range Dual Locking Casters Foot Control Height Range Integrated Heated Top ACCESSORIES Table Voltage Options 120V/60Hz - 230V/50Hz Table Capacity 550 lbs. (250 kg.) (Patient and accessories) QuickLock Face Rest Widths 29”...
  • Page 13: Control Operation - Px100

    PRODUCT DESCRIPTION C O N T R O L O P E R A T I O N S - P X100 CAUTION Be sure the self-locking molded rubber feet are flat side down to ensure safety and stability. The PX100 tables offer height positioning with electronic ease. Operate the foot control and/or hand con- trol as shown below to raise or lower the height of the table.
  • Page 14: Directions For Use

    DIRECTIONS FOR USE GAS-ASSIST BACKREST ADJUSTMENT CAUTION Do not sit on the backrest section. TO RAISE THE BACKREST TO LOWER THE BACKREST: Raise the back rest by pressing the lever Press the lever under the head section and under the head section and lifting up to push the back rest down.
  • Page 15: Moving The Table

    DIRECTIONS FOR USE M O V I N G T H E T A B L E CAUTION Before moving any of the tables, disconnect the power cord from the power outlet. The table weighs as much as 200 lbs. (91 kg.) Use extreme caution when lifting the table to move it. Two people are required to move the table safely.
  • Page 16: Integrated Heated Top (Option)

    DIRECTIONS FOR USE INTEGRATED HEATED TOP (OPTION) USING THE INTEGRATED HEATED TOP: The table comes with the option for a fully integrated heated top pad. Simply press the heating indicator located on the right side rail of the table to the desired heat level. The heat can reach up to 40 C (105 °...
  • Page 17: Quicklock Face Rest (Accessory Option)

    DIRECTIONS FOR USE QUICKLOCK FACE REST: (ACCESSORY OPTION) • QuickLock Face Rest Weight Limit - 25 lbs (11.3 kg) CAUTION • Do not put excessive weight or pressure on the Face Rest. • Excessive pressure can cause premature failure of the Face Rest. Double articulating action provides nearly limitless positioning options with the QuickLock Face Rest.
  • Page 18: Adjustable Side Arm Rests (Accessory Option - Px300 Only)

    DIRECTIONS FOR USE ADJUSTABLE SIDE ARM RESTS (ACCESSORY OPTION - PX300 ONLY) • Do not use the arm rest for client support during the mounting or dismounting of the chair. CAUTION • The arm rest is not designed to support the client’s weight. TO INSTALL THE ARM RESTS: The Arm Rests adjust automatically as the back rest moves to remain parallel to the floor.
  • Page 19: Cleaning & Disinfection

    Follow the cleaners/disinfectant manufacturers’ directions for use. Please note that cleaning and dis- infecting an Oakworks table is a two part process. First it must be cleaned of any visible soil, then it can be disinfected. Oakworks recommends that the table be positioned in the flat position during the cleaning process.
  • Page 20: Inspections & Maintenance

    INSPECTIONS / WARRANTY I N S P E C T I O N S RECOMMENDED REGULAR INSPECTIONS (monthly or local standard) • Check for damage to the power, hand control(s) and foot control(s) on all cables. • Visually inspect components for obvious damage that could cause problems during operation. •...
  • Page 21: Model Number & Serial Number

    MODEL NUMBER & SERIAL NUMBER M O D E L & S E R I A L N U M B E R The model number and serial number are located on the underside of the foot section. Serial Number Model Number 16796025 PXEX4EX1T410USXXXXXX Ser#:PXR563146 Proluxe Electric Salon 1/T/4/10/US/XX/XX/XX...
  • Page 22 T A B L E D I M E N S I O N - P X300 & P X150 T A B L E D I M E N S I O N - P X100...
  • Page 23: Specifications

    SPECIFICATIONS PRODUCT SPECIFICATIONS Table Weights: 151-200 lbs. (68-91 kg.) Lifting Capacity 550 lbs. (250 kg.) ENVIRONMENTAL CONDITIONS Conditions Temperature Humidity Atmospheric Pressure Normal Use 50° (10°C) to 104° (40°C) 20% to 60% RH 98 to 105 kPa Storage & Transport -20°...
  • Page 24: Guidance And Manufacturer's Declaration - Electromagnetic Emissions

    SPECIFICATIONS Guidance and manufacturer’s declaration - electromagnetic emissions The table is intended for use in the electromagnetic environment specified below. The customer or the user of the table should assure that it is used in such an environment. Emissions Test Compliance Electromagnetic environment - guidance The table uses RF energy only for its internal function.
  • Page 25: Guidance And Manufacturer's Declaration - Electromagnetic Immunity

    SPECIFICATIONS Guidance and manufacturer’s declaration - electromagnetic immunity The table is intended for use in the electromagnetic environment specified below. The customer or the user of the table should assure that it is used in such an environment. Electromagnetic Immunity Test IEC 60601 test level Compliance level Environment - guidance...
  • Page 26 SPECIFICATIONS Guidance and manufacturer’s declaration - electromagnetic immunity The table is intended for use in the electromagnetic environment specified below. The customer or the user of the table should assure that it is used in such an environment. Electromagnetic Immunity Test IEC 60601 test level Compliance level Environment - guidance...
  • Page 27 THIS PAGE IS INTENTIONALLY LEFT BLANK...
  • Page 28: Contact Information

    USER MANUAL OAKWORKS PX Series C O N T A C T I N F O R M A T I O N: Oakworks Inc. ® 923 East Wellspring Road New Freedom, PA 17349 Phone: 717.235.6807 FAX: 717.235.6798 www.oakworks.com 3034177...
