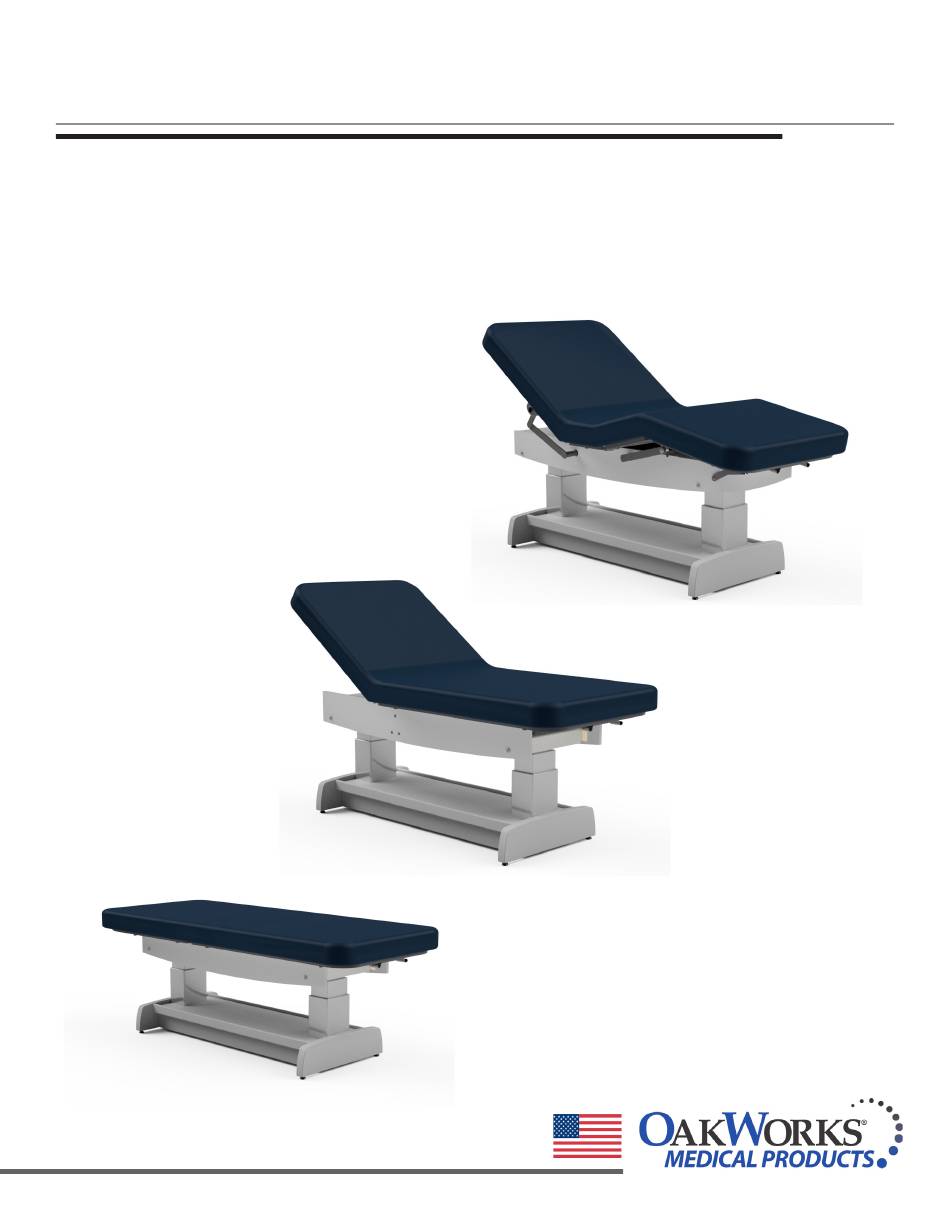

- Page 1 USER MANUAL OAKWORKS ® PF Series Tables PF400 PF250 PF200 made in the with US & imported www.oakworksmed.com · 717.235.6807...
- Page 2 OAKWORKS , Inc. tial damages in connection with or ® arising out of the furnishing, per- formance, or use of this document OAKWORKS is a registered and the program material which it ® trademark of OAKWORKS , Inc. describes. ®...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Product Use Description ....................1 Important Safety Instructions Symbol Identification ................... 1 Safety Instructions .................... 1-2 Product Description & Photo PF400 ......................... 3 PF250 ......................... 4 PF200 ......................... 5 Installation Grounding ......................6 Directions for Use Foot Control Operations PF400 Tables Only .................. -
Page 4: Product Use Description
PRODUCT USE DESCRIPTION / IMPORTANT SAFETY INSTRUCTIONS P R O D U C T U S E D E S C R I P T I O N The PF Exam Table is a powered positioning table used for routine treatment and examination proce- dures. - Page 5 2. Unplug from outlet before adding or removing parts. 3. Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Contact Oakworks Customer Service before use.
-
Page 6: Product Description & Photo
PRODUCT DESCRIPTION PF400 STANDARD SPECIFICATIONS OPTIONS Motion 1 Powered 21”-37” (53-974cm.) Height Wood Finishes Range Locking Casters Powered ±15º Trendelenburg/ Reverse Integrated Heated Top Motion 2 Trendelenburg ACCESSORIES Motion 3 Powered 0-55º Backrest QuickLock Face Rest Motion 4 Powered 0-50º Foot Rest Table Extender - 12”... -
Page 7: Pf250
PRODUCT DESCRIPTION PF250 STANDARD SPECIFICATIONS OPTIONS Motion 1 Powered 22”-37.5” (56-95 cm.) Height Wood Finishes Range Locking Casters Motion 2 Powered ±15º Trendelenburg/ Reverse Integrated Heated Top Trendelenburg ACCESSORIES Motion 3 Manual 0-80º Backrest QuickLock Face Rest Foot Control All powered motions Table Extender - 12”... -
Page 8: Pf200
PRODUCT DESCRIPTION PF200 STANDARD SPECIFICATIONS OPTIONS Motion 1 Powered 20.5”-36” (52-91 cm.) Height Wood Finishes Range Locking Casters Powered ±15º Trendelenburg/ Reverse Integrated Heated Top Motion 2 Trendelenburg ACCESSORIES Foot Control All powered motions QuickLock Face Rest 100V/60Hz - 230V/50Hz Switch Mode Table Voltage Options Table Extender - 12”... -
Page 9: Installation
INSTALLATION All tables come completely assembled and ready to use. Plug the cord into a functioning outlet that is rated for the table. (See Grounding below) Arrange the power cord and control cords so that they will not create a tripping hazard and where the controls are located to your liking and are conveniently accessible. -
Page 10: Directions For Use
DIRECTIONS FOR USE F O O T C O N T R O L O P E R A T I O N S - P F400 O N L Y CAUTION Do not sit on backrest or footrest sections. The hood area under the backrest top is not designed for storage. -
Page 11: Pf250 & Pf200 Tables Only
DIRECTIONS FOR USE F O O T C O N T R O L O P E R A T I O N S - P F250 & P F200 T A B L E S O N L Y CAUTION For Lift-Assist Backrest Tables;... -
Page 12: Optional Hand Control Operations
DIRECTIONS FOR USE O P T I O N A L H A N D C O N T R O L O P E R A T I O N S - P F400 O N L Y CAUTION Do not sit on backrest or footrest sections. -
Page 13: Pf250 & Pf200 Tables Only
DIRECTIONS FOR USE O P T I O N A L H A N D C O N T R O L O P E R A T I O N S - P F250 & P F200 T A B L E S O N L Y CAUTION For Lift-Assist Backrest Tables;... -
Page 14: Moving The Table
DIRECTIONS FOR USE M O V I N G T H E T A B L E CAUTION Before moving the table, disconnect the power cord from the power outlet. The table weighs as much as 235 lbs. (107 kg.) Never lift the table by grasping the table top. You could damage the table and the electronics that run the tabletop. -
Page 15: Lift-Assist Backrest Adjustment
DIRECTIONS FOR USE L I F T-A S S I S T B A C K R E S T U S E (P F250) CAUTION Do not sit on the Backrest section. TO RAISE THE BACKREST: TO LOWER THE BACKREST: Raise the back rest by pressing the lever Press the lever under the head section and under the head section and lifting up to... -
Page 16: Removing The Top Pad
DIRECTIONS FOR USE R E M O V I N G T O P P A D The top pad has been designed to be easily removable and replaceable with no tools needed. IF THE TABLE HAS A HEATED TOP: Unplug the table from the wall outlet and disconnect the wires circled from the control box located under the platform. -
Page 17: Integrated Heated Top (Option)
DIRECTIONS FOR USE INTEGRATED HEATED TOP (OPTION) USING THE INTEGRATED HEATED TOP: The table comes with the option for a fully integrated heated top pad. Simply press the heating indicator located on underneath the platform on the right side of the table to the desired heat level. The heat can reach up to 40°C (105°F). -
Page 18: Quicklock Face Rest (Accessory Option)
DIRECTIONS FOR USE Q U I C K L O C K F A C E R E S T (A C C E S S O R Y O P T I O N) • QuickLock Face Rest Weight Limit - 25 lbs (11.3 kg) CAUTION •... -
Page 19: Adjustable Side Arm Rest (Accessory Option)
DIRECTIONS FOR USE ADJUSTABLE SIDE ARM RESTS (ACCESSORY OPTION - PF400 ONLY) • Do not use the arm rest for client support during the mounting or dismounting of the CAUTION chair. • The arm rest is not designed to support the client’s weight. TO INSTALL THE ARM RESTS: The Arm Rests adjust automatically as the back rest moves to remain parallel to the floor. -
Page 20: Cleaning & Disinfection
Follow the cleaners/disinfectant manufacturers’ directions for use. Please note that cleaning and disin- fecting an OAKWORKS ® table is a two part process. First it must be cleaned of any visible soil, then it can be disinfected. OAKWORKS ® recommends that the table be positioned in the flat position during the cleaning process. -
Page 21: Inspections & Maintenance
• Clean unusual buildup of dirt on the table and/or parts of the table not normally cleaned on a regular basis. • Check for tears or cracks in the upholstery. W A R R A N T Y View complete warranty details at www.oakworks.com... -
Page 22: Model Number & Serial Number
MODEL NUMBER & SERIAL NUMBER M O D E L & S E R I A L N U M B E R S The model number and serial numbers are located on the lift column at the foot end of the table. Model Number 16796025 PFEX4EX1T410USXXXX SER#: PEX123456... -
Page 23: Specifications
SPECIFICATIONS PRODUCT SPECIFICATIONS Weight 235 lbs. (107 kg.) Lifting Capacity 550 lbs. (250 kg.) ENVIRONMENTAL CONDITIONS Conditions Temperature Humidity Atmospheric Pressure Normal Use 50° (10°C) to 104° (40°C) 20% to 60% RH 98 to 105 kPa Storage & Transport -20° (-29°C) to 135° (57°C) 20% to 95% RH 98 to 105 kPa ELECTRICAL SPECIFICATIONS... -
Page 24: Guidance And Manufacturer's Declaration - Electromagnetic Emissions
Guidance and manufacturer’s declaration - electromagnetic emissions The table is intended for use in the electromagnetic environment specified below. The customer or the user of the table should assure that it is used in such an environment. Emissions Test Compliance Electromagnetic environment - guidance The table uses RF energy only for its internal RF emissions... -
Page 25: Guidance And Manufacturer's Declaration - Electromagnetic Immunity
SPECIFICATIONS Guidance and manufacturer’s declaration - electromagnetic immunity The table is intended for use in the electromagnetic environment specified below. The customer or the user of the table should assure that it is used in such an environment. Electromagnetic Immunity Test IEC 60601 test level Compliance level environment - guidance... - Page 26 SPECIFICATIONS Guidance and manufacturer’s declaration - electromagnetic immunity The table is intended for use in the electromagnetic environment specified below. The customer or the user of the table should assure that it is used in such an environment. Electromagnetic Immunity Test IEC 60601 test level Compliance level environment - guidance...
- Page 27 THIS PAGE IS INTENTIONALLY LEFT BLANK...
-
Page 28: Contact Information
USER MANUAL OAKWORKS ® PF Series Tables C O N T A C T I N F O R M A T I O N: Oakworks Inc. ® 923 East Wellspring Road New Freedom, PA 17349 Phone: 717.235.6807 FAX: 717.235.6798 www.oakworksmed.com...
