Pre-commissioning preparation:

An experienced operator must visually inspect the press for leakage and damage. Such inspection
must furthermore take place at least once a year.
The press comes filled with hydraulic oil.
Connection of electricity
The power connection must be carried out by a professionally trained electrician, furthermore, should
be in accordance with the wiring instructions found inside of the motor's top cover. It must be then
checked that the motor's direction of rotation is as shown on the arrow on the end cover.
Bleeding of the hydraulic system
Activate the piston to full/maximum stroke length and return. Repeat this three times.

Operating instruction

Lifting and lowering of the table

The table must be free of v-blocks, other tooling, and work-pieces, when lifting and
lowering.
To lift and lower the table to the desired working height, the press is equipped with a winch.
Before raising/lowering the table, return the piston of the press by pulling the operating lever up.

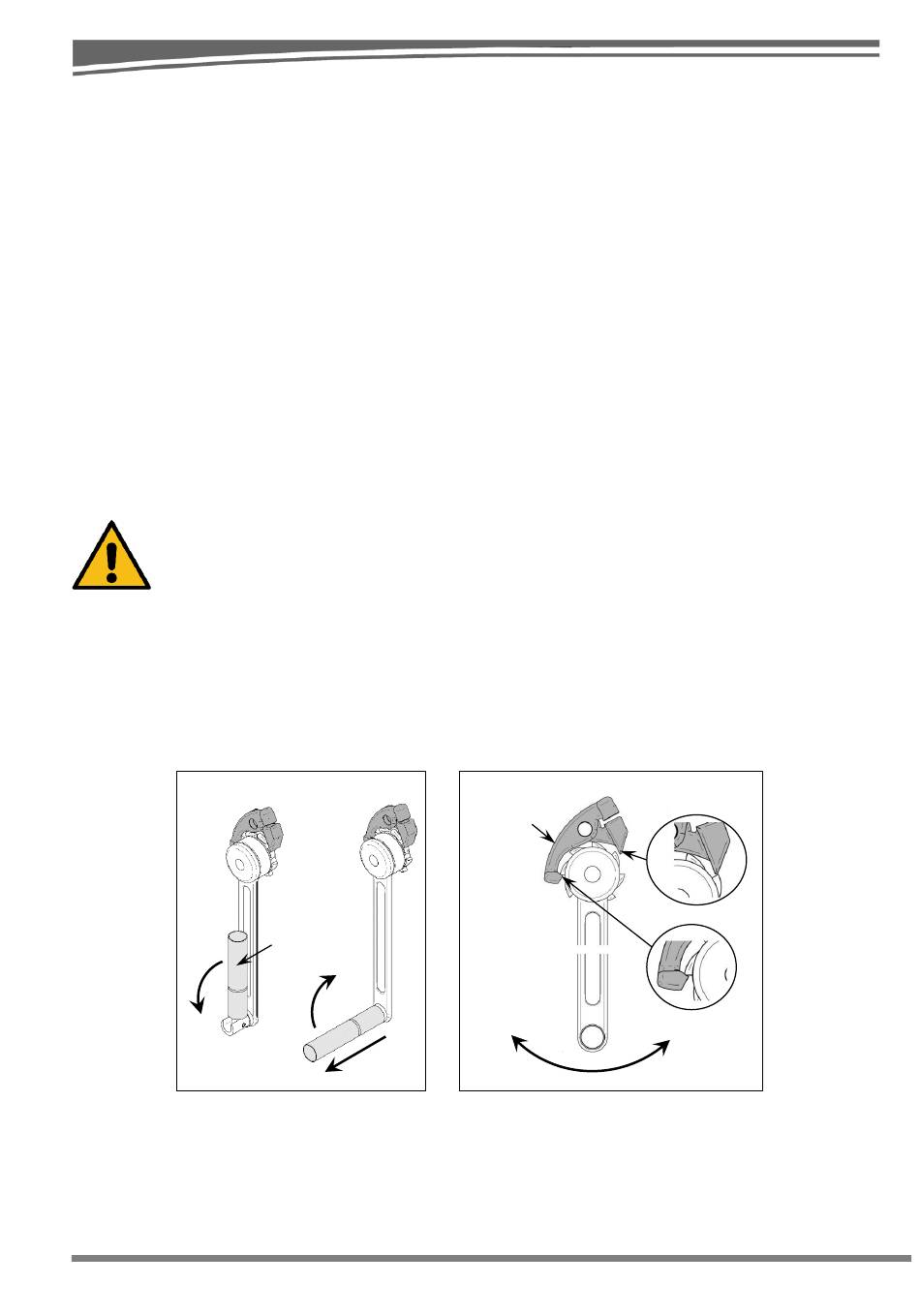

Firstly, flip down the handle-grip (See Fig. 3) and then turn the winch's handle clockwise to pull the
table free from the pins.
Remove the pins, and place the table in the desired working position. Lift the table slightly over the
holes, to allow the pins (I) to be inserted in the column of the press.
Now insert the pins correctly in the holes just under the table. (See Fig. 7)
Next, turn the handle, which has a built-in sliding clutch, counter clockwise, to lower the table onto both
pins. Please ensure that the winch/wire is always slack before using the press. You can now fold back
the handle-grip by firstly pulling it out and then placing it against the arm.
(EN)
EP100D G7 XXX (EN)_Midlertidig_SN.docx
Fig. 3
Handle
Knowhow is the difference
Fig. 4
Lock
UP
15/31
DOWN
