Compac CSC Instruction Manual

Instruction Manual

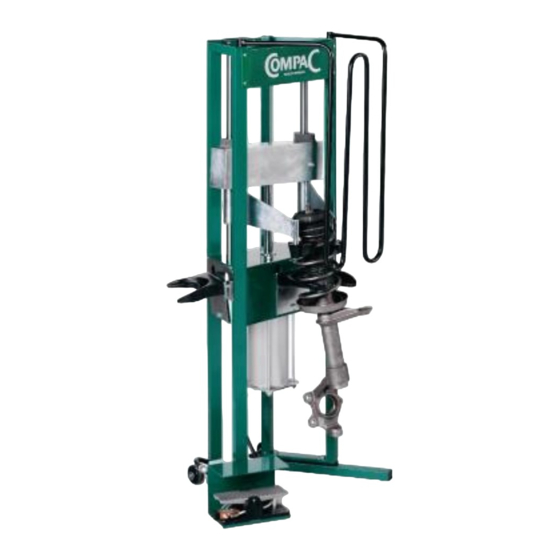

Compac spring press, model CSC / CSC+. Air operated
Important: Read this before use!
Please study, understand, and follow all instructions in this instruction manual before operating the
press! Make sure that every employee that use the machine has studied, understood, and followed
all instructions! Failure to follow this warning may result in personal injury and/or property damage.
Safety:
Always place safety guard as per the picture to the right before operating the press. Never operate
the press without the safety guard as this may lead to serious accidents or even death.
Fig. 1
Fig. 2
NO! YES!
Always wear safety glasses, safety shoes and safety gloves while operating the press.
Do not place hands between frame and moving parts as this may result in personal injury
and/or property damage.
BOTH
WARNING: Always use swivel jaws simultaneously and ensure that the safety lips on both
jaws grab firmly around the coils before compressing the spring. Always use a suitable size spring
holder. Ensure the spring holder supports the spring correctly.
Use the press for pressing springs on McPherson struts only!
Always ensure that the spring holders are attached with all three bolts in the allocated holes in the
front of the frame. WARNING: Incorrect use of the press may result in items being shot out at high
speed and may result in personal injury and/or property damage.
