Product Setup; Disconnect Battery - Meta System META EVOCAN Installation Instructions Manual

WITH LIN BUS CONNECTION: (see dedicated chapter on page 13) This selection have to be used in vehicles with the PSA
platform where is avaliable the dedicated LIN digital network for the alarm systems. This kind of system requires only the
combination of one the available sirens. NOTE: This alarm pairing with vehicle requires programming the vehicle's BODY
control unit (see dedicated technical sheet).).
STAND ALONE ID-TAG: (see dedicated chapter on page 17) This selection is recommended for installation in the vehicles
where, for technical reasons or restrictive regulations of the car manufacturer, is not possible to connect to the vehicle
digital networks. This type of system requires only the power supply connections and, if possible, to the turning indicators.
The vehicle protection will be ensured by the volumetric, tilt sensor, protection against starting attempts and eventually
auxiliary protections by the otional modules. For this kind of system it is mandatory to combine the META EVOCAN with
at least one ID-Tag B9.5 remote control and one of the available sirens.
To defi ne the most suitable operation, select the correct type of activation/deactivation
commands dedicated to the specifi c vehicle and to customize the alarm control unit
we recommend to consulting the vehicle technical data sheets available on the
website www.metasystemcorporation.com where you can fi nd all the indications
to perform a quickly and correct installation.
To do an easier programming according to the installation selected we invite you
to carefully read the warnings described in the chapter dedicated for any kind of
installation selected.
To customize the central unit operating modes, uses the PRG007 PROGRAMMER
where all the functions will be selectable.
The programmer software update and the information about the programmable
functions are available ON LINE on the website www.metasystemcorporation.com
in the CAR-ALARM Technical Area.
The CANBUS protocols for updating the META EVOCAN central unit are available in the PRG007 PROGRAMMER software
application and to have the updated ones it is necessary to download the latest available PRG007 PROGRAMMER
software update from the technical area of the MetaSystem web site.

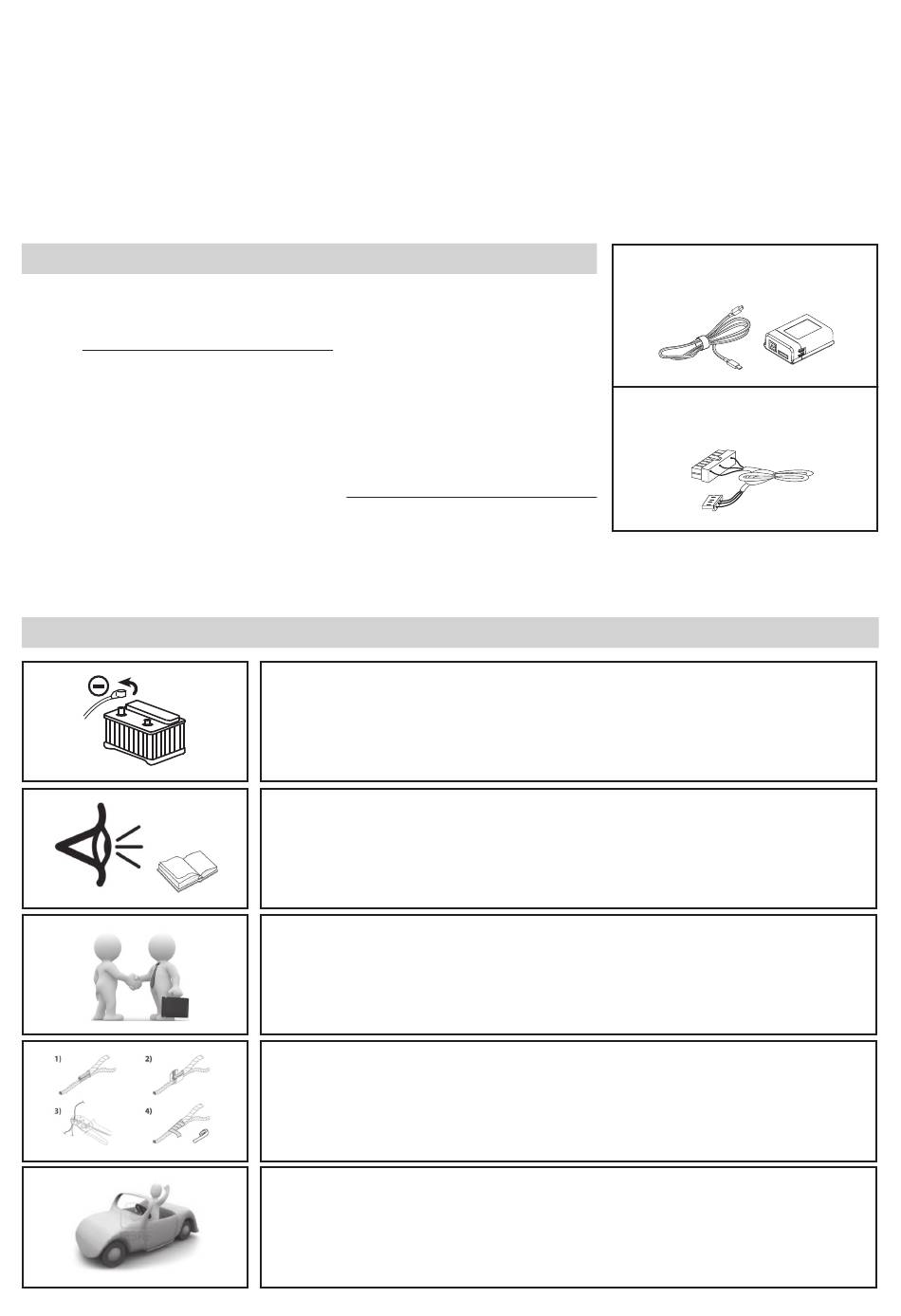

PRODUCT SET-UP
WARNINGS FOR CORRECT INSTALLATION

DISCONNECT BATTERY!

Before any operation in the vehicle, be sure that the body system is disconnected
from the service battery. This will avoid damages to the original vehicle system and
error memorisations.
Depending of the vehicle type and its technical specifi cations, take an agreement
with the customer what kind of application, explaining the activable functions.
Before start the installation, check if you have all the technical information to
performing the selected system, by consulting the installation manual, the vehicle
application technical sheets available on the Metasystem website.
Carry out the electrical connections in an appropriate manner, avoiding
connections like the fast splices systems and if possible avoid to cut the original
cables. Insulate the connections taking care to use suitable materials and tools for
each activity. Fixs by fasteners the alarm cables to the original vehicle harness to
prevent movements, noise or damage while driving.
Before handing over the vehicle, carry out a check to ensure that all on-board
devices are functioning properly, check if the alarm device works fi ne and make
sure that the vehicle has not stored any anomalies due to installation activities. In
this case it is necessary to carry out a diagnosis and reset all the errors in the vehicle
memory.
3
PRG007 PROGRAMMER
Meta System code: ABS15090
WIRING FOR META EVOCAN
Meta System code: 2010343800
