Meta System META EVOCAN Installation Instructions Manual page 26

The META EVO CAN control unit automatically recognises the siren model (M06 or M03) and adapts to it.
Automatic recognition is achieved by the acoustic emission of a BOOP at the instant the alarm system is
switched on with the instrument panel OFF and to ensure the siren responds make sure the installer connects
it before powering the alarm system.
Note: Once the siren has been recognized, it will be possible to pair the electronic Keys, see the ELECTRONIC
KEY SELF-LEARNING paragraph.
M03
BLACK
Fig. 26
M07
RED/DARK BLUE
BLACK
MOUNT
5A FUSE
Fig. 28
EVOCAN
CONTROL UNIT
CONNECTOR
Fig. 29
RISK OF EXPLOSION IF THE BATTERY IS REPLACED WITH THE INCORRECT TYPE.
ONLY USE THE CORRECT BATTERIES INDICATED IN THE INSTRUCTIONS.

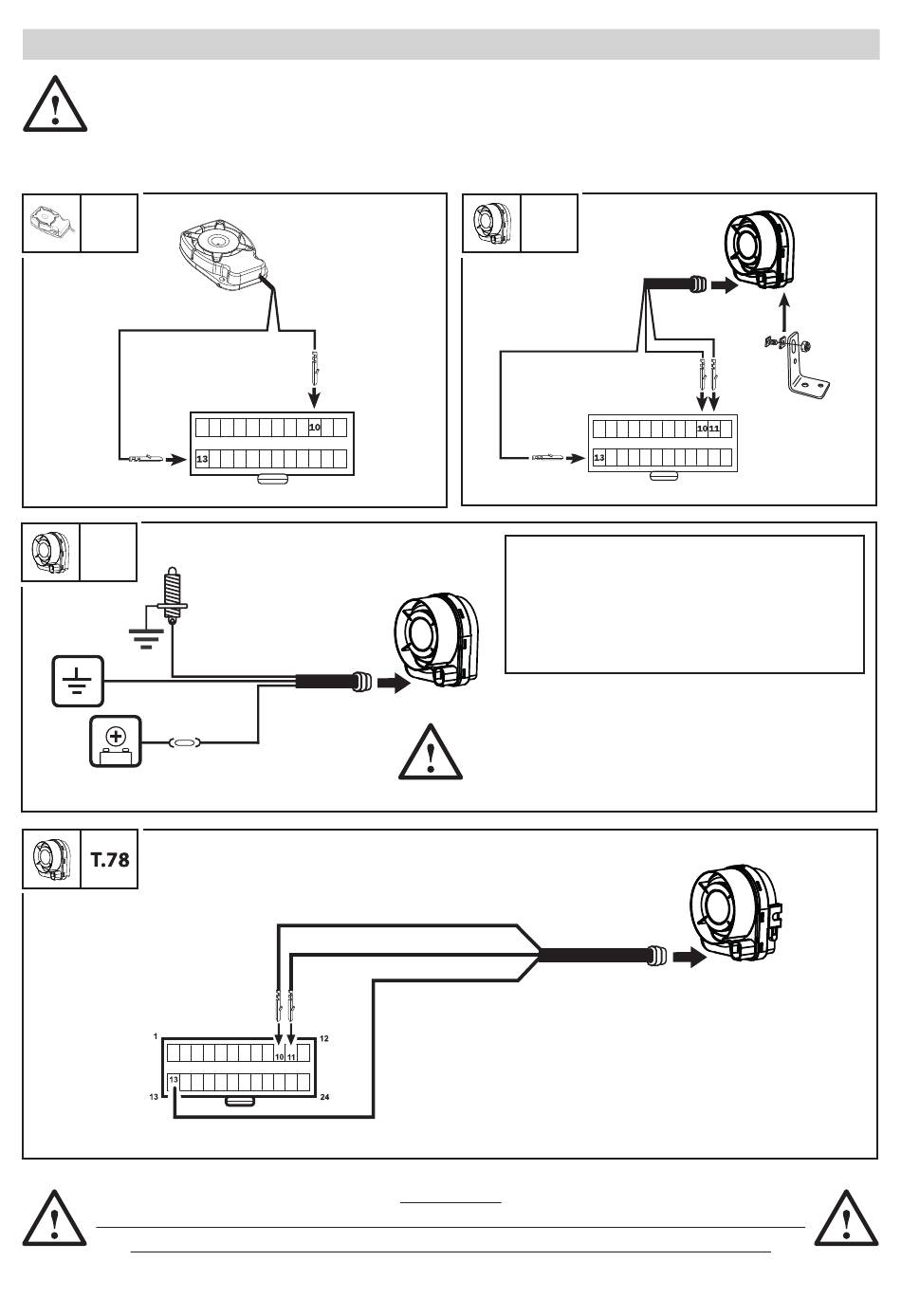

COMBINING THE SIREN
BLACK/RED
CONNECTOR
ON CABLE
FROM ALARM
CONTROL UNIT
RED
M06
RED/DARK BLUE
Fig. 27
M07 SIREN GENERAL SPECIFICATIONS
Siren unit consumption: average 1,2mA
Siren unit alarm consumption: < 250mA
BLE Frequency Bands: 2402.0 MHz – 2480.0 MHz
NOTE: The M07 Siren must be paired by the PRG007
Programmer in steps 48 and 49 by inserting and saving
the MAC ADDRESS in the META EVOCAN central unit.
Once powered the siren will automatically communicate
with the META EVOCAN central unit.
RED
BLACK
RED/DARK BLUE
CAUTION!
26
RED BLACK
Power supply: 12Vdc (10V-15V)
Working temperature: -40°C +85°C
T.78
CONNECTOR
ON CABLE
FROM ALARM
CONTROL UNIT
