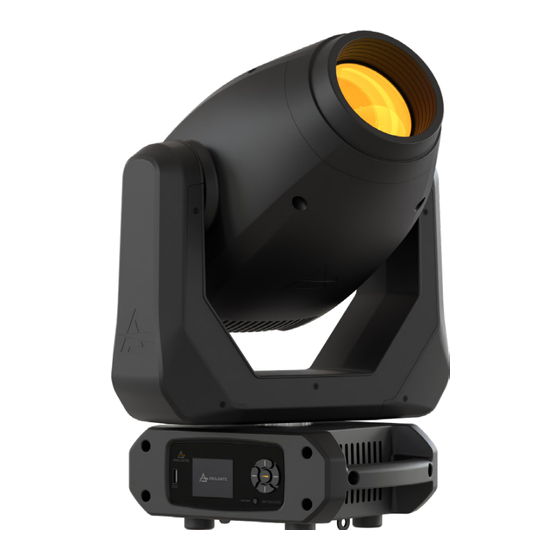

- Page 1 Jet Hybrid200 Ultra-Compact hybrid Beam-Spot 200W LED moving head USER MANUAL English version Rev.01 - 01/24...
- Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
- Page 3 UPDATE LINKED FIXTURES - ALL FIXTURES ..............39 22 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............40 REPLACING THE FUSE ....................40 VISUAL CHECK OF PRODUCT HOUSING ..............40 RESETTING THE MAINTENANCE TIME MESSAGE ............41 PROLIGHTS - Jet Hybrid200...
-
Page 4: Safety Information
• Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. - Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
- Page 6 The products to which this manual refers comply with: • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD). • 2014/30/EU - Electromagnetic Compatibility (EMC). • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS). Other approvals PROLIGHTS - Jet Hybrid200...
-
Page 7: Package Content
Check the updated accessories list, description and informations of the product at the following link: https://www.prolights.it/product/JETHYB200#accessories 2 - TECHNICAL DRAWING Ø100 [4.0] 205 [8.1] Ø422 [16.6] 279 [11.0] 205 [8.1] 360 [14.2] 356 [14.0] Fig. 01 Weight: 15,3 kg - 33,73 lbs PROLIGHTS - Jet Hybrid200... - Page 8 3 - PAN AND TILT LOCK PAN Mechanism lock and release LOCK UNLOCK TILT Mechanism lock and release LOCK UNLOCK Fig. 02 PROLIGHTS - Jet Hybrid200...
-
Page 9: Installation
Warning! When clamping the fixture to a truss or other structure at any angle, use clamps of half-cou- pler type. Do not use any type of clamp that does not completely encircle the structure when fastened. C6002 RSR1235B clamp Steel security cable OS24 PLUS 279 [11.0] 356 [14.0] Fig.03 PROLIGHTS - Jet Hybrid200... -
Page 10: Connection To The Mains Supply
• Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz). • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - Jet Hybrid200... -
Page 11: Product Overview
7. MAIN FUSE HOLDER: replace a burnt-out fuse by one of the same type only (T5A 250V). 8. POWER IN: for connection to the Mains 100-240V~/50-60Hz. 9. POWER OUT: power output for connection of multiple units in series. 10. SAFETY EYE to attach safety cable. Fig 04 PROLIGHTS - Jet Hybrid200... -
Page 12: Connection Of The Dmx Line
... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig. 06 - Example 20 DMX channels configuration PROLIGHTS - Jet Hybrid200... -
Page 13: Construction Of The Dmx Termination
2. Reach the addressing menu, then select the DMX ADDRESS settings. 3. Select the address from 1 to 512 using the navigation arrows/buttons and confirm by pressing ENTER. 4. Press Menu to exit and return to the Home screen. PROLIGHTS - Jet Hybrid200... -
Page 14: Control Panel
• Switch on the display using backup battery. Hold for 5s. • Switch off display by pressing button 4 for 5s while on being on Home screen. • USB port for Firmware Upgrade. PROLIGHTS - Jet Hybrid200... -
Page 15: Menu Structure
STANDARD HOME POSITION Standard: Pan is at 90° to the display when Pan@128dmx CUSTOM value like all Prolights fixtures. Custom: Pan is at 0° to the display when Pan@128dmx value. 0° CUSTOM P DEGREE To choose pan values in case of Custom position. - Page 16 INVERT ZOOM Invert zoom values. TRANSFER WITHOUT DMX To transfer the same menu settings of one CONFIGURATION ADDRESS fixtures to all the other in the daisy chain, including or not the dmx address. WITH DMX ADDRESS PROLIGHTS - Jet Hybrid200...
- Page 17 … GOBO 7 FOCUS GOBO 8 FOCUS FIX. GOBO 1 FOCUS FIX. GOBO 2 FOCUS FIX. GOBO 16 FOCUS FIX. GOBO 17 FOCUS GOBO 1 INDEX GOBO 2 INDEX … GOBO 7 INDEX GOBO 8 INDEX PROLIGHTS - Jet Hybrid200...
- Page 18 BASIC RELOAD YES/NO Default of all parameters excepted Cali- DEFAULT bration (both User and Factory) FACTORY RELOAD YES/NO Default of all parameters. User Calibra- tion parameters need to be overwritten by Factory calibration. Factory reload password: 050. PROLIGHTS - Jet Hybrid200...
- Page 19 ERROR MES- PAN, TILT... To see any error messages. SAGE FIXTURE XXXXXXXXXX View informations about fixture model. MODEL RDM UID (READ) View ID for the RDM control. SOFTWARE 1U01 V1.0.00... View informations about software version. VERSION PROLIGHTS - Jet Hybrid200...
- Page 20 Directly flip display without enter inside menu power on Reset without pan/tilt Fixture will be powered on without reset on pan/tilt DOWN then power on movements movements ENTER + UP then Bootloader Force firmware upgrade power on PROLIGHTS - Jet Hybrid200...
-
Page 21: Rdm Functions
RECORD_SENSORS 0x0202 DIMMER_INFO 0x0340 CURVE 0x0343 CURVE_DESCRIPTION 0x0344 Dimmer Settings OUTPUT_RESPONSE_TIME 0x0345 OUTPUT_RESPONSE_TIME_ DESCRIPTION 0x0346 MODULATION_FREQUENCY 0x0347 MODULATION_FREQUENCY_ DESCRIPTION 0x0348 DEVICE_HOURS 0x0400 LAMP_HOURS 0x0401 LAMP_STRIKES 0x0402 Power/Lamp LAMP_STATE 0x0403 Settings LAMP_MODE 0x0404 DEVICE_POWER_CYCLES 0x0405 BURN_IN 0x0440 PROLIGHTS - Jet Hybrid200... - Page 22 0x0642 RESET_DEVICE 0x1001 POWER_STATE 0x1010 PERFORM_SELFTEST 0x1020 SELF_TEST_DESCRIPTION 0x1021 CAPTURE_PRESET 0x1030 Control PRESET_PLAYBACK 0x1031 IDENTIFY_MODE 0x1040 PRESET_INFO 0x1041 PRESET_STATUS 0x1042 POWER_ON_SELF_TEST 0x1044 Manufacturer Specific PIDs Parameter GET SET Value Description 0: Standard HOME_POSITION 0x8160 1: Custom PROLIGHTS - Jet Hybrid200...
-
Page 23: Dmx Charts
Tilt = 128 Tilt = 255 Tilt movement range: 270° Pan movement range: 540 Pan = 0 Pan = 128 Pan = 255 Tilt = 80 Tilt = 80 Tilt = 80 Display Display Display Fig. 09 PROLIGHTS - Jet Hybrid200... - Page 24 DMX Chart Summary Channel STANDARD Pan fine Tilt Tilt fine Dimmer Dimmer Fine Shutter Color Wheel Rot Gobo Gobo Rot Gobo Rot Fine Fixed Gobo Prism Prism Rotation Frost Zoom Zoom Fine Focus Focus Fine Control PROLIGHTS - Jet Hybrid200...
- Page 25 CTO 3200K + High CRI 6000K High CRI 6000K High CRI 6000K + Lavander Lavander Lavander + Deep Blue Deep Blue Deep Blue + Open Forward Spin: from fast to slow Stop Reverse Spin: from slow to fast PROLIGHTS - Jet Hybrid200...
- Page 26 Shake: GOBO 8 from slow to fast Lineary from 0° to 360° Forward Spin: from fast to slow Gobo Rot Stop Reverse Spin: from slow to fast Gobo Rot Lineary from 0° to 360° (Indexed) Fine PROLIGHTS - Jet Hybrid200...
- Page 27 Lineary from 0° to 360° Forward Spin: from fast to slow Prism Rotation Stop Reverse Spin: from slow to fast Lineary from 0% to 100% Frost Zoom Lineary from Narrow to Wide Zoom Fine Lineary from Narrow to Wide PROLIGHTS - Jet Hybrid200...
- Page 28 DISPLAY 10S DISPLAY 20S DISPLAY 30S FLIP DISPLAY ON FLIP DISPLAY OFF FLIP DISPLAY AUTO KEY LOCK ON KEY LOCK OFF FAN MODE AUTO FAN MODE SILENT FAN MODE HIGH NO SIGNAL HOLD NO SIGNAL BLACKOUT Reserved PROLIGHTS - Jet Hybrid200...
- Page 29 INVERT ZOOM ON RESET ALL RESET PAN/TILT RESET PAN RESET TILT RESET COLOR RESET ROTATING GOBO Reserved RESET FIXED GOBO RESET ZOOM RESET FOCUS RESET PRISM RESET FROST RESET OTHER Reserved FACTORY DEFAULT OF CONTROL FUNCTIONS PROLIGHTS - Jet Hybrid200...
- Page 30 14 - FIXED GOBOS WHEEL Fig. 10 PROLIGHTS - Jet Hybrid200...
- Page 31 • Ø of image (ID)= 11 mm • Thinckness= up to 3 mm Up to 3 mm OD = Ø13.9 mm [0.5 in] [0.12 in] ATTENTION! Load with mirror surface toward the light source. Fig. 11 PROLIGHTS - Jet Hybrid200...
-
Page 32: Color Wheel
16 - COLOR WHEEL Fig. 12 PROLIGHTS - Jet Hybrid200... -
Page 33: Error Messages
Air in blower for cooling the lamp failed, the lamp has been [LEFT AIR IN FAN ERR.] switched OFF. [RIGHT AIR OUT FAN Air out blower for cooling the lamp failed, the lamp has ERR.] been switched OFF. PROLIGHTS - Jet Hybrid200... - Page 34 Failure detected during the reset of the PRISM ROTATION, ERROR] if the focus lens is not located in its default position. Failure detected during the reset of the effect FROST, if this [FROST ERROR] effect is not located in the default position. PROLIGHTS - Jet Hybrid200...
- Page 35 IDENTIFICATION OF ELECTRONIC BOARDS 5U PCB 2U PCB 1U PCB LED DRIVER 4U PCB 3U PCB Fig. 13 PROLIGHTS - Jet Hybrid200...
-
Page 36: Periodical Cleaning
AND TILT LOCK" paragraph (pag. 6). Loosen and remove the marked screws and opening the head covers (1) from both sides. Unclip the safety cable on both sides (2). Fig. 14 PROLIGHTS - Jet Hybrid200... -
Page 37: Gobos Replacement
Gently remove the gobo holder from the gobo wheel (3, 4). Remove the spring and the gobo (5, 6). NOTE: the mirrored part of the gobo must be placed in the direction of the LED Source Fig. 15 PROLIGHTS - Jet Hybrid200... - Page 38 • Disconnect the two connectors, power and serial bus plugs (marked B in drawing 2); • Raise the zoom and focus plates (drawing 2); • Pull out the plate with colors wheels and rotating gobo (drawing 1); Fig. 16 PROLIGHTS - Jet Hybrid200...
- Page 39 • Select the files to be updated. To select the desired files, move with the UP and DOWN buttons and select the file by pressing ENTER (Figure 2); • The selected files will be shown with a yellow square, select "NEXT" pressing RIGHT button, then press ENTER to confirm. (Figure 2) PROLIGHTS - Jet Hybrid200...
- Page 40 "START" pressing RIGHT button, then press ENTER to confirm. (Figure 1); • A screen with the progress of the update will appear (Figure 2), once update is completed the fixture will restart automatically and the update will be completed. PROLIGHTS - Jet Hybrid200...
- Page 41 UPDATE LINKED FIXTURES - ALL FIXTURES It is possible to update several Prolights fixtures from the Astra and Jet series at the same time. SELECT UPDATE DO NOT POWER OFF THIS FIXTURE Path: \FOLDER 2 LINKED FIXTURES ALL FIXTURES Progress:...
-
Page 42: Maintenance
WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel. - Page 43 • Check if the Fuse is intact and eventually replace it if fault necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in...
- Page 44 Note...
- Page 45 Note...
- Page 46 Note...
- Page 48 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
