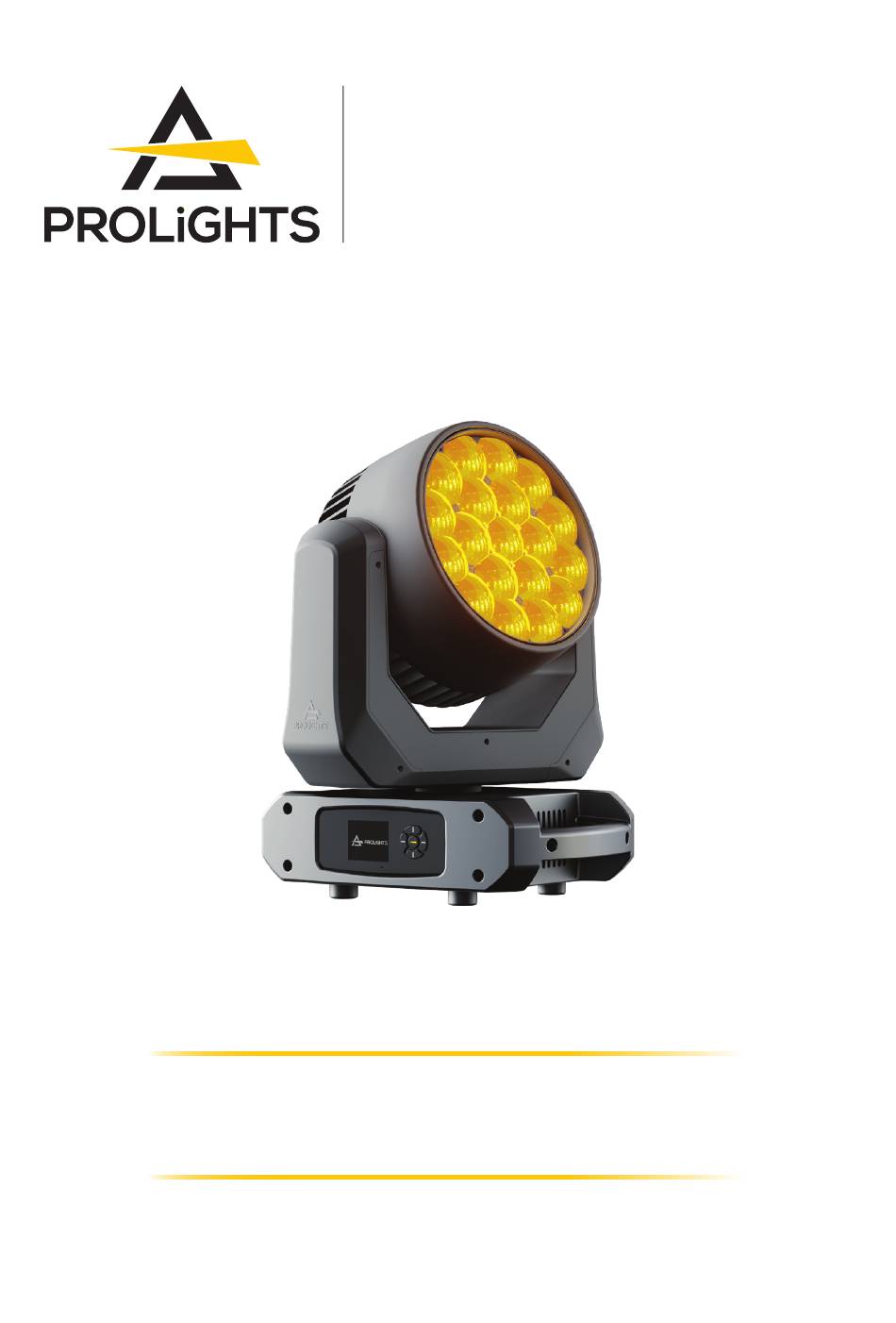

- Page 1 Jet Wash19 19x20W RGBW moving wash light with 4°- 54° zoom USER MANUAL English version REV.01-04/22...
- Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
-
Page 3: Table Of Contents
15 - ACCESSORIES INSTALLATION EGG CRATE (ASTRAW19PEC - OPTIONAL)..............24 16 - PERIODICAL CLEANING 17 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............26 REPLACING THE FUSE ....................26 VISUAL CHECK OF PRODUCT HOUSING ..............26 TROUBLESHOOTING ..................... 27 PROLIGHTS - Jet Wash19... -
Page 4: Safety Information
• Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. - Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
- Page 6 2. This device must accept any interference received, including interference that may cause undesired operation. Other approvals • The product meets the safety requirements of the certification procedures of the market in which it is placed and sold. PROLIGHTS - Jet Wash19...
-
Page 7: Packaging
• ASTRAW19PEC: egg Crate for ASTRAWASH19PIX / JETWASH19; • OS24: quick-lock omega bracket; • UPBOX2: firmware uploader kit, USB IN, 3-pin XLR DMX OUT. 2 - TECHNICAL DRAWING Weight: 14.7 kg - 32.40 lbs Fig. 01 PROLIGHTS - Jet Wash19... -
Page 8: Pan And Tilt Lock
3 - PAN AND TILT LOCK PAN Mechanism lock and release TILT Mechanism lock and release Fig. 02 PROLIGHTS - Jet Wash19... -
Page 9: Installation
Warning! When clamping the fixture to a truss or other structure at any angle, use clamps of half-cou- pler type. Do not use any type of clamp that does not completely encircle the structure when fastened. C6002 RSR0630A/B clamp Steel security cable OS24 108 mm [4.3 in] Fig.03 PROLIGHTS - Jet Wash19... -
Page 10: Connection To The Mains Supply
• Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz). • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - Jet Wash19... -
Page 11: Product Overview
7. MAIN FUSE HOLDER: replace a burnt-out fuse by one of the same type only (T3.15A 250V). 8. POWER IN: for connection to the Mains 100-240V~/50-60Hz. 9. POWER OUT: power output for connection of multiple units in series. 7 8 9 Fig. 04 PROLIGHTS - Jet Wash19... -
Page 12: Dmx Connection
... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig. 06 - Example 25 DMX channels configuration PROLIGHTS - Jet Wash19... -
Page 13: Construction Of The Dmx Termination
2. Reach the addressing menu, then select the DMX ADDRESS settings. 3. Select the address from 1 to 512 using the navigation arrows/buttons and confirm by pressing ENTER. 4. Press Menu to exit and return to the Home screen. PROLIGHTS - Jet Wash19... -
Page 14: Control Panel
• Browse downwards through the menu list and de- creases the numeric value displayed. • Commute from units, tens, hundred in the menu. • Used to access the menu tree or to return a previous menu window. PROLIGHTS - Jet Wash19... -
Page 15: Menu Structure
To choose pan values in case of Custom position. 315° CUSTOM T DEGREE To choose tilt values in case of Custom position. 100% FIXTURE AUTO FAN MODE Select Fan behaviour. SETTINGS SILENT HIGH TUNGSTEN Activate Tungsten Emulation. EMULATION PROLIGHTS - Jet Wash19... - Page 16 PASSWORD For the calibration of these functions. 050 password for user reset TILT MANUAL For manual control of the unit. CONTROL RELOAD BASIC RELOAD ON - OFF DEFAULT FACTORY RELOAD ON - OFF 050 password needed PROLIGHTS - Jet Wash19...
-
Page 17: Shortcut
Directly flip display without enter inside menu. after power on DOWN Reset without Fixture will be powered on without reset on pan/tilt then power on pan/tilt movements movements. ENTER + UP Bootloader Force firmware upgrade. then power on PROLIGHTS - Jet Wash19... -
Page 18: Rdm Functions
0x0140 DMX_FAIL_MODE 0x0141 DMX_STARTUP_MODE 0x0142 Dimmer DIMMER_INFO 0x0340 Settings MINIMUM_LEVEL 0x0341 MAXIMUM_LEVEL 0x0342 CURVE 0x0343 CURVE_DESCRIPTION 0x0344 OUTPUT_RESPONSE_TIME 0x0345 OUTPUT_RESPONSE_TIME_ DESCRIPTION 0x0346 MODULATION_FREQUENCY 0x0347 MODULATION_FREQUENCY_ DESCRIPTION 0x0348 Sensors SENSOR_DEFINITION 0x0200 SENSOR_VALUE 0x0201 RECORD_SENSORS 0x0202 BURN_IN 0x0440 PROLIGHTS - Jet Wash19... - Page 19 0x0601 PAN_TILT_SWAP 0x0602 REAL_TIME_CLOCK 0x0603 LOCK_PIN 0x0640 LOCK_STATE 0x0641 LOCK_STATE_DESCRIPTION 0x0642 Control IDENTIFY_DEVICE 0x1000 RESET_DEVICE 0x1001 POWER_STATE 0x1010 PERFORM_SELFTEST 0x1020 SELF_TEST_DESCRIPTION 0x1021 CAPTURE_PRESET 0x1030 PRESET_PLAYBACK 0x1031 IDENTIFY_MODE 0x1040 PRESET_INFO 0x1041 PRESET_STATUS 0x1042 PRESET_MERGEMODE 0x1043 POWER_ON_SELF_TEST 0x1044 PROLIGHTS - Jet Wash19...
-
Page 20: Dmx Charts
Pan Fine Tilt Tilt Fine Dimmer Dimmer Fine Shutter / Strobe Tint Crossfade from CCT to Color Red Fine Green Green Fine Blue Blue Fine White White Fine Color Macro CTO on colors Zoom Zoom Fine Control PROLIGHTS - Jet Wash19... - Page 21 038 ÷ 039 Primary Green 040 ÷ 041 Special Lavender 042 ÷ 043 Pale Lavender 044 ÷ 045 Deep Golden Amber 046 ÷ 047 Medium Blue 048 ÷ 049 Bright Pink 050 ÷ 051 Mauve 052 ÷ 053 PROLIGHTS - Jet Wash19...
- Page 22 250 ÷ 251 10000K 252 ÷ 253 Full On 254 ÷ 255 CTO ON COLORS Linear from 0% to 100% 000 ÷ 255 ZOOM Linear from wide to narrow 000 ÷ 255 ZOOM FINE 000 ÷ 255 PROLIGHTS - Jet Wash19...
- Page 23 RESET ALL 114 ÷ 115 RESET PAN 116 ÷ 117 RESET TILT 118 ÷ 119 RESET PAN/TILT 120 ÷ 121 RESET ZOOM 122 ÷ 123 Reserved 124 ÷ 253 FACTORY DEFAULT OF CONTROL FUNCTIONS 254 ÷ 255 PROLIGHTS - Jet Wash19...
-
Page 24: Error Messages
Yellow TEMPERATURE ERROR] lamp has been switched OFF by the product protection system. First of the blowers for cooling the lamp [HEAD FAN ERROR] Yellow failed, the lamp has been switched OFF. PROLIGHTS - Jet Wash19... - Page 25 IDENTIFICATION OF ELECTRONIC BOARDS 3U PCB 2U PCB 1U PCB Fig. 09 PROLIGHTS - Jet Wash19...
-
Page 26: Accessories Installation
Before removing rear cover, place the head in a horizontal position and engage both the PAN and TILT locks for added stability. See the "PAN AND TILT LOCK" paragrap. Loosen and remove the marked six screws (1). Then insert the egg crate (2) and fix the six screws (3). Fig. 10 PROLIGHTS - Jet Wash19... -
Page 27: Periodical Cleaning
16 - PERIODICAL CLEANING WARNING! Turn OFF power and allow approximately 20 minutes for the fixture to cool down. Use a soft cloth dampened with any detergent liquid for cleaning to remove the dirt from the optics Fig. 11 PROLIGHTS - Jet Wash19... -
Page 28: Maintenance
WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel. -
Page 29: Troubleshooting
• Check if the Fuse is intact and eventually replace it if fault. necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in... - Page 30 Note...
- Page 32 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
