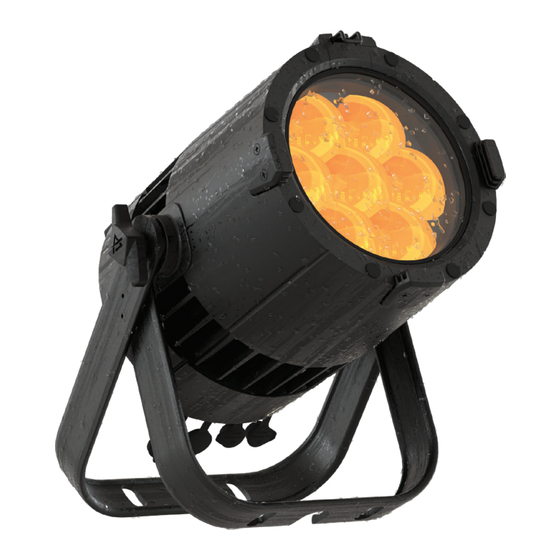

- Page 1 Jet PAR7ZIP 7x20W IP65 RGB+WW zoom LED PAR USER MANUAL English version REV.01-04/23 - PRELIMINARY...
- Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
-
Page 3: Table Of Contents
BARN DOOR (CODE AJP7ZIPBD - OPTIONAL) ............. 30 16 - PERIODICAL CLEANING 17 - TEST OF IP65 RATING 18 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............33 REPLACING THE FUSE ....................33 VISUAL CHECK OF PRODUCT HOUSING ..............33 TROUBLESHOOTING ..................... 34 PROLIGHTS - Jet PAR7ZIP... -
Page 4: Safety Information
• Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. Installation •... - Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
- Page 6 • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD). • 2014/30/EU - Electromagnetic Compatibility (EMC). • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS). • 2014/53/EU - Radio Equipment Directive (RED). Other approvals PROLIGHTS - Jet PAR7ZIP...
-
Page 7: Packaging
• User Manual. OPTIONAL ACCESSORIES • AJP7ZIPBD: barn door with 8 directional flaps to adjust the light beam, ASTRA / JET PAR7ZIP. • IPTESTBOX: portable vacuum and pressure tester for ProLights IP fixtures. • C6002A/B: slim aluminium clamp, 200 kg loading, 48-51 mm tubes, M10 bolt, aluminium / black. -
Page 8: Installation
Warning! When clamping the fixture to a truss or other structure at any angle, use clamps of half-cou- pler type. Do not use any type of clamp that does not completely encircle the structure when fastened. RSR0670A/B Steel security cable C6002 A/B clamp Ø13 mm 0,51 in 98,50 mm 3,88 in Fig.02 PROLIGHTS - Jet PAR7ZIP... -
Page 9: Connection To The Mains Supply
• Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz). • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - Jet PAR7ZIP... -
Page 10: Product Overview
11. DMX OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C. 12. POWER OUT: power output for connection of multiple units in series. 13. POWER IN: for connection to the Mains 100-240V~/50-60Hz. MODE/ DOWN ENTER Fig 03 PROLIGHTS - Jet PAR7ZIP... -
Page 11: Dmx Connection
... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig. 04 - Example 20 DMX channels configuration PROLIGHTS - Jet PAR7ZIP... -
Page 12: Construction Of The Dmx Termination
• The transmitter scans for all unlinked receivers for a period of about 5 seconds. • If the connection fails, check the position of the receiver. • The wireless icon on the receiver display indicates the received signal strength. PROLIGHTS - Jet PAR7ZIP... -
Page 13: In To Crmx
• The wireless icon on the receiver display indicates the received signal strength. CRMX TO DMX (RX) This function enable or disable the retransmission of the wireless DMX signal received throught the DMX port on the receiver side. PROLIGHTS - Jet PAR7ZIP... -
Page 14: Control Panel
• UP: browse upwards through the menu list and increases the numeric value displayed. • DOWN: browse downwards through the menu list and decreases the numeric value displayed. • ENTER: used to confirm the current menu or confirm the current function value or option within a menu. PROLIGHTS - Jet PAR7ZIP... -
Page 15: Menu Structure
5600K 6000K 8000K HOLD DMX FAULT To choose the behaviour of fixture in case of dmx signal lost. BLACKOUT STANDALONE EMERGENCY DIMMER LINEAR Select different curve behaviour of CURVE dimmer. S-CURVE SQUARE LAW INV. SQUARE LAW PROLIGHTS - Jet PAR7ZIP... - Page 16 To see the power cycles of the ma- CYCLE chine. PARTIAL (READ AND RESET) MAINTENAN- ELAPSED TIME (READ AND To choose and reset unit mainte- CE TIME RESET) nance warning hours. ALERT PERIOD 10 – 750 PROLIGHTS - Jet PAR7ZIP...
- Page 17 0 - 60s TIME (Step by 0.5s) FADE OUT 0 - 60s TIME (Step by 0.5s) COLOR Show list of MACRO STATIC mode WHITE Show list of PRESETS STATIC mode MANUAL Show list of COLORS STATIC mode PROLIGHTS - Jet PAR7ZIP...
-
Page 18: Shortcut
Directly flip display without enter inside menu. Reset without pan/tilt Fixture will be powered on without reset on pan/ DOWN then power on movements tilt movements. ENTER + UP then power on Bootloader Force firmware upgrade. PROLIGHTS - Jet PAR7ZIP... -
Page 19: Rdm Functions
0x0122 DMX_BLOCK_ADDRESS 0x0140 (Support required if device uses aDMX512 Slot) DMX_FAIL_MODE 0x0141 DMX_STARTUP_MODE 0x0142 Dimmer DIMMER_INFO 0x0340 Settings MINIMUM_LEVEL 0x0341 MAXIMUM_LEVEL 0x0342 CURVE 0x0343 CURVE_DESCRIPTION 0x0344 OUTPUT_RESPONSE_TIME 0x0345 OUTPUT_RESPONSE_TIME_ DESCRIPTION 0x0346 MODULATION_FREQUENCY 0x0347 MODULATION_FREQUENCY_ DESCRIPTION 0x0348 PROLIGHTS - Jet PAR7ZIP... - Page 20 Set DMX Mode for Pixel Engine PIX. ENGINE 0:Off MODE (0:Off 0x0201 1:Ring 1:Ring 2:Pixel) 2:Pixel 0: HOLD 1: BLACKOUT DMX FAULT 0x0202 2: STAND ALONE 3:EMERGENCY 0:MASTER DMX MASTER/ 0x0440 1:MASTER NO DMX SLAVE 2: SLAVE PROLIGHTS - Jet PAR7ZIP...
- Page 21 LED MODE 0x0641 1:HB 0: 3200K 1: 4000K WHITE POINT 0x0642 2: 5600K 3: 6000K 4: 8000K TUNGSTEN 0:OFF 0x1000 EMULATION 1:ON 0:No Error ERROR 1:Temperature Too High 0x1001 MESSAGES 2:LED sensor damaged(open or in short circuit) PROLIGHTS - Jet PAR7ZIP...
-
Page 22: Dmx Charts
Parameter Dimmer Dimmer Fine CCT Fine G/M Point Crossfade from CCT to Color Red Fine Green Green Fine Blue Blue Fine White White Fine Color Macro CTO on colors Shutter / Strobe Zoom Zoom Fine Control PROLIGHTS - Jet PAR7ZIP... - Page 23 6000 6100 29127 30037 6100 6200 30037 30947 6200 6300 30947 31857 6300 6400 31857 32768 6400 6500 32768 33678 6500 6600 33678 34588 6600 6700 34588 35498 6700 6800 35498 36408 6800 6900 36408 37319 PROLIGHTS - Jet PAR7ZIP...
- Page 24 Default @ 128 Neutral Linear tint correction from -0.25 to +0.25 0 to 25% Crossfade from CCT to Color 8 bit value 16 bit value Function Note From From Linear Default @ 255 / 65535 Crossfade 65535 PROLIGHTS - Jet PAR7ZIP...
- Page 25 Close Pulse Out from slow to fast Open Random from slow to fast Open Color Macro 8 bit value 16 bit value Function Note From From No Function Default @ 0 Green Blue Cyan Magenta Yellow PROLIGHTS - Jet PAR7ZIP...
- Page 26 Peacock Blue Magenta Dark Pink Middle Rose Light Salmon English Rose Light Rose Orange Deep Amber Straw Light Amber Spring Yellow Dark Yellow Green Just Blue Sky Blue Lavender Light Lavender Pink Carnation Medium Pink Light Pink PROLIGHTS - Jet PAR7ZIP...
- Page 27 4000K 4200K 4400K 4600K 4800K 5000K 5200K 5400K 5600K 6000K 6500K 7000K 8000K 9000K 10000K FULL ON CTO On Colors 8 bit value 16 bit value Function Note From From 0 - 100% Default @ 0 PROLIGHTS - Jet PAR7ZIP...
- Page 28 DIMMER SPEED SLOW LED FREQUENCY 600HZ LED FREQUENCY 1200HZ LED FREQUENCY 2000HZ LED FREQUENCY 4000HZ LED FREQUENCY 6000HZ LED FREQUENCY 10KHZ LED FREQUENCY 12KHZ LED FREQUENCY 15KHZ LED FREQUENCY 20KHZ LED FREQUENCY 25KHZ LED FREQUENCY 50KHZ PROLIGHTS - Jet PAR7ZIP...
- Page 29 Address / Mode) (No change on DMX Reload using Configuraiton Preset 3 Address / Mode) (No change on DMX Reload using Configuraiton Preset 4 Address / Mode) (No change on DMX Basic Reload Address / Mode) Reserved PROLIGHTS - Jet PAR7ZIP...
-
Page 30: Error Messages
This error message indicates that an overheating in the [LED DRIVER TEMPERA- head has occurred and the lamp has been switched OFF TURE ERROR] by the product protection system. [LED PCB ERROR] LED PCB not detected during reset PCB 2 PCB 1 Fig. 09 PROLIGHTS - Jet PAR7ZIP... -
Page 31: Accessories Installation
FILTER FRAME (CODE AJP7ZIPBD - OPTIONAL) DETAIL Lift the pin (1) upwards. Insert the filter frame (2) into the gel frame lock (DETAIL) and close down the snap. NOTE: To remove the accessory, reverse the procedure. Fig. 09 PROLIGHTS - Jet PAR7ZIP... -
Page 32: Barn Door (Code Ajp7Zipbd - Optional)
BARN DOOR (CODE AJP7ZIPBD - OPTIONAL) DETAIL Lift the pin (1) upwards. Insert the barn door (2) into the gel frame lock (DETAIL) and close down the snap. NOTE: To remove the accessory, reverse the procedure. Fig.10 PROLIGHTS - Jet PAR7ZIP... -
Page 33: Periodical Cleaning
16 - PERIODICAL CLEANING WARNING! Turn OFF power and allow approximately 20 minutes for the fixture to cool down. Use a soft cloth dampened with any detergent liquid for cleaning to remove the dirt from the optics. Fig. 11 PROLIGHTS - Jet PAR7ZIP... -
Page 34: Test Of Ip65 Rating
To check sealing after servicing use the IPTESTBOX. Insert the threaded end into the threaded valve Remove the gore valve from the connections panel. hole socket. Connect the air hose to the IPTESTBOX by inserting the quick-connect fitting into the coupler. Fig. 12 PROLIGHTS - Jet PAR7ZIP... -
Page 35: Maintenance
WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel. -
Page 36: Troubleshooting
• Check if the Fuse is intact and eventually replace it if fault necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in... - Page 37 Note...
- Page 38 Note...
- Page 40 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
