ProLights EclFresnel TW User Manual

ProLights EclFresnel TW User Manual

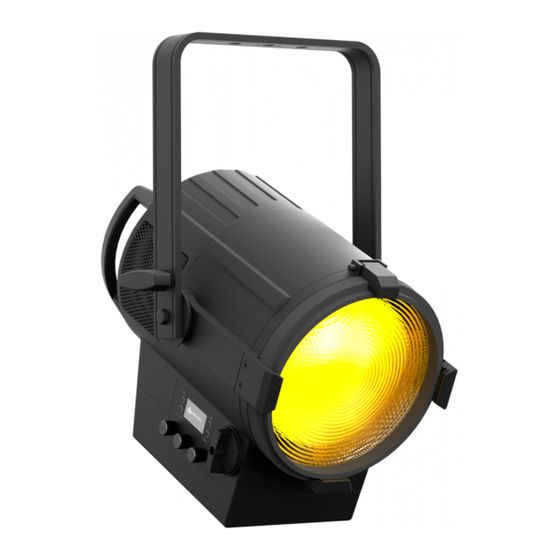

Led fresnel fc and tunable white with colour correction, to replace 1.000w lamp

Advertisement

REV.02-05/21

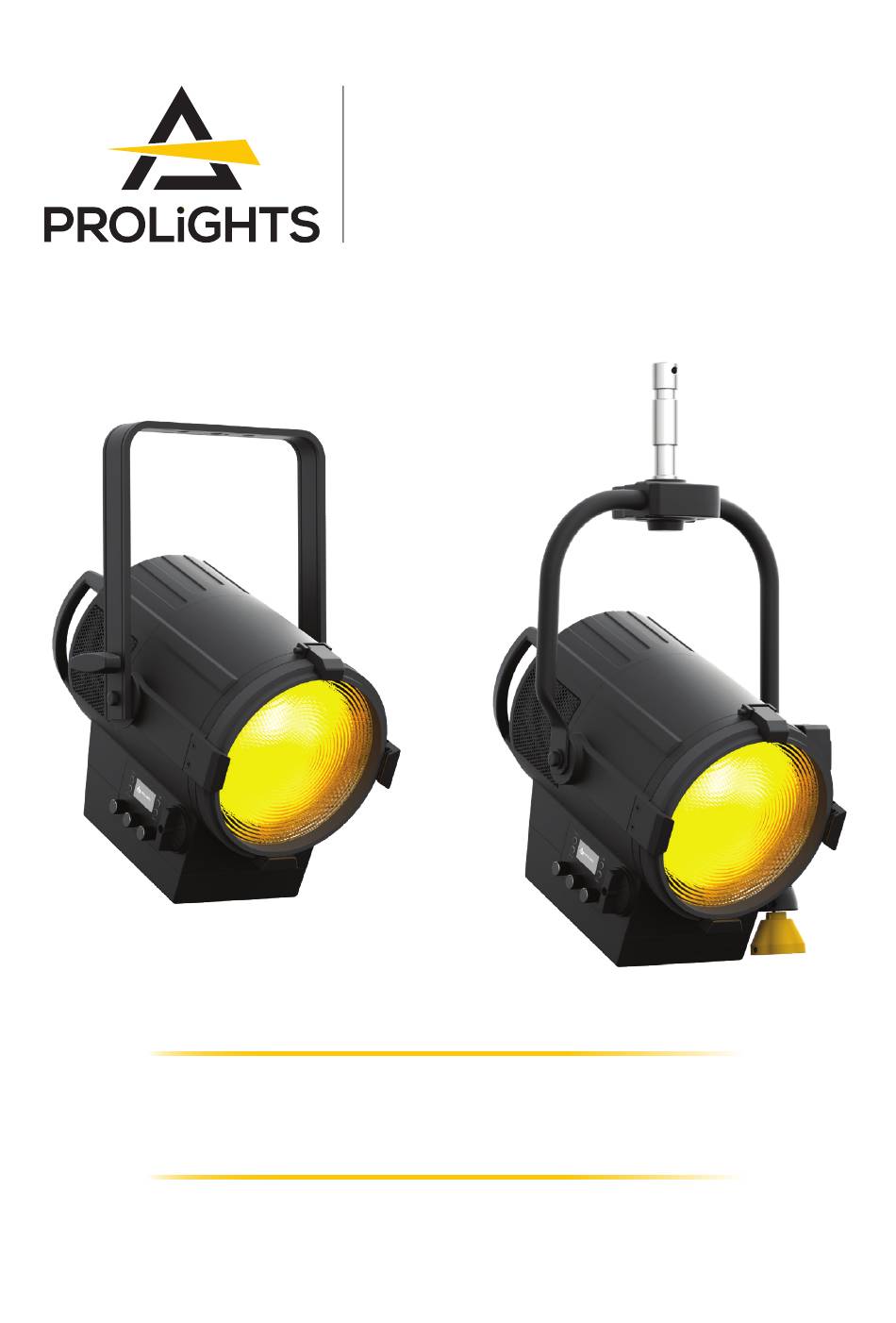

EclFresnel TW
EclFresnel PTW
LED Fresnel FC and Tunable White
with colour correction, to replace
1.000W lamp
USER MANUAL
English version

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EclFresnel TW and is the answer not in the manual?

Questions and answers

Summary of Contents for ProLights EclFresnel TW

  • Page 1 EclFresnel TW EclFresnel PTW LED Fresnel FC and Tunable White with colour correction, to replace 1.000W lamp USER MANUAL English version REV.02-05/21...
  • Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
  • Page 3: Table Of Contents

    BARN DOOR (CODE ECLFRSBD - OPTIONAL) ............. 23 NARROW ANGLE LENS (CODE ECLFRSNL - OPTIONAL) ..........24 13 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............25 REPLACING THE FUSE ....................25 VISUAL CHECK OF PRODUCT HOUSING ..............25 TROUBLESHOOTING ..................... 26 PROLIGHTS - EclFresnel TW / PTW...
  • Page 4: Safety Information

    • Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. Installation •...
  • Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
  • Page 6 The products to which this manual refers comply with: • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD). • 2014/30/EU - Electromagnetic Compatibility (EMC). • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS). PROLIGHTS - EclFresnel TW / PTW...
  • Page 7: Packaging

    • 1x ECLFRESNELTW / PTW; • 1x 1,5 meters power cable (SCHUKO plug - NEUTRIK POWERCON TRUE1 IP65); • 1x ECLFRSPG: spigot for PROLIGHTS Fresnel series; • 1x ECLFRSBD: barn door with 8 directional flaps to adjust the light beam;...
  • Page 8: Technical Drawing

    [13.5 in] [11.2 in] ECLFRESNELTW - Weight: 7.5 kg / 16.53 lbs 342 mm 343 mm 285 mm [13.4 in] [13.5 in] [11.2 in] ECLFRESNELPTW - Weight: 9.7 kg - 21.38 lbs Fig. 01 PROLIGHTS - EclFresnel TW / PTW...
  • Page 9 443 mm 283 mm [17.4 in] [11.2 in] ECLFRESNELTW - Weight: 7.5 kg / 16.53 lbs 443 mm 286 mm [17.4 in] [11.2 in] Fig. 02 ECLFRESNELPTW - Weight: 9.7 kg - 21.38 lbs PROLIGHTS - EclFresnel TW / PTW...
  • Page 10: Installation

    Do not use any type of clamp that does not completely encircle the structure when fastened. RSR0630A/B RSR0630A/B RSR0630A/B steel security cable steel security cable steel security cable C6002 C6040 C6040 clamp clamp clamp 246 mm 9.7 in Ø13 mm Ø0.5 in 80 mm 3.1 in Fig. 03 PROLIGHTS - EclFresnel TW / PTW...
  • Page 11: Connection To The Mains Supply

    • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - EclFresnel TW / PTW...
  • Page 12: Product Overview

    12. DMX OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C; 13. POWER OUT: power output for connection of multiple units in series. 11 12 13 Fig. 04 PROLIGHTS - EclFresnel TW / PTW...
  • Page 13: Dmx Connection

    ... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig. 06 - Example 19 DMX channels configuration PROLIGHTS - EclFresnel TW / PTW...
  • Page 14: Construction Of The Dmx Termination

    2. Reach the addressing menu, then select the DMX ADDRESS settings. 3. Select the address from 1 to 512 using the navigation arrows/buttons and confirm by pressing ENTER. 4. Press Menu to exit and return to the Home screen. PROLIGHTS - EclFresnel TW / PTW...
  • Page 15: Control Panel

    • DOWN: browse downwards through the menu list and decreases the numeric value displayed; • ENTER: used to confirm the current menu or confirm the current function value or option within a menu. • ROTARY KNOB 1, 2, 3: used to control stand alone modes. PROLIGHTS - EclFresnel TW / PTW...
  • Page 16: Menu Structure

    : UP, DOWN, UP, DOWN ADVANCED To choose Full On mode. FULL ON MODE STUDIO To choose the dimmer curve. DIMMER MODE DIMMER 1 DIMMER 2 DIMMER 3 PROLIGHTS - EclFresnel TW / PTW...
  • Page 17 7800K 4200K 8000K DIMMER 000 COLOR TEM- 4400K 8200K - 255 PERATURE 4600K 8400K HUE (-25 TO +25) 4800K 8600K 5000K 8800K 5200K 9000K 5400K 9200K 5600K 9400K 5800K 9600K 6000K 9800K 6200K 10000K PROLIGHTS - EclFresnel TW / PTW...
  • Page 18 G.RB O.B.L R.O.G.RB.L G.RB.B R.O.G.B.L G.RB.L R.O.RB.B.L RB.B G.B.L R.G.RB.B.L RB.L RB.B.L O.G.RB.B.L R.O.G.RB.B.L R.O.G.RB 3200K COLOR PICKER DIMMER 000 - 255 MANUAL COLOR Orange Green DIMMER 000 - 255 Royal Blue Blue Lime PROLIGHTS - EclFresnel TW / PTW...
  • Page 19: Rdm Functions

    Setup DMX_START_ADDRESS 0x00F0 CURVE 0x0340 CURVE_DESCRIPTION 0x0341 Dimmer Settings MODULATION_FREQUENCY 0x0342 MODULATION_FREQUENCY_ DESCRIPTION 0x0343 SENSOR_DEFINITION 0x0200 Sensors SENSOR_VALUE 0x0201 Display Set- DISPLAY_INVERT 0x0500 tings IDENTIFY_DEVICE 0x1000 Control FULL ON 0x8217 0:HB Mode 1:Studio Mode PROLIGHTS - EclFresnel TW / PTW...
  • Page 20: Dmx Charts

    ORANGE DIMMER FINE MODE GREEN ORANGE ROYAL COLOR COLOR GREEN ORANGE MACRO MACRO BLUE DIMMER DIMMER ROYAL SPEED SPEED BLUE GREEN BLUE MODE MODE ROYAL LIME BLUE BLUE DIMMER SPEED LIME BLUE MODE LIME PROLIGHTS - EclFresnel TW / PTW...
  • Page 21 ROYAL BLUE SPEED MODE ROYAL BLUE LIME FINE LIME FINE FINE STROBE STROBE BLUE DIMMER BLUE FINE SPEED MODE LIME COLOR LIME FINE MACRO DIMMER COLOR SPEED MODE MACRO CTO ON COLORS DIMMER SPEED MODE PROLIGHTS - EclFresnel TW / PTW...
  • Page 22 9600K - 9800K 238 ÷ 245 9800K - 10000K 245 ÷ 255 -25 to 0 000 ÷ 126 No Function 0 to +25 128 ÷ 255 CROSSFADE 0~100% 000 ÷ 255 0~100% 000 ÷ 255 PROLIGHTS - EclFresnel TW / PTW...
  • Page 23 052 ÷ 101 Mode1 (fast speed) 102 ÷ 152 Mode2 (middle speed) 153 ÷ 203 Mode3 (slow speed) 204 ÷ 255 STROBE No Function 000 ÷ 010 Strobe slow to fast 011 ÷ 255 PROLIGHTS - EclFresnel TW / PTW...
  • Page 24: Accessories Installation

    Press the pin (1) and the snap will automatically open upwards (2). Insert the gel filter frame (3) into the gel frame lock (DETAIL) and close down the snap. NOTE: To remove the accessory, reverse the procedure. Fig. 09 PROLIGHTS - EclFresnel TW / PTW...
  • Page 25: Barn Door (Code Eclfrsbd - Optional)

    Press the pin (1) and the snap will automatically open upwards (2). Insert the barn door (3) into the gel frame lock (DETAIL-1) throught the holder assembly of the barn door (DETAIL-2). Then close down the snap. NOTE: To remove the accessory, reverse the procedure. Fig.10 PROLIGHTS - EclFresnel TW / PTW...
  • Page 26: Narrow Angle Lens (Code Eclfrsnl - Optional)

    Press the pin (1) and the snap will automatically open upwards (2). Insert the narrow angle lens (3) into the gel frame lock (DETAIL) and close down the snap. NOTE: To remove the accessory, reverse the procedure. Fig. 11 PROLIGHTS - EclFresnel TW / PTW...
  • Page 27: Maintenance

    WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel.
  • Page 28: Troubleshooting

    • Check if the Fuse is intact and eventually replace it if fault. necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in...
  • Page 29 Note...
  • Page 30 Note...
  • Page 32 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
