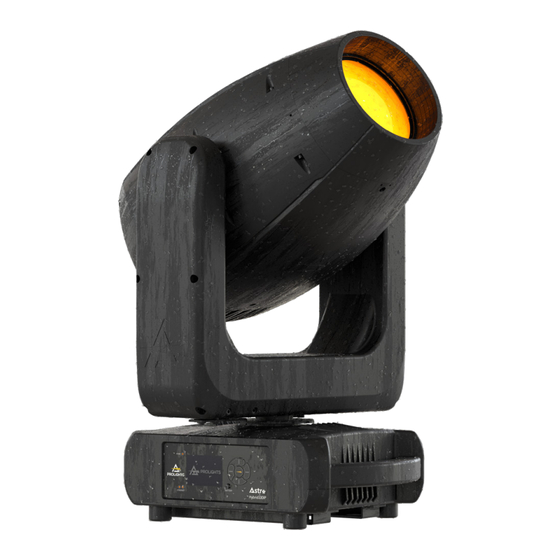

ProLights Astra Hybrid330IP User Manual

Ip65 ultra compact hybrid moving beam-spot, with a 330w led source
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

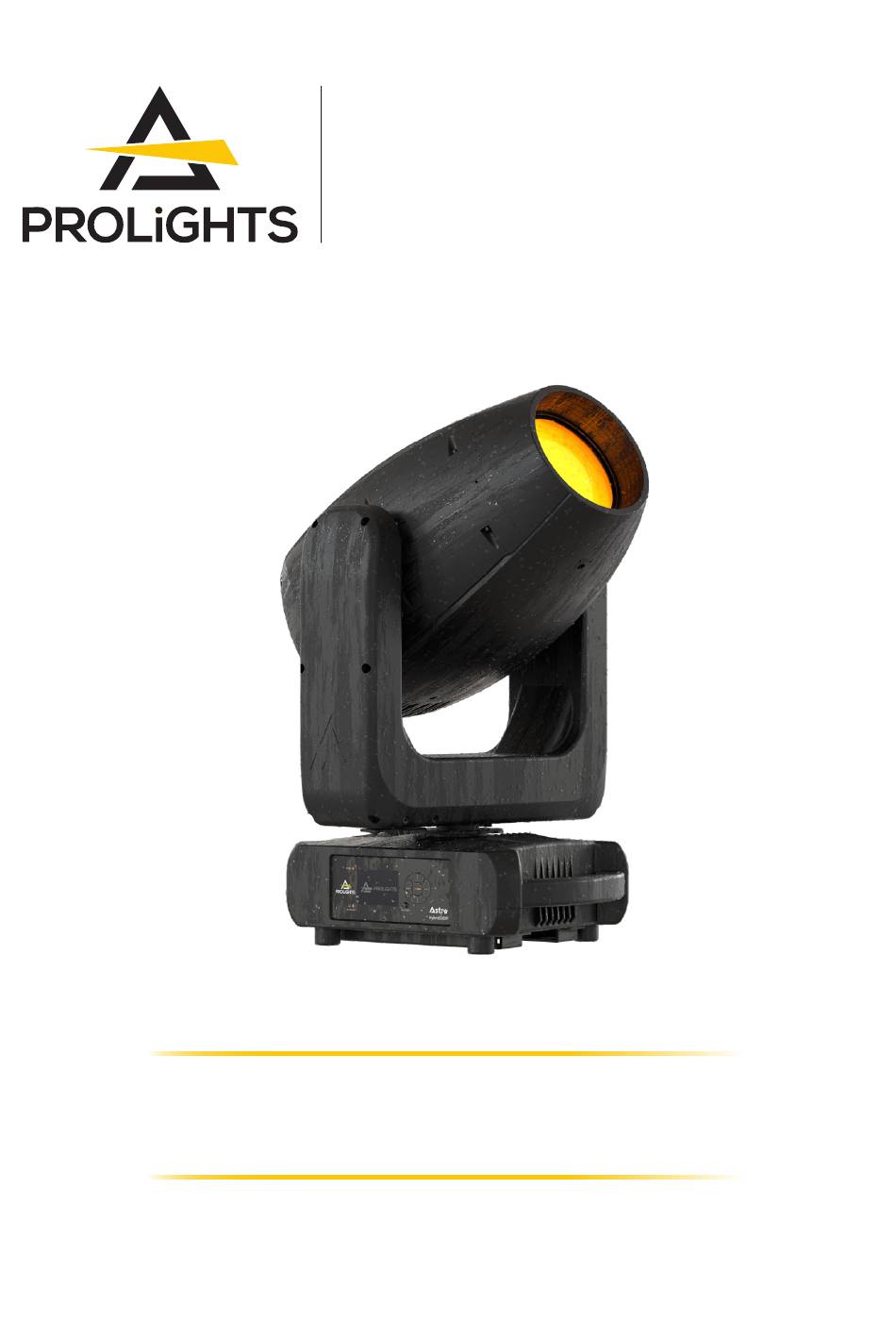

Astra Hybrid330IP
IP65 Ultra compact hybrid moving beam-spot,
with a 330W LED Source
USER MANUAL
English version
Rev.02 - 02/24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Astra Hybrid330IP and is the answer not in the manual?

Questions and answers

Related Manuals for ProLights Astra Hybrid330IP

Summary of Contents for ProLights Astra Hybrid330IP

  • Page 1 Astra Hybrid330IP IP65 Ultra compact hybrid moving beam-spot, with a 330W LED Source USER MANUAL English version Rev.02 - 02/24...
  • Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
  • Page 3 UPDATE LINKED FIXTURES - ALL FIXTURES ..............44 23 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............45 VISUAL CHECK OF PRODUCT HOUSING ..............45 RESETTING THE MAINTENANCE TIME MESSAGE ............46 24 - TEST OF IP65 RATING PROLIGHTS - Astra Hybrid330IP...

  • Page 4: Safety Information

    • Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center.
  • Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
  • Page 6 • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD). • 2014/30/EU - Electromagnetic Compatibility (EMC). • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS). • 2014/53/EU - Radio Equipment Directive (RED). Other approvals PROLIGHTS - Astra Hybrid330IP...

  • Page 7: Technical Drawing

    Check the updated accessories list, description and informations of the product at the following link: https://www.prolights.it/product/ASTRAHYB330IP#accessories 2 - TECHNICAL DRAWING 253 [10.0] 509 [20.1] 266 [10.5] 446 [17.6] 393 [15.5] Fig. 01 Weight: 25 kg - 55,11 lbs PROLIGHTS - Astra Hybrid330IP...
  • Page 8 3 - PAN AND TILT LOCK PAN Mechanism lock and release LOCK UNLOCK TILT Mechanism lock and release LOCK UNLOCK Fig. 02 PROLIGHTS - Astra Hybrid330IP...

  • Page 9: Installation

    Warning! When clamping the fixture to a truss or other structure at any angle, use clamps of half-cou- pler type. Do not use any type of clamp that does not completely encircle the structure when fastened. C6002B RSR0670B clamp Steel security cable OSIPPLUS 108 [4.2] Fig.03 PROLIGHTS - Astra Hybrid330IP...

  • Page 10: Connection To The Mains Supply

    • Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz). • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - Astra Hybrid330IP...

  • Page 11: Product Overview

    8. POWER OUT: power output for connection of multiple units in series. 9. ANTENNA of Wireless DMX Receiver internal module. 10. GORE VALVE 11. DMX IN/OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C. Fig 04 PROLIGHTS - Astra Hybrid330IP...

  • Page 12: Dmx Connection

    ... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig. 06 - Example 29 DMX channels configuration PROLIGHTS - Astra Hybrid330IP...
  • Page 13 (Protocol, Net, Subnet, Universe, Start Channel and IP Address, Ethernet to DMX No/Yes). • IP addresses recommended: 002.xxx.xxx.xxx or 010.xxx.xxx.xxx. • The submask net is fixed at 255.0.0.0. PROLIGHTS - Astra Hybrid330IP...
  • Page 14 NOTE: Artnet and sACN have higher priority on DMX if they are connected to transmitter. NOTE: Do not use IN TO CRMX and ETH TO DMX simultaneously, this will cause data conflict on DMX output signal. PROLIGHTS - Astra Hybrid330IP...
  • Page 15 • The wireless icon on the receiver display indicates the received signal strength. CRMX TO DMX (RX) This function enable or disable the retransmission of the wireless DMX signal received throught the DMX port on the receiver side. PROLIGHTS - Astra Hybrid330IP...

  • Page 16: Control Panel

    • Switch on the display using backup battery. Hold for 5s. • Switch off display by pressing button 4 for 5s while on being on Home screen. • LED indicator for Wireless dmx (color red and green). • LED indicator for Ethernet network.(color orange). PROLIGHTS - Astra Hybrid330IP...

  • Page 17: Menu Structure

    2. Universe name received from TX In TX CRMX Mode: 1.RGB Color code set from R,G,B combo list 2. Universe name by default takes first 16 characters of Model Name. (DEVICELABEL-Last 4 digit of RDM UID) PROLIGHTS - Astra Hybrid330IP...
  • Page 18 MEDIUM ASTRAWASH familiy fixtures. FAST STANDARD HOME POSITION Standard: Pan is at 90° to the display when Pan@128dmx value like all Prolights fixtures. CUSTOM Custom: Pan is at 0° to the display when Pan@128dmx value. PROLIGHTS - Astra Hybrid330IP...
  • Page 19 To choose the behaviour of fixture in case of dmx signal lost. BLACKOUT STATUS LED To turn the status LEDs on the front panel on or off. DIMMER CURVE LINEAR/ Select different curve behaviour of dim- mer. S-CURVE SQUARE LAW INVERSE SQUARE PROLIGHTS - Astra Hybrid330IP...
  • Page 20 To reset these functions. PAN & TILT TILT COLOR1 COLOR2 COLOR3 ROT GOBO GOBO ROT FIXED GOBO ZOOM FOCUS ANIMATION 8F PRISM 6F PRISM FROST OTHERS CALIBRATION PASSWORD To calibrate these functions. TILT DIMMER COLOR1 COLOR2 COLOR3 PROLIGHTS - Astra Hybrid330IP...
  • Page 21 GOBO 8 INDEX CYAN MAGENTA YELLOW MANUAL CONTROL For manual control of the unit. CONTROL PAN FINE TILT TILT FINE DIMMER DIMMER FINE SHUTTER CYAN MAGENTA YELLOW COLOR1 COLOR2 COLOR3 ROT GOBO GOBO ROT GOBO ROT FINE PROLIGHTS - Astra Hybrid330IP...
  • Page 22 To see any error messages. SAGE FIXTURE XXXXXXXXXX View informations about fixture model. MODEL RDM UID (READ) View ID for the RDM control. SOFTWARE 1U01 V1.0.00... View informations about software version. VERSION CRMX MOD- TimoFX: Vx.x.xx ULE VERSION PROLIGHTS - Astra Hybrid330IP...

  • Page 23: Rdm Functions

    0x0090 SOFTWARE_VERSION_LABEL 0x00C0 BOOT_SOFTWARE_VERSION_ID 0x00C1 BOOT_SOFTWARE_VERSION_LABEL 0x00C2 DMX_PERSONALITY 0x00E0 DMX_PERSONALITY_DESCRIPTION 0x00E1 DMX_START_ADDRESS 0x00F0 SLOT_INFO 0x0120 SLOT_DESCRIPTION 0x0121 DMX512 Setup DEFAULT_SLOT_VALUE 0x0122 DMX_BLOCK_ADDRESS 0x0140 DMX_FAIL_MODE 0x0141 DMX_STARTUP_MODE 0x0142 SENSOR_DEFINITION 0x0200 SENSOR_VALUE 0x0201 Sensors RECORD_SENSORS 0x0202 BURN_IN 0x0440 PROLIGHTS - Astra Hybrid330IP...
  • Page 24 0x1001 POWER_STATE 0x1010 PERFORM_SELFTEST 0x1020 SELF_TEST_DESCRIPTION 0x1021 CAPTURE_PRESET 0x1030 Control PRESET_PLAYBACK 0x1031 IDENTIFY_MODE 0x1040 PRESET_INFO 0x1041 PRESET_STATUS 0x1042 PRESET_MERGEMODE 0x1043 POWER_ON_SELF_TEST 0x1044 Manufacturer Specific PIDs Parameter GET SET Value Description 0: Standard HOME_POSITION 0x8160 1: Custom PROLIGHTS - Astra Hybrid330IP...

  • Page 25: Dmx Charts

    Tilt = 128 Tilt = 255 Tilt movement range: 270° Pan movement range: 540 Pan = 0 Pan = 128 Pan = 255 Tilt = 80 Tilt = 80 Tilt = 80 Display Display Display Fig. 09 PROLIGHTS - Astra Hybrid330IP...
  • Page 26 Color Wheel 2 Color Wheel 3 Rot Gobo Gobo Rot Gobo Rot Fine Fixed Gobo Prism 1 Prism 1 Rotation Prism 2 Prism 2 Rotation Frost Zoom Zoom Fine Focus Focus Fine Animation Insertion Animation Rotation Control PROLIGHTS - Astra Hybrid330IP...
  • Page 27 HIGH CRI >90 + CTO 3200K CTO 3200K CTO 3200K + CTO 2400K CTO 2400K Color Wheel 1 CTO 2400K + CYAN CYAN Forward Spin From fast to slow Stop Stop Reverse Spin From slow to fast PROLIGHTS - Astra Hybrid330IP...
  • Page 28 Open + LIGHT GREEN LIGHT GREEN LIGHT GREEN + PINK PINK PINK + LIGHT ORANGE LIGHT ORANGE Color Wheel 3 LIGHT ORANGE + YELLOW YELLOW Forward Spin From fast to slow Stop Stop Reverse Spin From slow to fast PROLIGHTS - Astra Hybrid330IP...
  • Page 29 GOBO 8 from slow to fast Indexed Lineary from 0° to 360° Forward Spin From fast to slow Gobo Rot Stop Stop Reverse Spin From slow to fast Gobo Rot Lineary from 0° to 360° (Indexed) Fine PROLIGHTS - Astra Hybrid330IP...
  • Page 30 GOBO 11 from slow to fast Open Prism 1 Prism insert Indexed Lineary from 0° to 360° Forward Spin From fast to slow Prism 1 Stop Rotation Stop Reverse Spin From slow to fast Open Prism 2 Prism insert PROLIGHTS - Astra Hybrid330IP...
  • Page 31 COLOR WHEEL 3 BLACKOUT OFF (index) ROTATING GOBO WHEEL BLACKOUT ON (index) ROTATING GOBO WHEEL BLACKOUT OFF (index) FIXED GOBO WHEEL BLACKOUT ON (index) FIXED GOBO WHEEL BLACKOUT OFF (index) COLOR WHEEL 1 CONTINUOUS MOVEMENT (index) PROLIGHTS - Astra Hybrid330IP...
  • Page 32 DIMMER SPEED AUTO DIMMER SPEED FAST DIMMER SPEED MEDIUM DIMMER SPEED SLOW LED FREQUENCY 600HZ LED FREQUENCY 1200HZ LED FREQUENCY 2000HZ LED FREQUENCY 4000HZ LED FREQUENCY 6000HZ LED FREQUENCY 25KHZ LED FREQUENCY 50KHZ INVERT ZOOM OFF PROLIGHTS - Astra Hybrid330IP...
  • Page 33 RESET COLOR 2 RESET COLOR 3 RESET ROTATING GOBO RESET GOBO ROTATION RESET FIXED GOBO RESET ZOOM RESET FOCUS RESET ANIMATION RESET 6F PRISM RESET 8F PRISM RESET FROST RESET OTHER Reserved FACTORY DEFAULT OF CONTROL FUNCTIONS PROLIGHTS - Astra Hybrid330IP...
  • Page 34 14 - FIXED GOBOS WHEEL Fig. 10 PROLIGHTS - Astra Hybrid330IP...
  • Page 35 • Ø of image (ID)= 16 mm • Thinckness= up to 3 mm Up to 3 mm OD = Ø20 mm [0.8 in] [0.12 in] ATTENTION! Load with mirror surface toward the light source. Fig. 11 PROLIGHTS - Astra Hybrid330IP...

  • Page 36: Color Wheel

    16 - COLOR WHEEL Fig. 12 PROLIGHTS - Astra Hybrid330IP...

  • Page 37: Animation Wheel

    17 - ANIMATION WHEEL Fig. 13 PROLIGHTS - Astra Hybrid330IP...

  • Page 38: Error Messages

    OFF. [LEFT AIR OUT FAN Air out blower for cooling the lamp failed, the lamp has ERROR] been switched OFF. Air blower for cooling the head failed, the lamp has been [HEAD FAN ERROR] switched OFF. PROLIGHTS - Astra Hybrid330IP...
  • Page 39 Failure detected during the reset of the effect FROST, if this [FROST ERROR] effect is not located in the default position. [FRONT LEN FAN Air blower for cooling the front len failed, the lamp has ERROR] been switched OFF. PROLIGHTS - Astra Hybrid330IP...
  • Page 40 IDENTIFICATION OF ELECTRONIC BOARDS 5U PCB LED DRIVER 1U PCB 6U PCB 3U PCB 4U PCB 2U PCB Fig. 14 PROLIGHTS - Astra Hybrid330IP...

  • Page 41: Periodical Cleaning

    AND TILT LOCK" paragrap (pag. 6). Loosen and remove the marked screws and opening the head covers (1) from both sides. Unclip the safety cable on both sides (2). Fig. 15 PROLIGHTS - Astra Hybrid330IP...

  • Page 42: Gobos Replacement

    Gently remove the gobo holder from the gobo wheel (3, 4). Remove the spring and the gobo (5, 6). Fig. 16 NOTE: the mirrored part of the gobo must be placed in the direction of the LED Source PROLIGHTS - Astra Hybrid330IP...
  • Page 43 • Disconnect the two connectors, power and serial bus plugs (marked A in drawing 3); • Unscrew the two screws marked in the front view (marked A in drawing 2); • Pull out the plate with colors wheels and rotating gobo (marked B in drawing 2). PROLIGHTS - Astra Hybrid330IP...
  • Page 44 • Select the files to be updated. To select the desired files, move with the UP and DOWN buttons and select the file by pressing ENTER (Figure 2); • The selected files will be shown with a yellow square, select "NEXT" pressing RIGHT button, then press ENTER to confirm. (Figure 2) PROLIGHTS - Astra Hybrid330IP...
  • Page 45 "START" pressing RIGHT button, then press ENTER to confirm. (Figure 1); • A screen with the progress of the update will appear (Figure 2), once update is completed the fixture will restart automatically and the update will be completed. PROLIGHTS - Astra Hybrid330IP...
  • Page 46 UPDATE LINKED FIXTURES - ALL FIXTURES It is possible to update several Prolights fixtures from the Astra and Jet series at the same time. SELECT UPDATE DO NOT POWER OFF THIS FIXTURE Path: \FOLDER 2 LINKED FIXTURES ALL FIXTURES Progress:...

  • Page 47: Maintenance

    IP grade of the fixture. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel.
  • Page 48 Timeout error after fixture • One or more hardware • Check product stored error messages for more reset. components requires information. Contact PROLIGHTS Service or an mechanical adjustments authorized service partner. Mechanical effect loses • Mechanical hardware • Check product stored error messages for more...
  • Page 49 24 - TEST OF IP65 RATING It is recommended to verify IP grade using IPTESTBOX every time the bodies are removed for maintenance. Remove the gore valve from the connections panel. Connect the air hose to the IPTESTBOX by inserting the quick-connect fitting into the coupler.
  • Page 50 Insert the threaded end into the threaded valve hole socket. Loosen the four screws (4) and remove the rear cover. Remove the gore valve on the rear connec- tion heatsilk module (5) and insert the hex socket cap head included in the IPTESTBOX box (6). For the operating procedure using the instrument, refer to the IPTESTBOX user manual.
