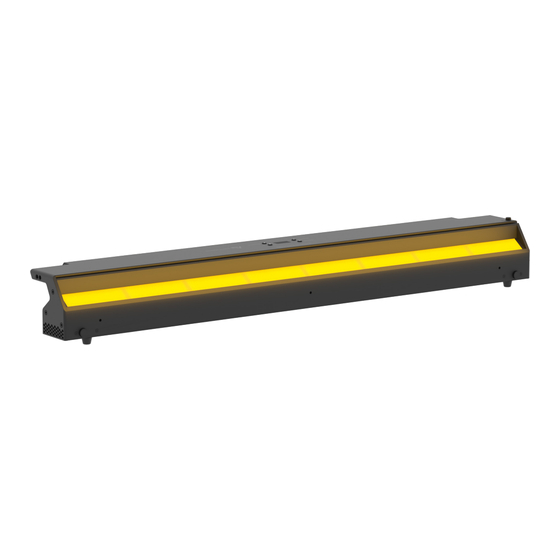

ProLights EclCyclorama 100 User Manual

330 w linear soft cyc and flood light with rgb + warm white colour mixing
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EclCyclorama 100
330 W linear soft CYC and flood light with
RGB + Warm White colour mixing
USER MANUAL
English version
REV.07-03/23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EclCyclorama 100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ProLights EclCyclorama 100

Summary of Contents for ProLights EclCyclorama 100

  • Page 1 EclCyclorama 100 330 W linear soft CYC and flood light with RGB + Warm White colour mixing USER MANUAL English version REV.07-03/23...
  • Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
  • Page 3 HANGING BAR (CODE ECLCYCOHB) 15 - MAINTENANCE 15 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT MAINTENANCE AND CLEANING THE PRODUCT REPLACING THE FUSE REPLACING THE FUSE VISUAL CHECK OF PRODUCT HOUSING VISUAL CHECK OF PRODUCT HOUSING TROUBLESHOOTING TROUBLESHOOTING PROLIGHTS - EclCyclorama 100...

  • Page 4: Safety Information

    • Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. Installation •...
  • Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
  • Page 6 • This device complies with Part 15 of the FCC Rules. Operation is subject to the fol- lowing two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Other approvals PROLIGHTS - EclCyclorama 100...

  • Page 7: Package Content

    • UPBOX1U: Firmware uploader kit, USB IN, 3-pin XLR DMX OUT, USB OUT. • RSR0603A/B: Steel security cable for hanging bodies, inox steel shackle, L=60 cm, silver/black. 2 - TECHNICAL DRAWING Weight: 9.6 kg - 21.16 lbs Dimensions are in mm / in - Fig.1 PROLIGHTS - EclCyclorama 100...

  • Page 8: Installation

    Do not use any type of clamp that does not completely encircle the structure when fastened. Quick-Lock Clamp omega bracket Fixing point for safety cable Safety cable Quick-Lock Clamp omega bracket 140 [5.5] 171 [6.7] 44 [ Fig.2 PROLIGHTS - EclCyclorama 100...

  • Page 9: Installation Configurations

    The Tilt adjustment has a range of ±8°. For distances from 1 to 1,5m the Tilt should adjusted at +8°, for distances more than 3m the Tilt should be adjusted at -8°. RELATION BETWEEN VERTICAL COVERAGE AND DISTANCE FROM THE CYC WALL LEGEND Top + Bottom Bottom Distance (m) Bottom Top + Bottom PROLIGHTS - EclCyclorama 100...

  • Page 10: Connection To The Mains Supply

    • Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz). • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - EclCyclorama 100...

  • Page 11: Product Overview

    9. MAIN FUSE HOLDER: replace a burnt-out fuse by one of the same type only (T6.3 AL 250 V). ). 10. POWER OUT: power output for connection of multiple units in series. 11. DMX OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C. Fig.3 PROLIGHTS - EclCyclorama 100...

  • Page 12: Connection Of The Dmx Line

    ... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig.5 - Example 5 DMX channels configuration PROLIGHTS - EclCyclorama 100...
  • Page 13 (Protocol, Net, Subnet, Universe, Start Channel and IP Address, Ethernet to DMX No/Yes). • About the IP addresses is recommended to set 002.xxx.xxx.xxx or 010.xxx.xxx.xxx. • The submask net is fixed at 255.0.0.0. PROLIGHTS - EclCyclorama 100...
  • Page 14 (DMX address=250) (DMX address=48) (DMX address=144) IP address=002.168.002.004 Universe=1 Art-Net/sACN DMX 512 DMX 512 Ethernet Switch Art-Net/sACN DMX 512 DMX 512 (DMX address=250) (DMX address=48) (DMX address=144) IP address=002.168.002.004 Universe=1 Fig.8 - Example configuration PROLIGHTS - EclCyclorama 100...
  • Page 15 This function enable or disable the transmission throught wireless of the DMX signal from the transmit- ter side to the receiver. NOTE: Artnet and sACN have higher priority on DMX if they are connected to transmitter. PROLIGHTS - EclCyclorama 100...
  • Page 16 • The wireless icon on the receiver display indicates the received signal strength. WDMX TO DMX (RX) This function enable or disable the retransmission of the wireless DMX signal received throught the DMX port on the receiver side. PROLIGHTS - EclCyclorama 100...

  • Page 17: Control Panel

    • UP: Browse upwards through the menu list and increases the numeric value displayed. • DOWN: Browse downwards through the menu list and decreases the numeric value displayed. • ENTER: Used to confirm the current menu or confirm the current function value or option within a menu. PROLIGHTS - EclCyclorama 100...

  • Page 18: Menu Structure

    Artnet Set- IP Address x.x.x.x Adjust ArtNet parameters tings 0-127 SubNet 0-15 SubNetMask x.x.x.x Universe 0-15 Address 1 - 512 sACN set- IP Address x.x.x.x Adjust sACN parameters tings SubNetMask x.x.x.x Universe 1-256 Address 1 - 512 PROLIGHTS - EclCyclorama 100...
  • Page 19 NOTE: If the projector is in Slave mode if the DMX signal is lost, the projector will remain on according to the last received DMX value. If the projector was in STATIC or AUTO mode, if the DMX signal is lost, the projector will return to the previously set STATIC or AUTO. PROLIGHTS - EclCyclorama 100...
  • Page 20 °C (DISP) 10 - SHORTCUT KEYS MODE DESCRIPTION UP + DOWN Directly flip display and knob order without enter inside Flip Display after power on menu. ENTER + UP Bootloader Force firmware upgrade. then power on PROLIGHTS - EclCyclorama 100...

  • Page 21: Dimmer Curves

    4. INVERSE SQUARE LAW - Light intensity control is coarser at low levels and finer at high levels. 5. HIGHRES@LOW - Very Fine control at low light intensity and coarser at medium and high levels. LINEAR S-CURVE DMX % DMX % SQUARE LAW INVERSE SQUARE LAW DMX % DMX % HIGHRES@LOW DMX % PROLIGHTS - EclCyclorama 100...

  • Page 22: Rdm Functions

    Effects Speed (001-100) 0x8210 Master/Slave (0:Master 1:Slave) 0x8211 Full_On_Mode (Full On 0:HB 1:Studio) 0x8217 Manual Color Red(000-255) 0x82C0 Manual Color Green(000-255) 0x82C1 Manual Color Blue(000-255) 0x82C2 Manual Color White(000-255) 0x82C3 Fix Color (1-15:R,G,B,W...) 0x82BE White Preset (1-9:2800K,3200K,3500K...) 0x82BF PROLIGHTS - EclCyclorama 100...

  • Page 23: Dmx Charts

    BLUE BLUE FINE BLUE FINE STROBE WHITE WHITE COLOR WHITE FINE WHITE FINE MACRO COLOR DIMMER COLOR SPEED MACRO MACRO CTO ON CTO ON COLORS COLORS DIMMER DIMMER SPEED SPEED SELECTION FX SPEED FX FADE CONTROL PROLIGHTS - EclCyclorama 100...
  • Page 24 000 ÷ 010 Strobe Slow to Fast 011 ÷ 255 COLOR MACRO No Function 000 ÷ 002 Amber Shift on 003 ÷ 005 Color Macro 006 ÷ 255 COLOR MACRO Please check "COLOR MACRO 21CH" table for values PROLIGHTS - EclCyclorama 100...
  • Page 25 DMX FAULT STANDALONE 068 ÷ 069 SPEKTRA CALIBRATION ON 070 ÷ 071 SPEKTRA CALIBRATION PURE COLORS 072 ÷ 073 SPEKTRA CALIBRATION OFF 074 ÷ 075 RESERVED 076 ÷ 253 RESET ALL CHANNELS CONTROLLED 254 ÷ 255 PROLIGHTS - EclCyclorama 100...
  • Page 26 Deep Amber 082 ÷ 083 8000K 248 ÷ 249 Straw 084 ÷ 085 9000K 250 ÷ 251 Light Amber 086 ÷ 087 10000K 252 ÷ 253 Spring Yellow 088 ÷ 089 Full On 254 ÷ 255 PROLIGHTS - EclCyclorama 100...
  • Page 27 GREEN WHITE BLUE BLUE RED FINE WHITE WHITE GREEN STROBE STROBE GREEN FINE COLOR TEMPERATURE BLUE AUTO PROGRAM BLUE FINE AUTO SPEED WHITE DIMMER SPEED WHITE FINE STROBE COLOR TEMPERATURE AUTO PROGRAM AUTO SPEED DIMMER SPEED PROLIGHTS - EclCyclorama 100...
  • Page 28 Preset dimmer speed from display menu 000 ÷ 051 052 ÷ 101 Dimmer speed mode off Dimmer speed mode1 (fast speed) 102 ÷ 152 Dimmer speed mode2 (middle speed) 153 ÷ 203 Dimmer speed mode3 (slow speed) 204 ÷ 255 PROLIGHTS - EclCyclorama 100...
  • Page 29 CROSSFADE FROM LAYER 1 TO COLOR MACRO RED FINE LAYER 2 STROBE GREEN CONTROL GREEN FINE X 2 FINE BLUE BLUE FINE Y 2 FINE WHITE COLOR MACRO WHITE FINE CTO ON COLORS RESERVED CONTROL COLOR MACRO STROBE CONTROL PROLIGHTS - EclCyclorama 100...
  • Page 30 000 ÷ 255 GREEN 0÷100% 000 ÷ 255 GREEN FINE 000 ÷ 255 BLUE 0÷100% 000 ÷ 255 BLUE FINE 000 ÷ 255 WHITE 0÷100% 000 ÷ 255 WHITE FINE 000 ÷ 255 RESERVED 000 ÷ 255 PROLIGHTS - EclCyclorama 100...
  • Page 31 Rose Purple 132 ÷ 133 Deep Purple 134 ÷ 135 Soft Green Reserved 136 ÷ 211 2800K 212 ÷ 213 3000K 214 ÷ 215 3200K 216 ÷ 217 3400K 218 ÷ 219 3600K 220 ÷ 221 PROLIGHTS - EclCyclorama 100...
  • Page 32 DMX FAULT STANDALONE 068 ÷ 069 SPEKTRA CALIBRATION ON 070 ÷ 071 SPEKTRA CALIBRATION PURE COLORS 072 ÷ 073 SPEKTRA CALIBRATION OFF 074 ÷ 075 RESERVED 076 ÷ 253 RESET ALL CHANNELS CONTROLLED 254 ÷ 255 PROLIGHTS - EclCyclorama 100...
  • Page 33 0.00 ÷ 0.85 Y 1 FINE 000 ÷ 255 CROSSFADE FROM LAYER 1 TO LAYER 2 000 ÷ 255 0÷100% 000 ÷ 255 0.00 ÷ 0.85 X 2 FINE 000 ÷ 255 000 ÷ 255 0.00 ÷ 0.85 PROLIGHTS - EclCyclorama 100...
  • Page 34 130 ÷ 131 Deep Purple 132 ÷ 133 Soft Green 134 ÷ 135 Reserved 136 ÷ 211 2800K 212 ÷ 213 3000K 214 ÷ 215 3200K 216 ÷ 217 3400K 218 ÷ 219 3600K 220 ÷ 221 PROLIGHTS - EclCyclorama 100...
  • Page 35 DMX FAULT STANDALONE 068 ÷ 069 SPEKTRA CALIBRATION ON 070 ÷ 071 SPEKTRA CALIBRATION PURE COLORS 072 ÷ 073 SPEKTRA CALIBRATION OFF 074 ÷ 075 RESERVED 076 ÷ 253 RESET ALL CHANNELS CONTROLLED 254 ÷ 255 PROLIGHTS - EclCyclorama 100...

  • Page 36: Accessories Installation

    Yoke replacement. 1. Loosen and remove the marked screws. 2. Mount the Pole Operated Yoke bracket and tighten the screws. NOTE: To remove the accessory, reverse the procedure. Fig.11 PROLIGHTS - EclCyclorama 100...
  • Page 37 1. Loosen and remove the marked screws. 2. Open the side cover. 3. Gently remove the filter located under the glass. 4. Insert the desired diffuser filter, always in the same position. 5. Mount the side cover and tighten the screws. Fig.12 PROLIGHTS - EclCyclorama 100...
  • Page 38 3. Adjust the angle of the leafs to focus the beam. NOTE: to remove the upper barndoor press the button provided on the top cover to release the lock provided in the slot on the hardware. Fig.13 PROLIGHTS - EclCyclorama 100...
  • Page 39 1. Mount the hanging bar fixing and toghtening the Quick-Lock on the hardware into the holes pro- vided on the low housing of the product. 2. Using the knobs to adjust the angle of the product. Fig.14 PROLIGHTS - EclCyclorama 100...

  • Page 40: Maintenance

    WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel.

  • Page 41: Troubleshooting

    • Check if the Fuse is intact and eventually replace it if fault. necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in...
  • Page 42 Note...
  • Page 44 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
