Opera�on Controls and Func�ons

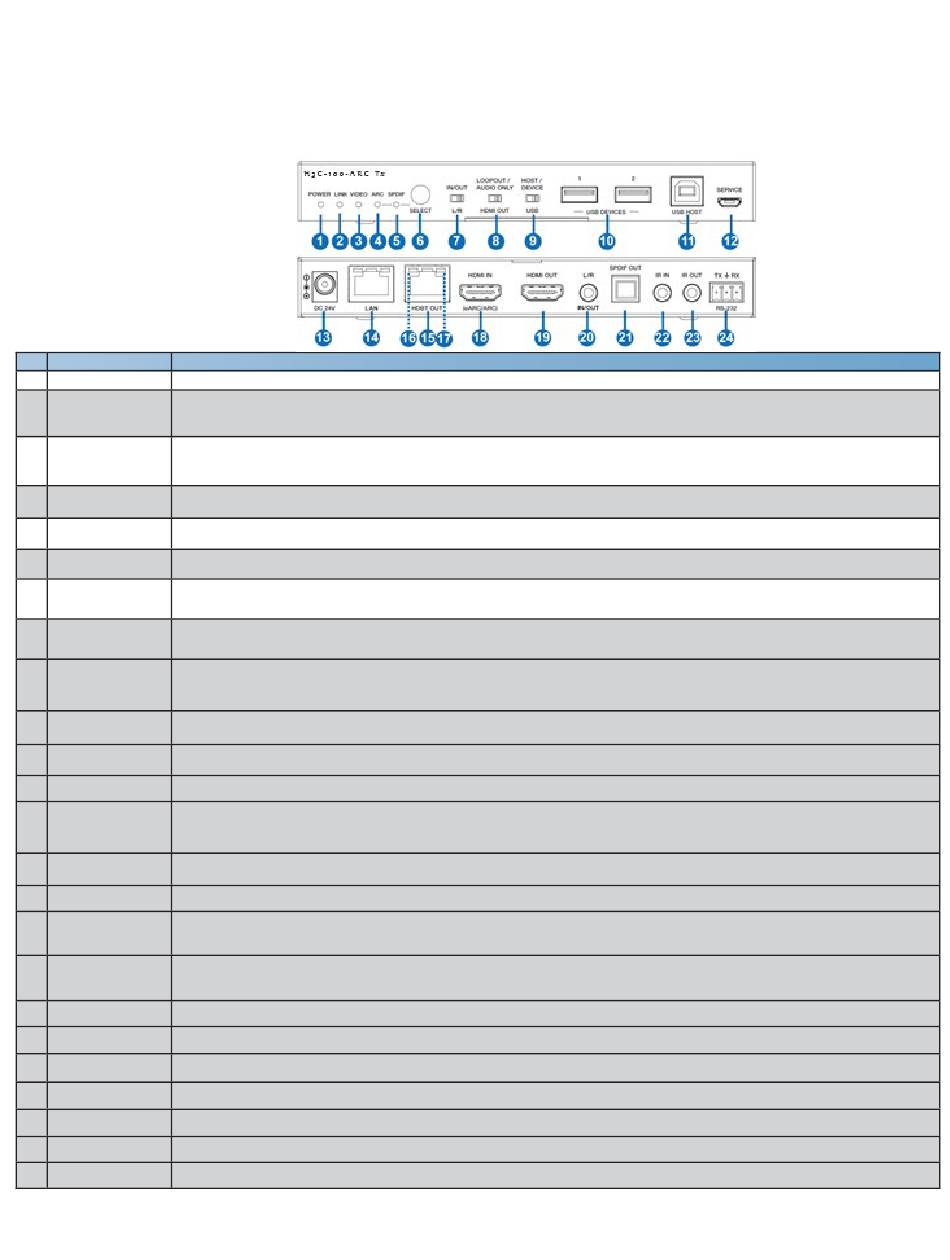

Transmiter Panel

No.
Name Function Description
Power LED Red LED indicates that the Transmitter is powered on.
1
▪ Light on: Transmitter and Receiver are in good connection status.
LINK LED ▪ Light flashing: Transmitter and Receiver are in Low Power Mode.
2
▪ Light off: Transmitter and Receiver are not connected.
▪ Light on: The video is encrypted.
▪ Light flashing: The video is not encrypted.
3 VIDEO LED
▪ Light off: No HDMI input.
▪ Light on: The device is switched to the ARC mode.
ARC LED
4
▪ Light off: The device is switched to the SPDIF mode.
▪ Light on: The device is switched to the SPDIF mode.
5 SPDIF LED
▪ Light off: The device is switched to the ARC mode.
SELECT
6 Used for switching the ARC mode and SPDIF mode.
button
Switch to left, the L/R IN/OUT port is the audio embedding port; Switch to right, the L/R IN/OUT port is the audio de-embedding port.
L/R IN/OUT
7
switch
Switch to left (LOOPOUT), the HDMI OUT port is the loopout port for the HDMI IN port;
LOOP OUT/ AUDIO
Switch to right (AUDIO ONLY), the HDMI OUT port outputs 720P black screen image, and the audio is from ARC or SPDIF.
8 ONLY Switch
Switch to left (HOST), the USB HOST mode is enabled; Switch to right (DEVICE), the USB DEVICE mode is enabled.
HOST/ DEVICE USB
9
switch
10
Two USB device ports, connected to U disk, mouse or keyboard.
USB DEVICES
11
USB extension host port, connected to PC.
USB HOST
12
Firmware update port.
SERVICE
DC 24V/1A power supply input port.
DC 24V
13
Note that the extender supports POC function, it means that either transmitter or receiver is powered on by 24V/1A power adapter, the other
one doesn't need power supply.
14
1G Network port. When it switches to Gigabit Ethernet, the green indicator lights on; When it switches to 100M Ethernet, the yellow indicator
LAN
lights on.
15
10G Network port, connected to the HDBT IN port of Receiver with a CAT 6A/7 cable. It is used for various signals pass-through.
HDBT OUT
▪ Illuminating: HDMI signal with HDCP.
Data Signal Indicator
▪ Flashing: HDMI signal without HDCP.
16
(Yellow)
▪ Dark: No HDMI signal.
▪ Illuminating: Transmitter and Receiver are in good connection status.
Link Signal Indicator
17 ▪ Flashing: Transmitter and Receiver are in poor connection status.
(Green)
▪ Dark: Transmitter and Receiver are not connected.
18
HDMI signal input port, connected to signal source device, supporting eARC/ARC amplifier.
HDMI IN
19
HDMI signal loopout port. It can choose to be a LOOP OUT or AUDIO ONLY port through the LOOP OUT/AUDIO ONLY switch.
HDMI OUT
20
Audio embedding/de-embedding port. It can be used for audio embedding/de-embedding through the L/R IN/OUT switch.
L/R IN/OUT
21
Optical output port.
SPDIF OUT
22
IR signal input port, connected to IR Receiver cable.
IR IN
23
IR signal output port, connected to IR Blaster cable.
IR OUT
24
RS-232 serial port, used for serial port command transmission.
RS-232
